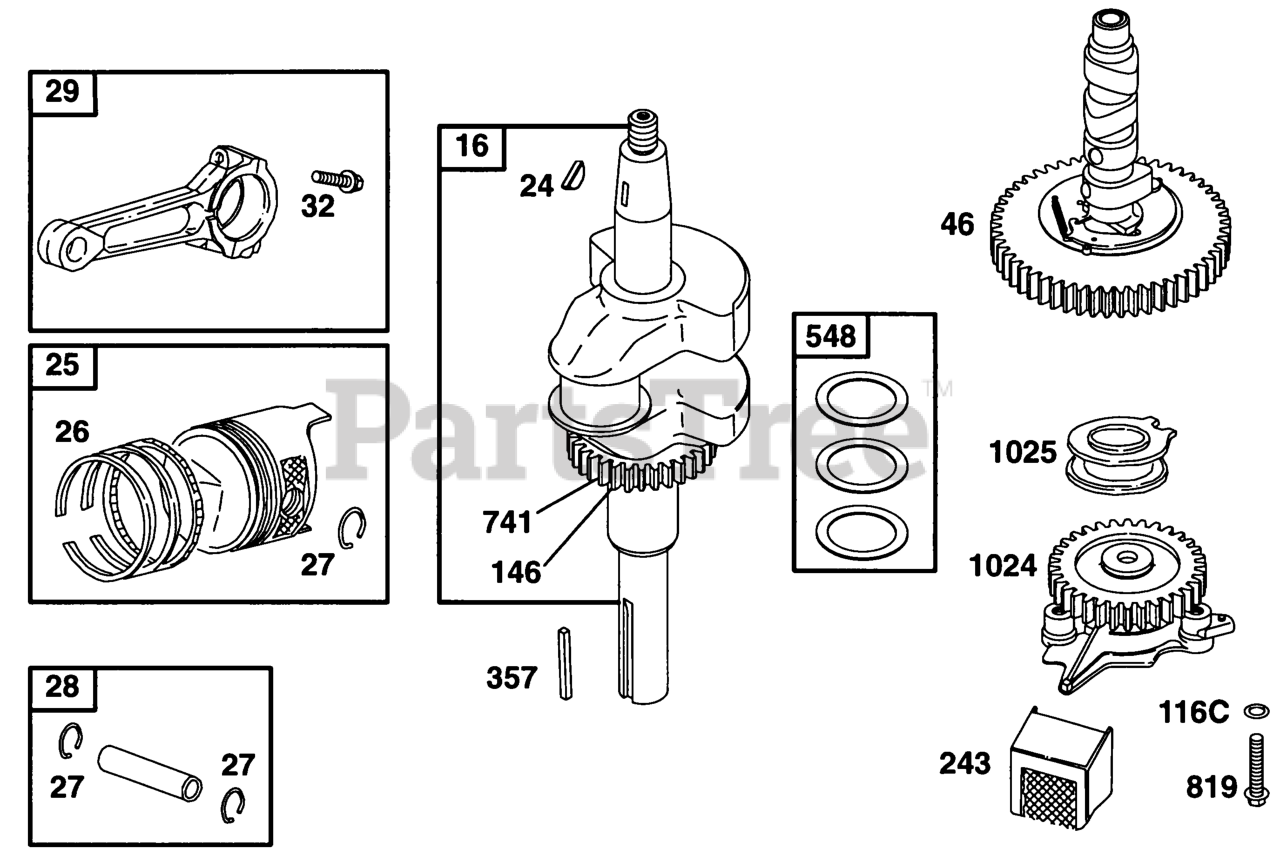

290777-0410-01 - Briggs & Stratton Vertical Engine Piston Grp, Cam, Crank Parts Diagram

Vertical Engine

Piston Grp, Cam, Crank Parts Diagram

  • Title

16

Briggs & Stratton 807586

Crankshaft

$245.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 805016

Key-Flywheel
(Superseded to 808095)

Note: Used Before Code Date 95030100

$13.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 806066

Key-Flywheel
(Superseded to 808095)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807619

Piston Assembly (Standard)
(Superseded to 843951)

$

$

Not available

25

Briggs & Stratton 807807

Piston Assy-010

$96.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807809

Piston Assy-020
(Superseded to 843958)

$

$

Not available

25

Briggs & Stratton 807811

Piston Assy-030

$95.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807620

Ring Set (Standard)
(Superseded to 843951)

$

$

Not available

26

Briggs & Stratton 807808

Ring Set-010

$34.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807810

Ring Set-020
(Superseded to 843958)

$

$

Not available

26

Briggs & Stratton 807812

Ring Set-030

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 805099

Lock-Piston Pin
(Superseded to 690683)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807621

Pin-Piston Std

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807803

Rod-Connecting (.020 Undersize)

$65.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900

Rod-Connecting (Standard)
(Superseded to 807900S)

$

$

Not available

32

Briggs & Stratton 805395

Screw-Hex.
(Superseded to 690698)

$7.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 807542

Gear-Cam
(Superseded to 845649)

$184.99

$

Usually ships in 2-12 days

0

116C

Briggs & Stratton 805058

O-Ring (Oil Pump)
(Superseded to 690681)

Note: Included in Gasket Set-See Ref. No. 358

$5.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 94196

Key-Woodruff
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

243

Briggs & Stratton 805964

Screen-Oil Pump
(Superseded to 690878)

$16.99

$

Usually ships in 2-12 days

0

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

548

Briggs & Stratton 807625

Washer Set

$19.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 805675

Gear-Timing
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 805057

Screw, Hex Head (Oil Pump)
(Superseded to 691492)

$3.99

$

In Stock, only 2 left!

0

1024

Briggs & Stratton 807546

Pump-Oil
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 805313

Spool-Governor
(Superseded to 690689)

$22.99

$

In Stock, only 2 left!

0
