290777-0410-01 - Briggs & Stratton Vertical Engine Electric Starter Parts Diagram

Vertical Engine

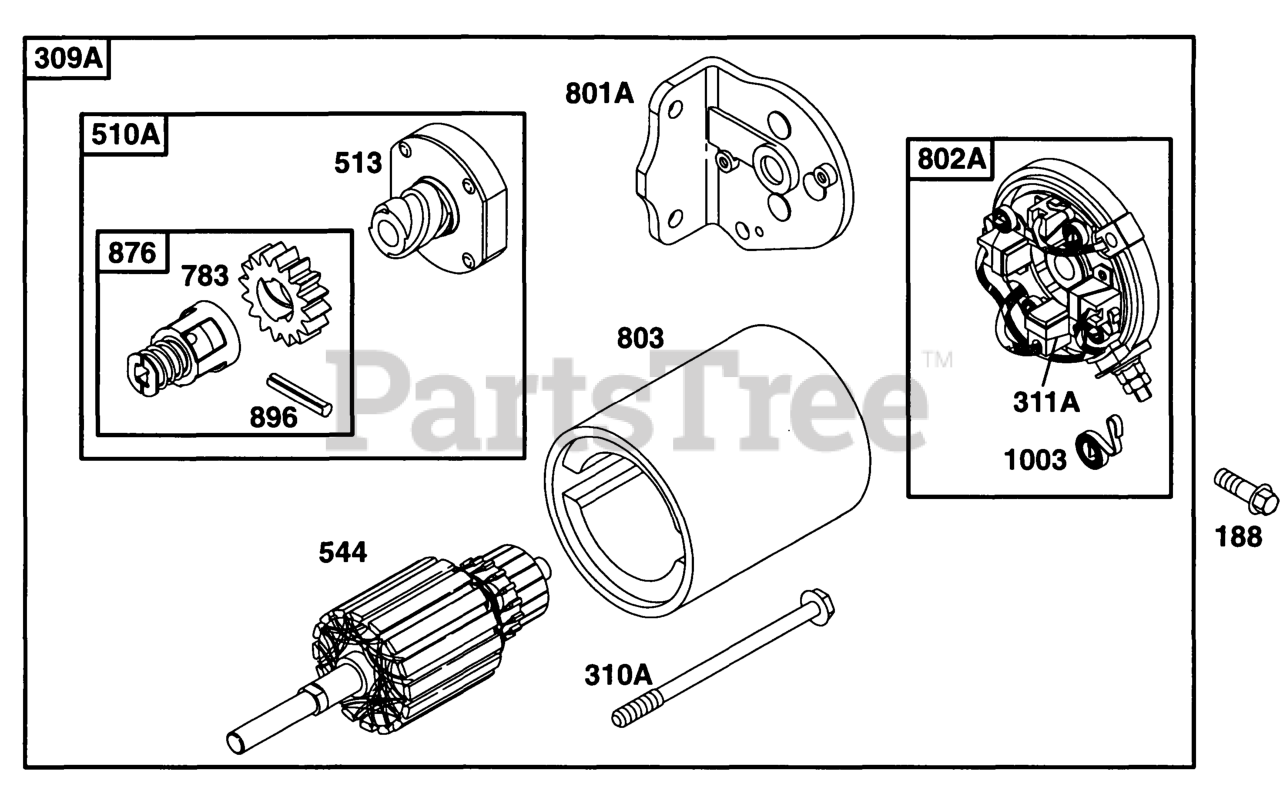

Electric Starter Parts Diagram

  • Title

188

Briggs & Stratton 805247

Screw, Hex Head Sem
(Superseded to 692062)

$3.49

$

In Stock, Qty 10

0

309A

Briggs & Stratton 494990

Motor/Drive Assy (For 4-3/8" Housing Length)
(Superseded to 795121)

$122.99

$

In Stock, Qty 20+

0

310A

Briggs & Stratton 94169

Screw, Hex Flange H (For 4-1/2" Housing Length)
(Superseded to 691263)

$

$

Not available

311A

Briggs & Stratton 490311

Brush Set (For 4-9/16" Housing Length)

$

$

Not available

510A

Briggs & Stratton 495878

Drive-Starter (For 4-3/8" Housing Length)
(Superseded to 696540)

$29.99

$

In Stock, Qty 19

0

513

Briggs & Stratton 398003

Clutch, Starter Ass
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

544

No Nomenclature

$

$

Not available

544

Briggs & Stratton 490309

Armature-Str

Note: (For 4-9/16" or 4-3/8" Housing Length)

$

$

Not available

783

Briggs & Stratton 280104

Pinion, Starter B&s Or United Tech. 12V
(Superseded to 695708)

$5.99

$

In Stock, only 1 left!

0

801A

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 494988

Cap-End (For 4-3/8" Housing Length)

$

$

Not available

802A

Briggs & Stratton 490310

Head, Brush End Kit

Note: (For 4-1/2"or 4-9/16" Housing Length)

$

$

Not available

803

No Nomenclature

$

$

Not available

803

Briggs & Stratton 398892

Housing-Starter (For 4-9/16" Housing Length)

$

$

Not available

803

Briggs & Stratton 494205

Housing-Starter

Note: (For 4-3/8" or 4-9/16" Housing Length)

$73.99

$

In Stock, only 1 left!

0

876

Briggs & Stratton 495877

Kit-Gear (For 4-3/8" Housing)
(Superseded to 696540)

$29.99

$

In Stock, Qty 19

0

896

Briggs & Stratton 94288

Pin, Spiral (Copper)
(Superseded to 691641)

$4.99

$

Usually ships in 2-12 days

0

1003

Briggs & Stratton 490316

Spring-Brush

Note: (For 4-1/2" or 4-9/16" Housing Length)

$

$

Not available
