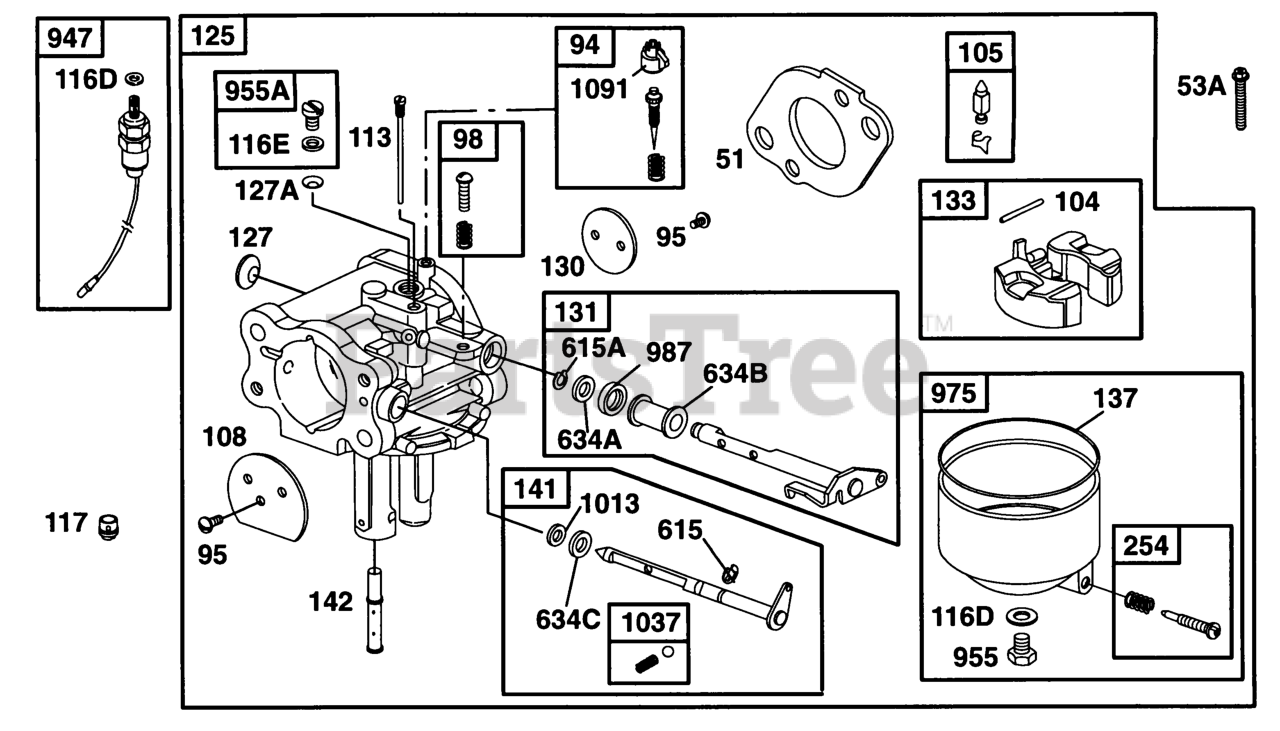

290777-0333-02 - Briggs & Stratton Vertical Engine Carburetor Assy, Parts Diagram

Vertical Engine

Carburetor Assy, Parts Diagram

  • Title

51

Briggs & Stratton 805700

Gasket-Intake Mounting
(Superseded to 691694)

Note: Included in Gasket Set-See Ref. No. 358

$2.99

$

In Stock, Qty 20+

0

53A

Briggs & Stratton 805360

Screw-Phillips Hex.
(Superseded to 690695)

$3.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 807707

Valve-Idle Adjustment

Note: Used Before Code Date 94102800

$39.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 808258

Valve-Idle Adjustment

Note: Included in Carburetor Kit-See Ref. No. 121

$32.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 805561

Screw-Round Head
(Superseded to 690718)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807705

Screw-Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 805586

Pin-Float Hinge
(Superseded to 690739)

Note: Included in Carburetor Kit-See Ref. No. 121

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 807706

Valve-Needle

Note: Included in Carburetor Kit-See Ref. No. 121

$41.99

$

In Stock, Qty 5

0

108

Briggs & Stratton 805562

Valve-Choke
(Superseded to 690729)

$8.49

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 805565

Tube-Jet
(Superseded to 806480)

Note: Used Before Code Date 93020100

$31.99

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 805777

Tube-Jet
(Superseded to 690755)

Note: Included in Carburetor Kit-See Ref. No. 121

$25.99

$

Usually ships in 2-12 days

0

116D

Briggs & Stratton 224531

Sealing Washer
(Superseded to 692343)

Note: Included in Carburetor Gasket Set-See Ref. No. 977. Included in Carburetor Kit-See Ref. No. 121

$7.99

$

Usually ships in 2-12 days

0

116E

No Nomenclature

Note: Included in Carburetor Gasket Set-See Ref. No. 977. Included in Carburetor Kit-See Ref. No. 121

$

$

Not available

117

Briggs & Stratton 805755

Jet-Main (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 807639

Carburetor

Note: Used Before Code Date 92040700

$

$

Not available

125

Briggs & Stratton 808255

Carburetor

$

$

Not available

127A

Briggs & Stratton 805571

Plug-Welch
(Superseded to 690731)

Note: Included in Carburetor Kit-See Ref. No. 121

$7.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 805570

Plug-Welch
(Superseded to 690731)

Note: Included in Carburetor Kit-See Ref. No. 121

$7.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 805572

Valve-Throttle
(Superseded to 690732)

$22.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 807709

Throttle-Shaft
(Superseded to 808323)

Note: Used Before Code Date 95010100

$49.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 808323

Throttle-Shaft

$49.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 807710

Float-Carburetor

$41.99

$

In Stock, only 1 left!

0

137

No Nomenclature

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-See Ref. No. 977

$

$

Not available

137

No Nomenclature

Note: Included in Carburetor Gasket Set-See Ref. No. 977. Included in Carburetor Kit-See Ref. No. 121

$

$

Not available

141

Briggs & Stratton 807711

Shaft-Choke

$32.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 807712

Nozzle-Carburetor

Note: Used Before Code Date 93020100

$37.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 807712

Nozzle-Carburetor

Note: Used Before Code Date 93020100

$37.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 807960

Nozzle-Carburetor

Note: Include(s): Standard Main Jet Included in Carburetor Kit-See Ref. No. 121

$36.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 807960

Nozzle-Carburetor

Note: Used After Code Date 93013100

$36.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 807713

Drain-Carburetor Bowl
(Superseded to 807715)

$100.99

$

In Stock, only 1 left!

0

615A

Briggs & Stratton 263080

Ring-Retaining
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

615A

Briggs & Stratton 805577

Ring, Retainer (Throttle Shaft)
(Superseded to 690736)

Note: Included in Carburetor Kit-See Ref. No. 121

$6.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 805578

Retainer-E Ring (Choke Shaft)

Note: Included in Carburetor Kit-See Ref. No. 121

$4.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 805952

Ring-Rewind Starter
(Superseded to 690875)

$4.99

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 805574

Spacer
(Superseded to 690733)

Note: Included in Carburetor Kit-See Ref. No. 121

$15.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 805576

Washer-Spacer
(Superseded to 690735)

Note: Included in Carburetor Kit-See Ref. No. 121

$4.99

$

Usually ships in 2-12 days

0

634C

Briggs & Stratton 805580

Washer-Spacer
(Superseded to 690737)

Note: Included in Carburetor Kit-See Ref. No. 121

$8.49

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 807744

Solenoid-Fuel

$

$

Not available

955A

Briggs & Stratton 807714

Plug-Carburetor

$7.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 805592

Screw-Bowl Mounting
(Superseded to 691511)

$10.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 807715

Bowl-Float

$100.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 805575

Seal-Throttle Shaft
(Superseded to 690734)

Note: Used Before Code Date 95010100

$15.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 805575

Seal-Throttle Shaft
(Superseded to 690734)

Note: Used Before Code Date 95010100

$15.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 806079

Seal-Throttle Shaft
(Superseded to 691548)

Note: Included in Carburetor Gasket Set-See Ref. No. 977. Included in Carburetor Kit-See Ref. No. 121

$5.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 806079

Seal-Throttle Shaft
(Superseded to 691548)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-See Ref. No. 977

$5.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 805581

Seal-Choke Shaft
(Superseded to 690738)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-See Ref. No. 977

$11.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 805581

Seal-Choke Shaft
(Superseded to 690738)

Note: Included in Carburetor Gasket Set-See Ref. No. 977. Included in Carburetor Kit-See Ref. No. 121

$11.99

$

Usually ships in 2-12 days

0

1037

Briggs & Stratton 807717

Ball-Choke Locator
(Superseded to 807711)

Note: Included in Carburetor Kit-See Ref. No. 121

$32.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 805858

Cap-Limiter
(Superseded to 691515)

Note: Included in Carburetor Kit-See Ref. No. 121

$8.99

$

Usually ships in 2-12 days

0
