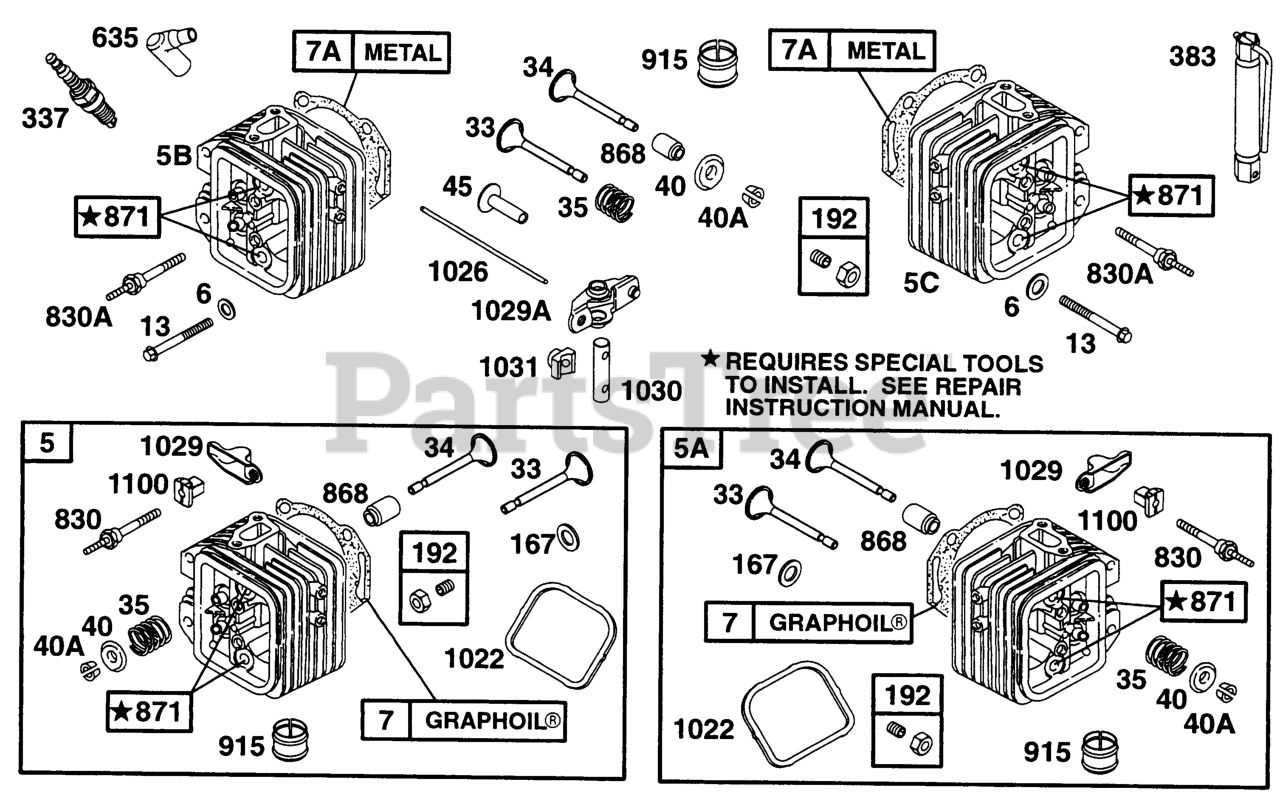

290442-0031-01 - Briggs & Stratton Horizontal Engine Head Assys Parts Diagram

Horizontal Engine

Head Assys Parts Diagram

  • Title

5B

Briggs & Stratton 807987

Head-Cylinder #1
(Superseded to 809200)

Note: Used Before Code Date 96040100

$226.99

$

In Stock, only 4 left!

0

5A

Briggs & Stratton 808382

Head-Cylinder #2
(Superseded to 809201)

$220.99

$

In Stock, Qty 5

0

5C

Briggs & Stratton 807988

Head-Cylinder #2
(Superseded to 809201)

Note: Used Before Code Date 96040100

$220.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 808381

Head-Cylinder #1
(Superseded to 809200)

$226.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 805193

Washer-Flat

Note: Used Before Code Date 94050100

$

$

Not available

7A

Briggs & Stratton 807986

Gasket-Cylinder Head

Note: Used Before Code Date 96040100

$26.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 806085

Gasket-Cylinder Head
(Superseded to 806085S)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$28.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 805097

Screw, Hex Washer H (86 Mm Long)
(Superseded to 692059)

$3.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 807681

Valve-Exhaust
(Superseded to 808687)

$43.99

$

In Stock, Qty 12

0

34

Briggs & Stratton 807680

Valve-Intake

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 805078

Spring-Valve
(Superseded to 808159)

Note: Used Before Code Date 94011800

$

$

Not available

35

Briggs & Stratton 805937

Spring-Valve
(Superseded to 692084)

$6.49

$

In Stock, Qty 11

0

40A

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, Qty 8

0

40

Briggs & Stratton 805092

Retainer-Valve
(Superseded to 692058)

$5.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 805420

Sealing Washer (Valve Cover)
(Superseded to 691766)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$6.49

$

In Stock, Qty 20+

0

192

Briggs & Stratton 807623

Screw-Valve Adj.

$11.99

$

In Stock, only 4 left!

0

337

Briggs & Stratton 491055

Spark Plug,resistor (Req. 3)
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 805529

Boot-Spark Plug
(Superseded to 692076)

$5.49

$

In Stock, Qty 20+

0

830A

Briggs & Stratton 805343

Stud-Rocker Arm

Note: Used Before Code Date 96040100

$

$

Not available

830

Briggs & Stratton 806037

Stud-Rocker Arm
(Superseded to 809157)

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 805094

Seal-Valve
(Superseded to 691963)

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 805084

Bushing-Guide
(Superseded to 692057)

$12.99

$

In Stock, only 2 left!

0

915

Briggs & Stratton 805083

Liner-Port
(Superseded to 691493)

$12.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039

Gasket-Rocker Cover
(Superseded to 806039S)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$7.49

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 805352

Pushrod (Intake, Steel)
(Superseded to 691836)

$12.99

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 805617

Pushrod (Exhaust, Aluminum)
(Superseded to 691758)

$11.99

$

In Stock, Qty 20+

0

1029A

Briggs & Stratton 808096

Arm-Rocker

Note: Used After Code Date 96011700

$

$

Not available

1029A

Briggs & Stratton 808159

Arm-Rocker

Note: Used Before Code Date 94011800

$

$

Not available

1029

Briggs & Stratton 806036

Arm-Rocker
(Superseded to 807323)

Note: Used After Code Date 96033100

$12.99

$

In Stock, only 2 left!

0

1030

Briggs & Stratton 805342

Shaft-Rocker Arm
(Superseded to 690693)

$13.99

$

Usually ships in 2-12 days

0

1031

Briggs & Stratton 805341

Support-Rocker Arm

$

$

Not available

1100

Briggs & Stratton 806038

Pivot-Rocker Arm
(Superseded to 791959)

$6.99

$

In Stock, only 2 left!

0
