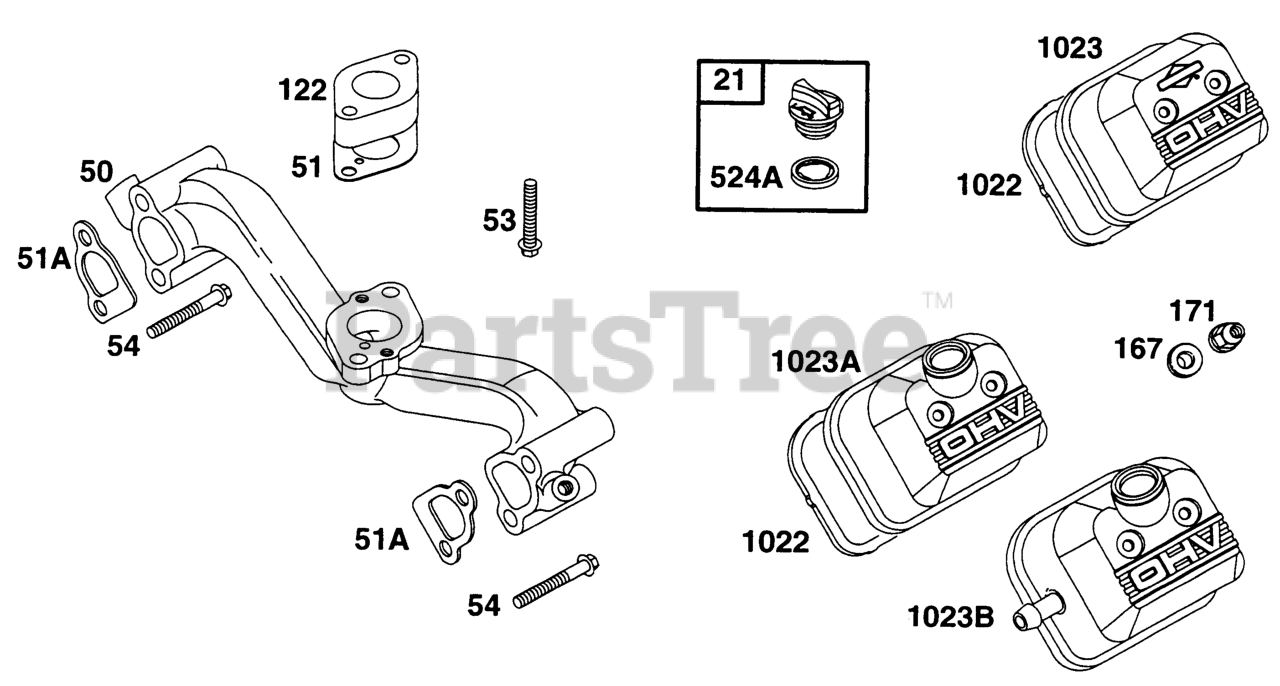

290442-0023-02 - Briggs & Stratton Horizontal Engine Manifold, Rocker Covers Parts Diagram

Horizontal Engine

Manifold, Rocker Covers Parts Diagram

  • Title

21

Briggs & Stratton 491832

Plug-Oil Fill
(Superseded to 809500)

$10.99

$

In Stock, Qty 15

0

50

Briggs & Stratton 805409

Manifold-Intake
(Superseded to 690754)

Note: Used Before Code Date 92050100

$131.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 805772

Manifold-Intake
(Superseded to 690754)

$131.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 805023

Gasket, Intake Mani (Manifold)
(Superseded to 692035)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$3.49

$

In Stock, Qty 17

0

51

Briggs & Stratton 805700

Gasket-Intake Mounting
(Superseded to 691694)

Note: Included in Gasket Set-See Ref. 358

$2.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 805466

Screw, Hex Head Cap (Carb. To Manifold)
(Superseded to 690711)

$6.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 805006

Screw, Hex Head Cap (Intake Manifold)
(Superseded to 690676)

$4.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 805328

Spacer-Carburetor
(Superseded to 690691)

$13.99

$

In Stock, only 3 left!

0

167

Briggs & Stratton 805420

Sealing Washer (Valve Cover)
(Superseded to 691766)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$6.49

$

In Stock, Qty 20+

0

171

Briggs & Stratton 805019

Nut, Nylock (Rocker Cover)
(Superseded to 692055)

Note: Included in Valve Overhaul Kit-See Ref. 1033

$3.99

$

In Stock, Qty 9

0

524A

Briggs & Stratton 271983

Seal-Filler Tube
(Superseded to 809500)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$10.99

$

In Stock, Qty 15

0

1022

Briggs & Stratton 806039

Gasket-Rocker Cover
(Superseded to 806039S)

Note: Included in Gasket Set-See Ref. 358. Included in Valve Overhaul Kit-See Ref. 1033

$7.49

$

In Stock, Qty 20+

0

1023A

Briggs & Stratton 805842

Cover-Rocker
(Superseded to 843749)

$39.99

$

Usually ships in 2-12 days

0

1023B

Briggs & Stratton 808032

Cover, Valve Assy (Used On Cyl. #1 Fuel Pump Applications)
(Superseded to 690910)

$45.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 805100

Cover-Rocker
(Superseded to 691494)

$17.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 807665

Cover, Valve Assy (Cyl. #1 With Fuel Pump)
(Superseded to 691558)

$20.99

$

In Stock, only 1 left!

0
