2900 (5901407) - Massey Ferguson 48" Zero-Turn Mower 48" Mower Deck - Housing, Covers, Spindles & Blades (5302644) Parts Diagram

48" Zero-Turn Mower

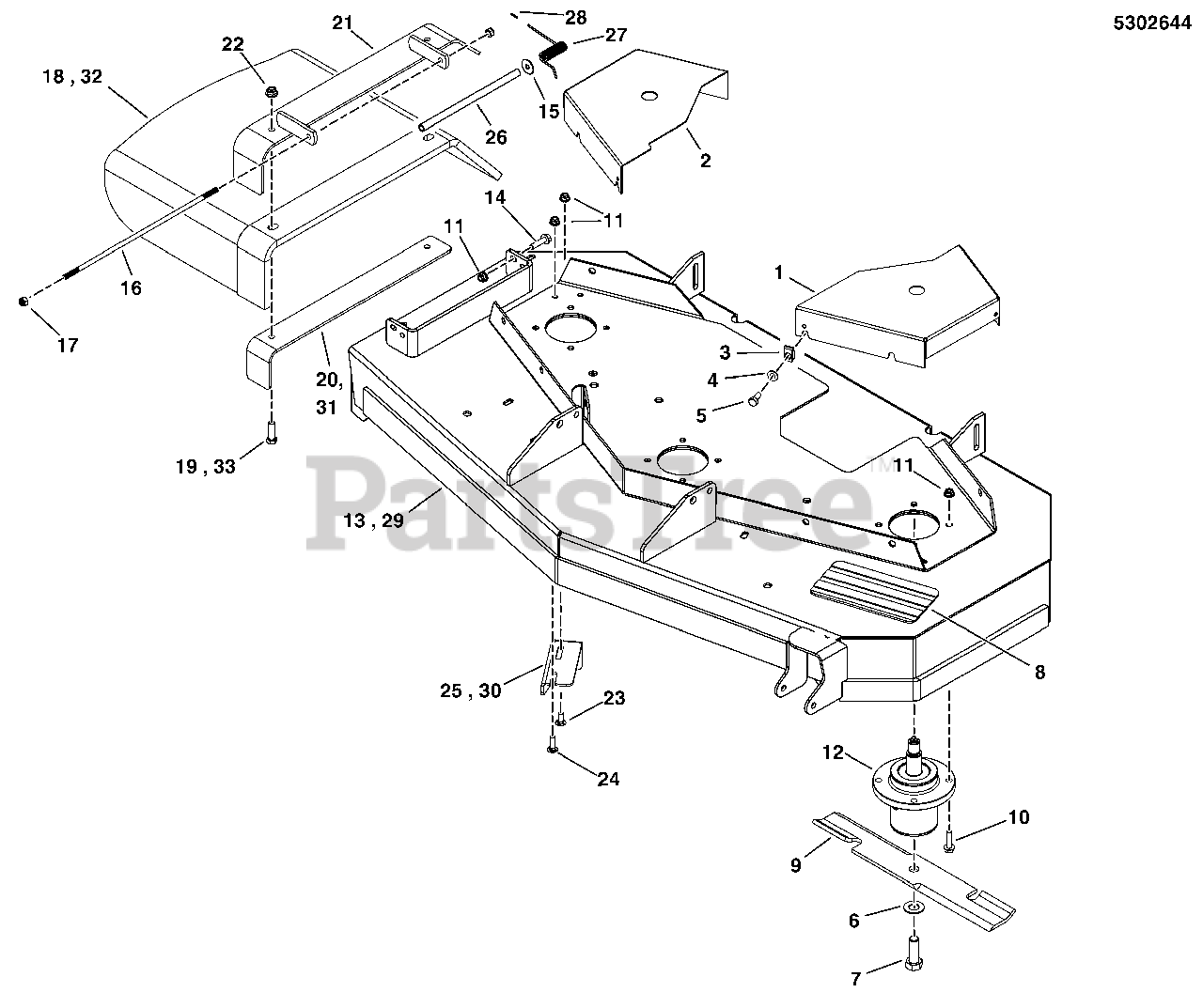

48" Mower Deck - Housing, Covers, Spindles & Blades (5302644) Parts Diagram

  • Title

1

Simplicity 5403531DYP

GUARD, 48" MOWER DECK, LH

$62.99

$

Usually ships in 2-12 days

0

2

Simplicity 5403532DYP

GUARD, 48" MOWER DECK, RH

$41.99

$

Usually ships in 2-12 days

0

3

Simplicity 5022308SM

BODY CLIP 5/16-18 X 1/2" DEEP

$5.99

$

In Stock, only 2 left!

0

4

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 5025477SM

WASHER, 5/8 GRADE 8, YZ

$3.99

$

In Stock, Qty 9

0

7

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4 GR8
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

In Stock, only 1 left!

0

9

Simplicity 5101986SYP

BLADE SET, 48" DECK

$

$

Not available

10

Simplicity 5023156SM

BOLT, 5/16-18 X 1-1/4" FLANGE

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

13

Simplicity 5600507YP

DECK SHELL W/ DECALS 48" DECK, 2900 (5407965D)

Note: (S/N: 2016156895 & Below)

$2222.99

$

Usually ships in 2-12 days

0

14

Simplicity 703354

SCREW, 5/16-18

Note: (80003531)

$5.49

$

In Stock, Qty 14

0

15

Simplicity 5025164SM

WASHER, 5/16 FENDER

Note: (S/N: 2016558252 & Below)

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 5042555SM

ROD, BRAKE LINKAGE

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025045SM

NUT 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

18

Simplicity 5402404SM

CHUTE, RUBBER, BENT

Note: (S/N: 2017094785 & Below)

$170.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5 YZ

Note: (S/N: 2017094785 & Below)

$3.99

$

In Stock, Qty 12

0

20

Simplicity 5402362AYP

SUPPORT, DISCHARGE CHUTE, 48/52 - BLK

Note: (S/N: 2017094785 & Below)

$43.99

$

In Stock, only 4 left!

0

21

Simplicity 5413404AYP

WELD, FRAME CHUTE, 44/48/52 - BLK

$68.99

$

In Stock, only 1 left!

0

22

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5025145X6SM

BOLT, 5/16"-18 CARRIAGE, 3/4"

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025145X8SM

BOLT, 5/16"-18 CARRIAGE, 1"

$3.99

$

In Stock, Qty 9

0

25

Simplicity 5401271AYP

PLATE, DEFLECTOR - BLK

Note: (S/N: 2016156895 & Below)

$31.99

$

Usually ships in 2-12 days

0

26

Simplicity 5050086X8SM

TUBE, 1/2 X 3/8 X 8.00LG BLACK POLY

Note: (S/N: 2016558252 & Below)

$8.99

$

Usually ships in 2-12 days

0

27

Simplicity 5023385SM

SPRING, TORSION

Note: (S/N: 2016558252 & Below)

$8.49

$

Usually ships in 2-12 days

0

28

Simplicity 5023489SM

CAP, PROTECTOR, .120 ID

Note: (S/N: 2016558252 & Below)

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 5600631YP

DECK SHELL W/ DECALS, 48" DECK, 2900 (5409884D)

Note: (S/N: 2016156896 & Above)

$1935.99

$

Usually ships in 2-12 days

0

30

Simplicity 5401344AYP

PLATE, DEFLECTOR - BLK

Note: (S/N: 2016156896 & Above)

$27.99

$

Usually ships in 2-12 days

0

31

Simplicity 5413401AYP

SUPPORT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017094786 & Above)

$32.99

$

Usually ships in 2-12 days

0

32

Simplicity 5413498YP

CHUTE, RUBBER DISCHARGE (5104441)

Note: (S/N: 2017094786 & Above)

$176.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025146X12YP

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ

Note: (S/N: 2017094786 & Above)

$3.99

$

Usually ships in 2-12 days

0
