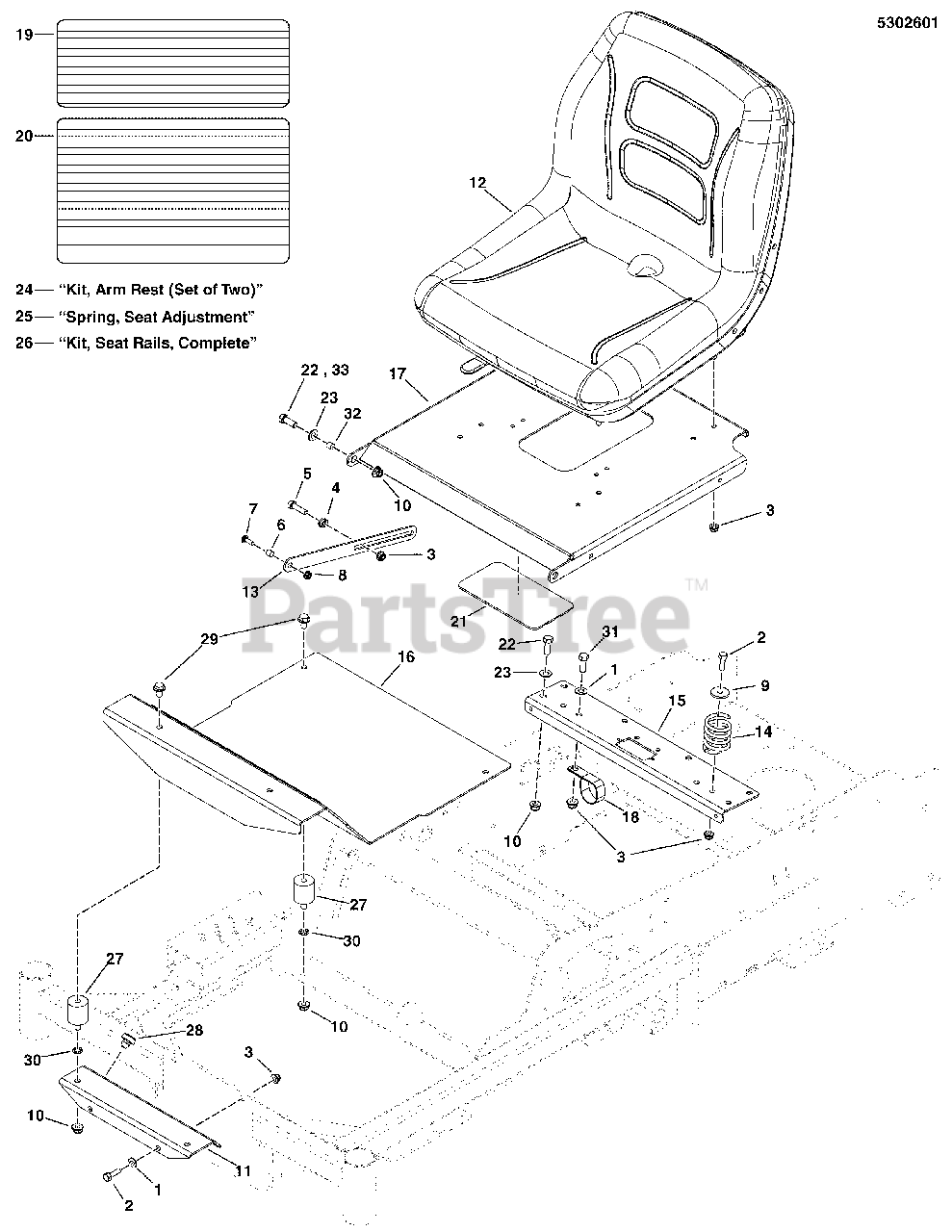

2900 (5900529) - Massey Ferguson 48" Zero-Turn Mower Seat Mount & Floor Group - S/N: 2016499706 & Below (5302601) Parts Diagram

48" Zero-Turn Mower

Seat Mount & Floor Group - S/N: 2016499706 & Below (5302601) Parts Diagram

  • Title

1

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

2

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

3

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

$3.49

$

In Stock, only 4 left!

0

5

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE YZ

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5021878YP

SPACER, .25 X .37 X .25

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 703575

BOLT, 1/4-20X.750, SQ

Note: (80003518)

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

10

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5403706DYP

PLATE, SIO FLOOR MOUNT - RED

$26.99

$

Usually ships in 2-12 days

0

12

Simplicity 5100909SM

SEAT, NO ARM REST

$551.99

$

Usually ships in 2-12 days

0

13

Simplicity 5403015AYP

SEAT PLATE, STOP - BLK

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 5402859DYP

MOUNT, SEAT STOP - RED

$32.99

$

Usually ships in 2-12 days

0

16

Simplicity 5407829DYP

PLATE, FOOT REST - RED

$159.99

$

Usually ships in 2-12 days

0

17

Simplicity 5407857DYP

WELD, PLATE, SEAT MOUNT - RED

$205.99

$

Usually ships in 2-12 days

0

18

Simplicity 5023263SM

VINYL CLAMP

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5101374YP

SAFETY WALK, FLOOR REST, 16.00 X 6.00

$18.99

$

In Stock, only 1 left!

0

20

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

21

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

In Stock, only 1 left!

0

22

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, Qty 6

0

23

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

24

Simplicity 1686907SM

ARM REST (SET OF TWO) (SV)

$139.99

$

Usually ships in 2-12 days

0

25

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

26

Simplicity 5061599X1SM

KIT, SEAT RAILS (COMPLETE)(SV)

$192.99

$

Usually ships in 2-12 days

0

27

Simplicity 35097GS

MNT, VBRTN, 30 DURO

$16.99

$

In Stock, only 4 left!

0

28

Simplicity 197546GS

MNT, VBRTN, RBBR

$7.99

$

In Stock, only 2 left!

0

29

Simplicity 5025481SM

BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

$3.49

$

In Stock, only 4 left!

0

30

Simplicity 5025480SM

WASHER, 3/8" ID, INTERNAL TOOTH

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 4 left!

0

32

Simplicity 5103071YP

FLANGED BUSHING, 3/8 ID X .63 OD X .55 LG

$11.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0
