290-263-081 - Troy-Bilt Power Rake General Assembly Parts Diagram

Power Rake

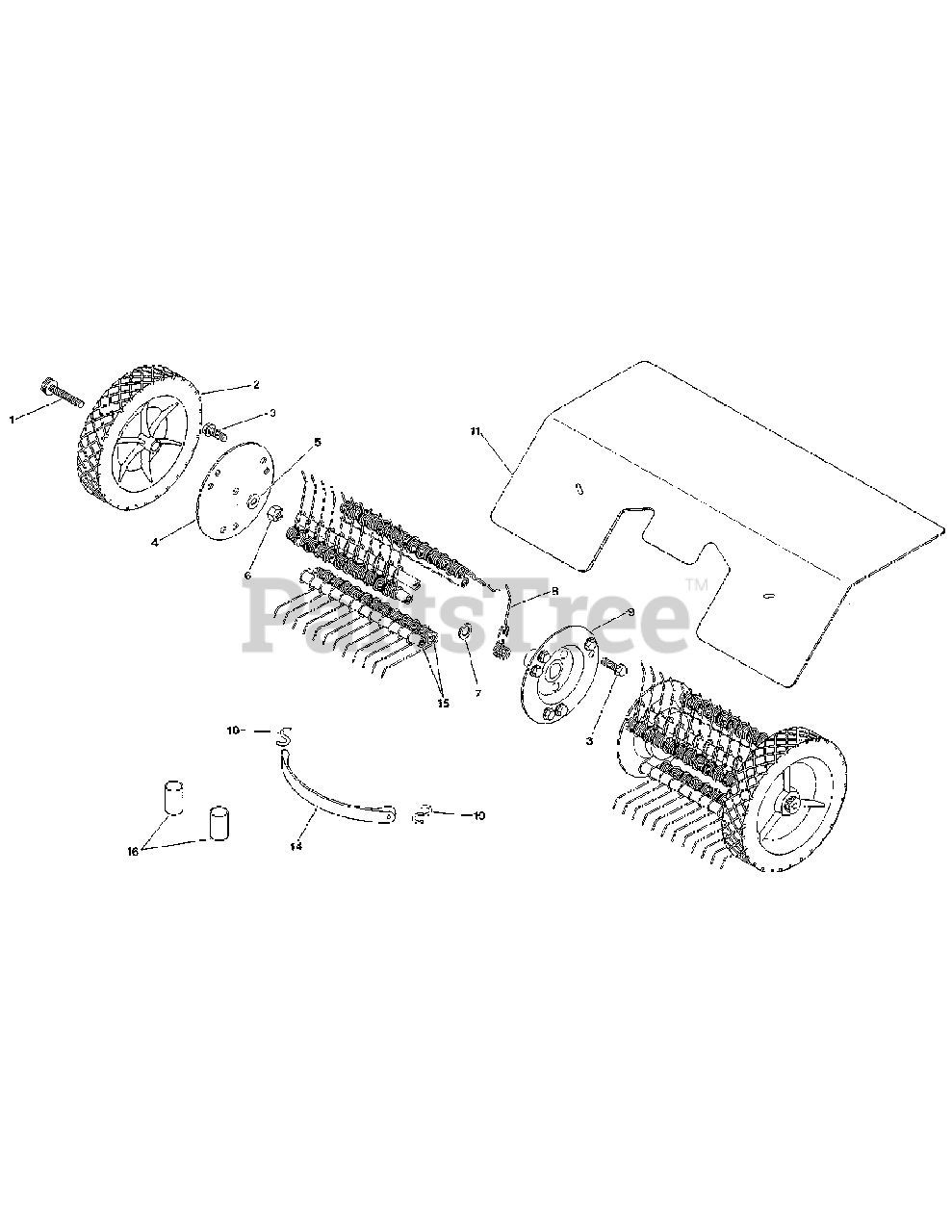

General Assembly Parts Diagram

  • Title

1

MTD GW-H213909

Bolt, Socket Hd., 3/8-16 x 1-1/2

$

$

Not available

2

MTD GW-H213911

Wheel/Tire Assembly

$

$

Not available

3

MTD GW-H213910

Whiz Bolt, 5/16-18 x 3/4

$

$

Not available

4

Troy-Bilt GW-H213907

End Cap - outer

$

$

Currently unavailable

5

Troy-Bilt 736-0169

Lockwasher, 3/8

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

7

MTD GW-H200830

Washer, Flat, 1/2

$

$

Not available

8

Troy-Bilt GW-H213906S

Tine Kit (contains 5 spring tines)

$

$

Currently unavailable

9

Troy-Bilt GW-H213908

End Cap - inner

$

$

Currently unavailable

10

MTD GW-H214186

"S" Hook

$

$

Not available

11

MTD 1915063

Debris Shield

$

$

Not available

MTD 1983094

Decal - Caution

Note: not shown

$

$

Not available

MTD 1983095

Decal - Warning

Note: not shown

$

$

Not available

14

Troy-Bilt GW-H214187

Strap, Debris Shield

$

$

Currently unavailable

15

MTD GW-H213904

Bar, tine retaining/tine attachment

$

$

Not available

18

Troy-Bilt 1983648

Spacer

$6.49

$

Usually ships in 3-6 days

0
