290 (190-290-100) - Cub Cadet 54" Mower Deck Deck Wheels And Rollers Parts Diagram

54" Mower Deck

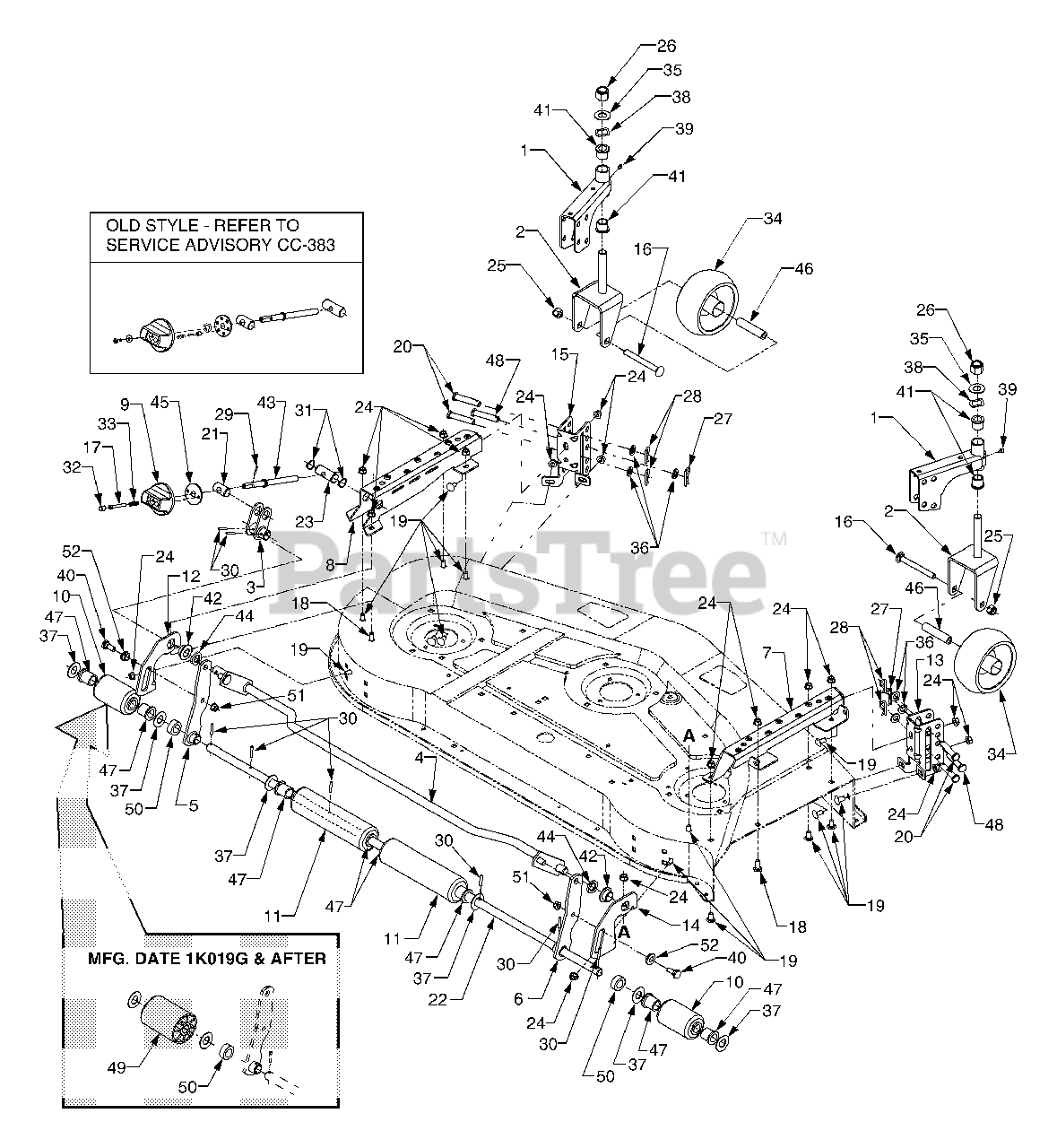

Deck Wheels And Rollers Parts Diagram

  • Title

1

Cub Cadet 603-0611-0716

Assembly, Arm - Caster Wheel

$117.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0612-0716

Assembly, Yoke - Caster Wheel
(Superseded to 603-0612-4021)

$77.99

$

In Stock, only 2 left!

0

3

Cub Cadet 603-0614

Assembly, Collar

Variations

Cub Cadet 603-0614-0498

USE 603-0614-0716 COLLAR-HEIG - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0614-0716

COLLAR-HEIGHT ADJUSTMENT - CUB YELLOW-99 (0716)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0614-0637

COLLAR-HEIGHT ADJUSTMENT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0614-4021

COLLAR-HEIGHT ADJUSTMENT - CUB YELLOW 2 (4021)

$

$

Not available

$71.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0617

Assembly, Arm

Variations

Cub Cadet 603-0617-0637

USE 603-0617 ROD ASSY-HEIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-0618

Assembly, Pivot Link (L.H.)

Note: Mfg. Date 1J319G & Before

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0777

Assembly, Pivot Link (L.H.)
(Superseded to 903-0777)

Note: Mfg. Date 1K019G & After

$124.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0619

Assembly, Pivot Link (R.H.)
(Superseded to 903-0619)

Note: Mfg. Date 1J319G & Before

$104.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0778

Assembly, Pivot Link (R.H.)

Note: Mfg. Date 1K019G & After

$

$

Not available

7

Cub Cadet 603-0631-0716

Assembly, Brace (R.H.)

$

$

Not available

8

Cub Cadet 603-0632-0716

Assembly, Brace (L.H.)

$167.99

$

In Stock, only 1 left!

0

9

Cub Cadet 603-0693

Assembly, Knob w/detent pin

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20466

Label, Height Adjust

$

$

Not available

10

Cub Cadet 631-3015

Roller, (Short)

Note: Mfg. Date 1J319G & Before; (Incl. Ref. #47 [(2])

$61.99

$

In Stock, only 1 left!

0

11

Cub Cadet 631-3016

Roller, (Long)

Note: Mfg. Date 1J319G & Before; (Incl. Ref. #47 [(2])

$73.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-3213

Bracket, Guide (L.H.)

Note: Mfg. Date 1J319G & Before

$

$

Not available

Cub Cadet 703-3520

Bracket, Guide (L.H.)

Note: Mfg. Date 1K019G & After

$41.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-3216-0716

Bracket, Height Adjuster (R.H.)
(Superseded to 703-3216-4021)

$68.99

$

In Stock, only 3 left!

0

14

Cub Cadet 703-3239

Bracket Guide (R.H.)

Note: Mfg. Date 1J319G & Before

$

$

Not available

Cub Cadet 703-3519

Bracket Guide (R.H.)

Note: Mfg. Date 1K019G & After

$

$

Not available

15

Cub Cadet 703-3295-0716

Bracket, Height Adjuster (L.H.)

$73.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-1638

Bolt, Carriage 1/2-13 x 4.5"

$10.99

$

In Stock, Qty 10

0

17

Cub Cadet 710-1800

Screw, Socket Hd Lock 1/4-20 x 2.0

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-3168

Bolt, Carriage 3/8-16 x 1"

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3178

Bolt, Carriage 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 711-0761

Pin, Clevis

$19.99

$

In Stock, only 4 left!

0

21

Cub Cadet 711-1294

Ferrule, Adjustable

$49.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-1298

Axle, Roller

Note: Mfg. Date 1J319G & Before

$

$

Not available

Cub Cadet 711-1426

Axle, Roller

Note: Mfg. Date 1K019G & After

$170.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-1403

Ferrule, Adjust. Thrd, 1/2-13

$49.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-0431

Nut, Flanged Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3083

Nut, Hex Lock 1/2-13

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-3107

Nut, Hex Lock 3/4-10

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

28

Cub Cadet 714-0149B

Pin, Internal Cotter

$4.49

$

In Stock, Qty 18

0

29

Cub Cadet 715-0129

Pin, Spirol, .125 x .812

$4.99

$

In Stock, only 1 left!

0

30

Cub Cadet 715-0150

Pin, Roll 3/16" Dia. x 1.1"

$4.49

$

In Stock, Qty 15

0

31

Cub Cadet 716-0111

Ring, External Retaining

$6.99

$

In Stock, only 4 left!

0

32

Cub Cadet 731-3287

Cap, Tube

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-0437

Spring, Compression

$10.99

$

In Stock, only 1 left!

0

34

Cub Cadet 734-3195

Caster, Wheel w/Bearings
(Superseded to 734-3195A)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3090

Bearing, Flange

$17.99

$

In Stock, Qty 5

0

35

Cub Cadet 736-0188

Washer, Flat .76" I.D.

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0192

Washer, Flat .535" I.D.

$4.49

$

In Stock, Qty 18

0

37

Cub Cadet 736-0316

Washer, Flat .78" I.D.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0526

Washer, Wave .88" I.D.

$6.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0380

Screw, Shoulder

Note: Mfg. Date 1J319G & Before

$7.99

$

In Stock, only 1 left!

0

Cub Cadet 738-0138

Screw, Shoulder
(Superseded to 738-0138A)

Note: Mfg. Date 1K019G & After

$6.99

$

In Stock, only 2 left!

0

41

Cub Cadet 741-0339

Bearing, Flange .75" I.D.
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

42

Cub Cadet 741-0376

Bearing, Flange .75" I.D.
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 7

0

43

Cub Cadet 747-3409

Screw, Adjustable

$108.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 748-0160

Spacer, .75 ID x 1.25 OD x .175
(Superseded to 948-0160)

$6.99

$

In Stock, Qty 9

0

45

Cub Cadet 748-3092

Hub, Spring Detent

$29.99

$

In Stock, only 1 left!

0

46

Cub Cadet 750-3222

Axle, Caster Wheel

$27.99

$

In Stock, Qty 6

0

47

Cub Cadet 741-0547

Bearing, Flange .75" I.D. Powdered Metal

Note: (Used Mfg. Date 1H318G & Before)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0516

Bearing, Flange .75" I.D. Nylatron
(Superseded to 741-0516B)

Note: (Used Mfg. Date 11018G & After)

$6.49

$

In Stock, Qty 20+

0

48

Cub Cadet 711-0761

Pin, Clevis

Note: (Mfg. Date 1I018G & After)

$19.99

$

In Stock, only 4 left!

0

49

Cub Cadet 731-3305

Roller, Deck

Note: Mfg. Date 1K019G & After

$32.99

$

In Stock, Qty 20+

0

50

Cub Cadet 750-0456

Spacer, .790 ID x .347 Lg

Note: Mfg. Date 1K019G & After

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0431

Nut, Flanged Nut 3/8-16
(Superseded to 912-0431)

Note: Mfg. Date 1J319G & Before

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

Note: Mfg. Date 1K019G & After

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 748-3097

Bushing, Sq. Hgt Adjust.

Note: Mfg. Date 1K019G & After

$10.99

$

In Stock, only 4 left!

0
