28W777-0122-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Fuel Lines, Controls, Springs, Links Parts Diagram

Vertical Engine

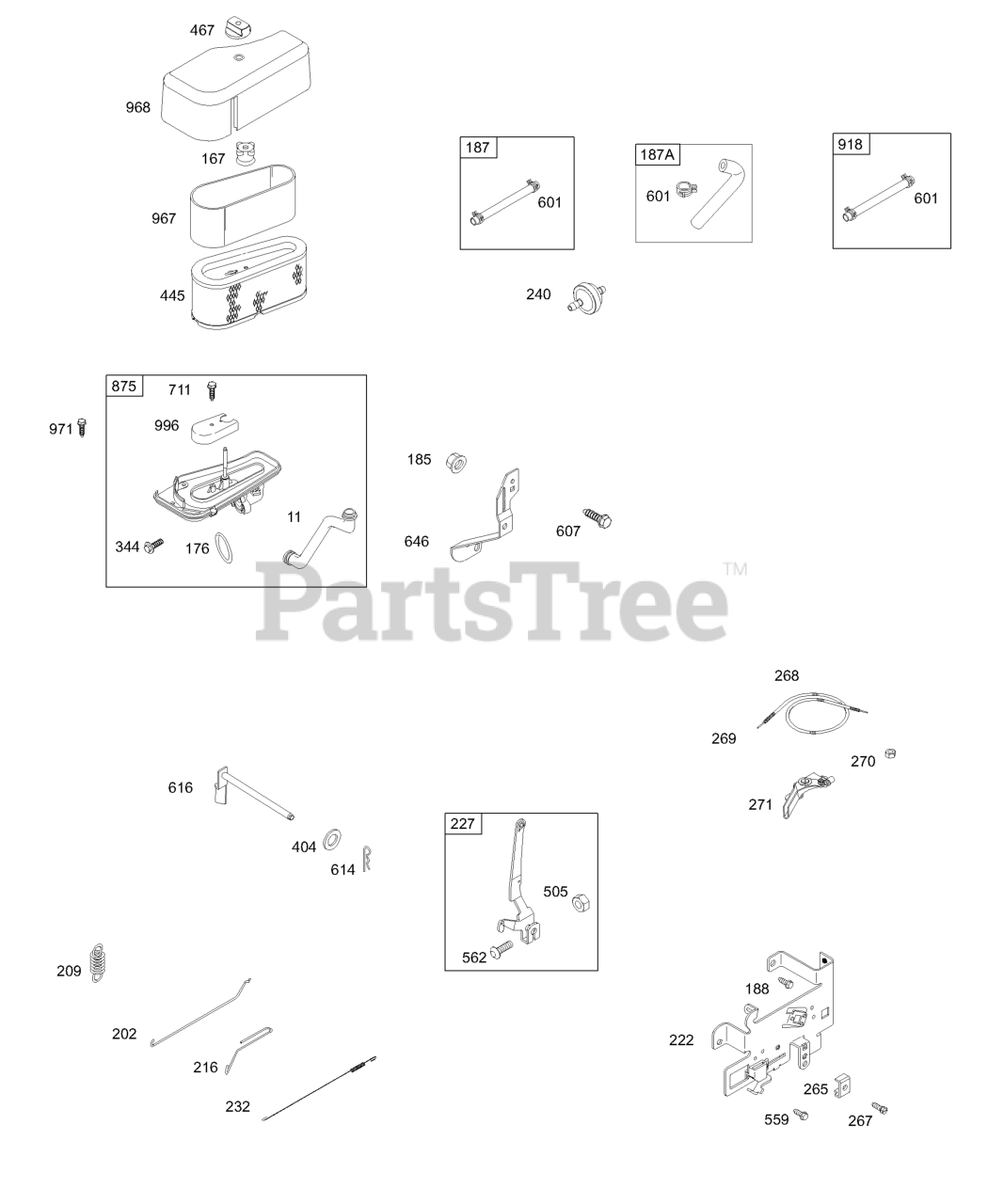

Air Cleaner, Fuel Lines, Controls, Springs, Links Parts Diagram

  • Title

11

Briggs & Stratton 691328

Tube-Breather

$15.99

$

In Stock, only 1 left!

0

167

Briggs & Stratton 692297

Seal-Air Cleaner Nut

$10.99

$

Usually ships in 2-12 days

0

176

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

185

Briggs & Stratton 690958

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, only 3 left!

0

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 697907

Line-Fuel
(Superseded to 791805)

Note: (Formed)(9-5/8 Inches Long)

$24.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 697098

Line-Fuel
(Superseded to 791805)

Note: (Formed)(3-1/2 Inches Long)(Cut To Required Length)

$24.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090S

Filter-Fuel

$

$

Not available

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 690804

Screw

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 693675

Screw

Note: (Cable Clamp) (Air Cleaner Base)

$3.99

$

In Stock, only 1 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

445

Briggs & Stratton 496894S

Filter-Air Cleaner Cartridge

$19.99

$

In Stock, only 3 left!

0

467

Briggs & Stratton 691668

Knob-Air Cleaner

$5.49

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

559

Briggs & Stratton 690661

SCREW

Note: (Remote Choke Stop)

$3.49

$

In Stock, Qty 8

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

607

Briggs & Stratton 691693

SCREW

Note: (Air Cleaner Brace)

$3.99

$

In Stock, Qty 8

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

646

Briggs & Stratton 690460

Brace-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

711

Briggs & Stratton 690703

Screw

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 696129

Base-Air Cleaner

Note: (Plastic)

$

$

Not available

967

Briggs & Stratton 272403S

Filter-Pre Cleaner

$3.99

$

In Stock, Qty 18

0

968

Briggs & Stratton 692139

Cover-Air Cleaner

$31.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692129

Screw

Note: (Air Cleaner Base to Carburetor)

$5.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 690678

Shield-Carburetor

$10.99

$

In Stock, only 1 left!

0
