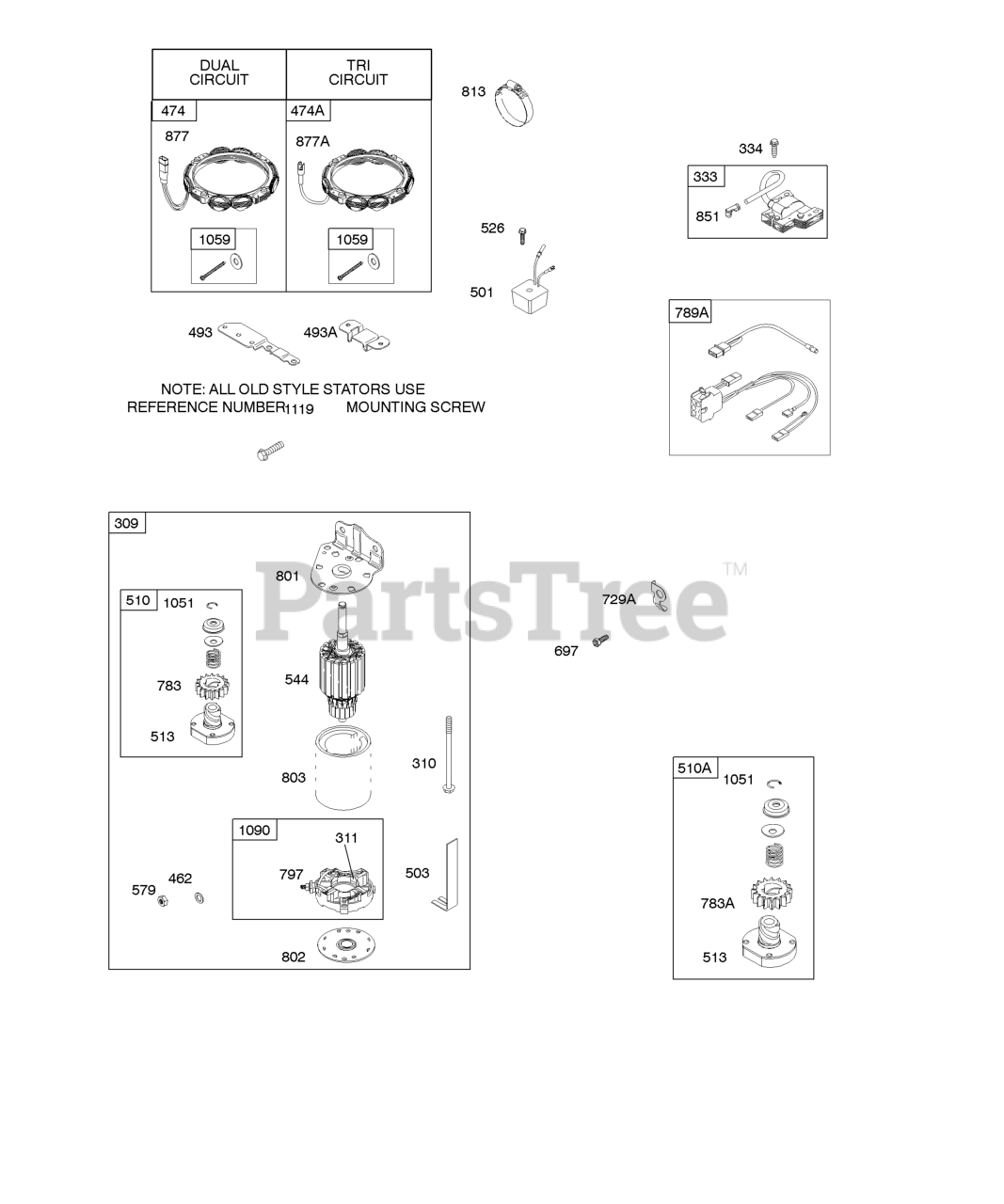

28U707-1129-E1 - Briggs & Stratton Vertical Engine Electric Starter, Alternator Parts Diagram

Vertical Engine

Electric Starter, Alternator Parts Diagram

  • Title

309

Briggs & Stratton 497595

Motor-Starter

Note: (3 5/8" Housing Length For Aluminum Ring Gear Only)

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

Note: (3 5/8" Housing Length For Steel Ring Gear Only)

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 8

0

474A

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (Tri Circuit)

$102.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 694475

Bracket-Mounting

Note: (Regulator)

$24.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 691177

BRACKET, Mounting

Note: (Regulator)

$24.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

$64.99

$

In Stock, only 2 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

Note: (Used With Steel Ring Gear)

$131.99

$

In Stock, Qty 20+

0

510A

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

Note: (Used With Aluminum And Plastic Ring Gears)

$90.99

$

In Stock, Qty 9

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 694476

Screw

Note: (Regulator)

$3.99

$

In Stock, only 1 left!

0

544

Briggs & Stratton 692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729A

Briggs & Stratton 691224

CLIP, Wire

Note: Used Before Code Date 99070600

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (Steel Ring Gear Only)

$26.99

$

In Stock, only 1 left!

0

783A

Briggs & Stratton 695708

Gear-Pinion

Note: (Aluminum Ring Gear Only)

$6.99

$

In Stock, only 3 left!

0

789A

Briggs & Stratton 698329

HARNESS, Wiring

$36.99

$

In Stock, Qty 5

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer) (Serrated)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter

Note: (No Longer Available)

$

$

Not available

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393537

Wire/Connector-Alternator

Note: (Tri Circuit)

$

$

Not available

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
