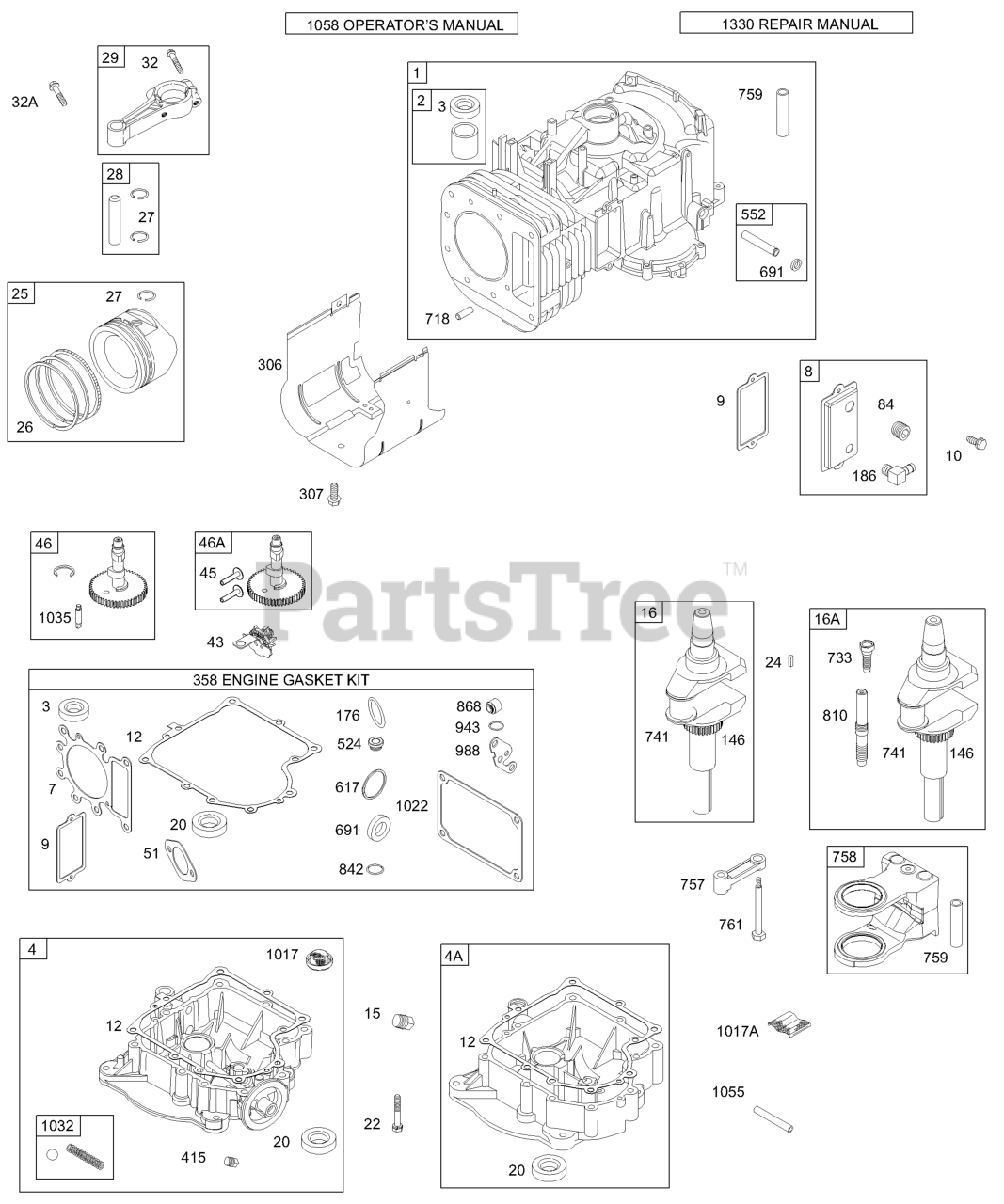

28S777-1151-E1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump, Crankshaft, Cylinder, Piston/Rings, Connecting Rod Parts Diagram

Vertical Engine

Crankcase Cover/Sump, Crankshaft, Cylinder, Piston/Rings, Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 496412

Cylinder Assembly

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 693582

Sump-Engine

Note: Used After Code Date 98063000

$288.99

$

Usually ships in 2-12 days

0

4A

Briggs & Stratton 496742

Sump-Engine

Note: Used Before Code Date 98070100

$200.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 273280S

GASKET, Cylinder Head

$10.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 696126

Breather Assembly

$106.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 692226

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$6.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 692405

Gasket-Crankcase

Note: (.009" Thick)

$6.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692406

Gasket-Crankcase

Note: (.005" Thick)

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 690136

Crankshaft

$

$

Not available

20

Briggs & Stratton 291675S

Seal-Oil

Note: (PTO Side)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499284

Piston Assembly

Note: (Standard) Used Before Code Date 01041900

$

$

Not available

25

Briggs & Stratton 499292

Piston Assembly

Note: (.020" Oversize) Used Before Code Date 01041900

$

$

Not available

25

Briggs & Stratton 696397

Piston Assembly

Note: (Standard) Used After Code Date 01041800

$

$

Not available

25

Briggs & Stratton 696399

Piston Assembly

Note: (.020" Oversize) Used After Code Date 01041800

$152.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 696400

Piston Assembly

Note: (.030" Oversize) Used After Code Date 01041800

$

$

Not available

26

Briggs & Stratton 696405

Ring Set

Note: (.020" Oversize) Used After Code Date 01041800

$74.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 696406

Ring Set

Note: (.030" Oversize) Used After Code Date 01041800

$

$

Not available

26

Briggs & Stratton 495854

Ring Set

Note: (Standard) Used Before Code Date 01041900

$79.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 495851

Ring Set

Note: (.020" Oversize) Used Before Code Date 01041900

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 495855

Ring Set

Note: (.030" Oversize) Used Before Code Date 01041900

$32.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 696403

Ring Set

Note: (Standard) Used After Code Date 01041800

$64.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 696404

Ring Set

Note: (.010" Oversize) Used After Code Date 01041800

$

$

Not available

27

Briggs & Stratton 691299

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498320

Pin-Piston

Note: (.005" Oversize)

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 692420

Rod-Connecting

Note: (.020" Undersize) Used After Code Date 98063000

$

$

Not available

29

Briggs & Stratton 494504S

Rod-Connecting

Note: (Standard) Used Before Code Date 98070100

$112.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 495490

Rod-Connecting

Note: (.020" Undersize) Used Before Code Date 98070100

$

$

Not available

29

Briggs & Stratton 692419

Rod-Connecting

Note: (Standard) Used After Code Date 98063000

$149.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

Note: (Connecting Rod) Used After Code Date 98063000

$4.99

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 690348

Screw
(Superseded to 690352)

Note: (Connecting Rod) (1 5/8" Long) Used Before Code Date 98070100

$6.99

$

In Stock, only 3 left!

0

32A

Briggs & Stratton 690356

Screw
(Superseded to 791118)

Note: (Connecting Rod) (1 7/8" Long) Used Before Code Date 98070100

$4.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$37.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 698492

Camshaft
(Superseded to 793880)

Note: Used After Code Date 98063000

$96.99

$

In Stock, Qty 20+

0

46A

Briggs & Stratton 790340

Camshaft
(Superseded to 597221)

Note: Used Before Code Date 98070100

$139.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692137

GASKET, Intake

Note: Used After Code Date 97100500

$3.49

$

In Stock, Qty 20+

0

84

Briggs & Stratton 690343

Plug-Breather

$5.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

176

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

186

Briggs & Stratton 691609

Connector-Hose

Note: (Vacuum Line)(Breather Assembly)

$7.49

$

In Stock, Qty 7

0

306

Briggs & Stratton 698454

Shield-Cylinder

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

358

Briggs & Stratton 691580

Gasket Set-Engine

$86.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

Note: (Oil Pressure Switch)

$5.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370S

Seal-Dipstick Tube

$8.49

$

In Stock, Qty 20+

0

552

Briggs & Stratton 491986

Bushing-Governor Crank

$

$

Not available

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 16

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

733

Briggs & Stratton 691658

Screw
(Superseded to 698139)

Note: (Crankshaft Extension)

$5.99

$

In Stock, Qty 7

0

741

Briggs & Stratton 691284

Gear-Timing

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 691714

Link-Counterweight

$

$

Not available

758

Briggs & Stratton 692423

Counterweight

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 691239

Pin-Counterweight

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 691096

Screw

Note: (Counterweight)

$5.49

$

Usually ships in 2-12 days

0

810

Briggs & Stratton 691779

Extension-Crankshaft

$47.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover) Used After Code Date 98063000

$8.99

$

In Stock, Qty 20+

0

988

Briggs & Stratton 691317

Gasket-Oil Adapter

$4.99

$

In Stock, only 1 left!

0

1017

Briggs & Stratton 690770

Screen-Oil Pump

Note: Used After Code Date 98071900

$

$

Not available

1017A

Briggs & Stratton 691216

Screen-Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272475S

GASKET, Rocker Cover

$6.49

$

In Stock, Qty 20+

0

1032

Briggs & Stratton 491710

Ball-Oil Pump

$4.99

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 693784

Shaft-Pump
(Superseded to 794644)

Note: Used After Code Date 98063000

$35.99

$

In Stock, only 1 left!

0

1055

Briggs & Stratton 690528

Tube-Oil Pump

$8.49

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 275935

Operator's Manual
(Superseded to 276344TRI)

$

$

Not available

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!

0
