28S777-1151-E1 - Briggs & Stratton Vertical Engine Alternator, Magneto Parts Diagram

Vertical Engine

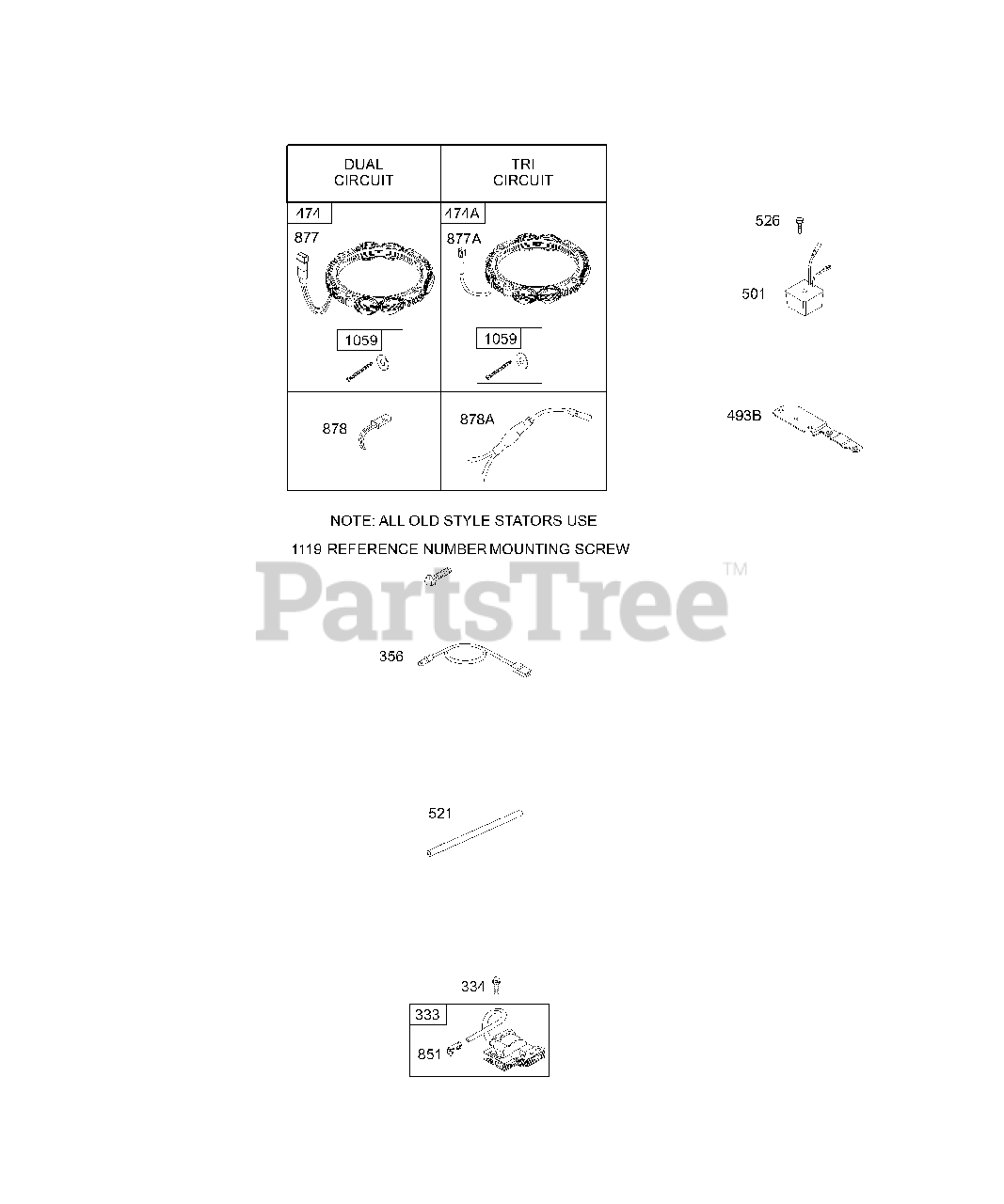

Alternator, Magneto Parts Diagram

  • Title

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 690807

Wire-Stop

$

$

Not available

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 7

0

474A

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (Tri Circuit)

$102.99

$

In Stock, Qty 7

0

493B

Briggs & Stratton 694475

Bracket-Mounting

Note: (Regulator)

$24.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

$64.99

$

In Stock, only 2 left!

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 694476

Screw

Note: (Regulator)

$3.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393537

Wire/Connector-Alternator

$

$

Not available

878

Briggs & Stratton 691237

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator

$69.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
