28S777-1111-E1 - Briggs & Stratton Vertical Engine Blower Housing, Flywheel, Rotating Screen Parts Diagram

Vertical Engine

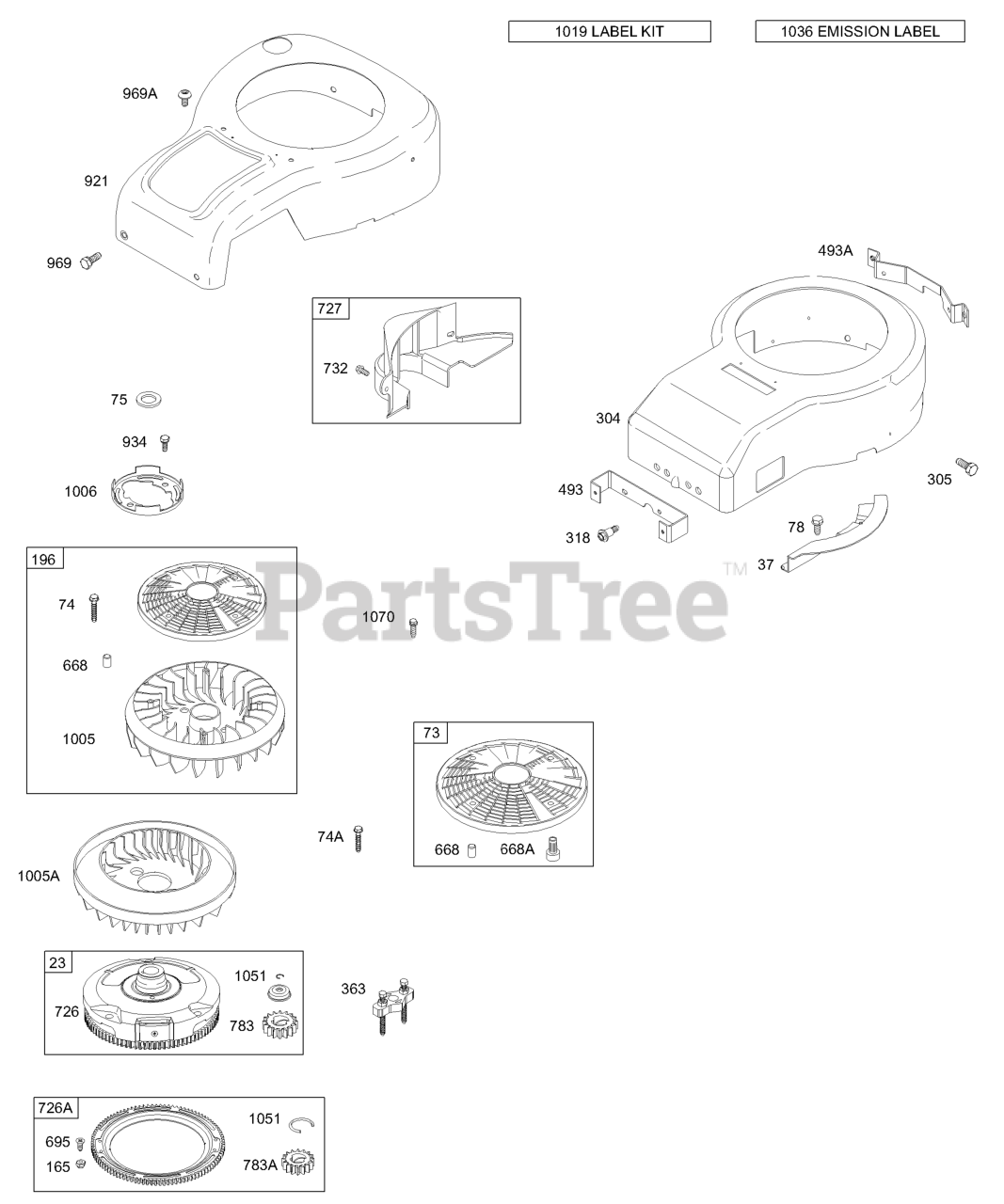

Blower Housing, Flywheel, Rotating Screen Parts Diagram

  • Title

23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

Note: (Steel Ring Gear)

$238.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 690456

Guard-Flywheel

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 494439

SCREEN, Rotating

$53.99

$

In Stock, Qty 10

0

74

Briggs & Stratton 691674

Screw

Note: (Rotating Screen)

$2.49

$

Usually ships in 2-12 days

0

74A

Briggs & Stratton 698425

SCREW

Note: (Rotating Screen)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 690582

Washer

Note: (Flywheel)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 697561

Screw

Note: (Flywheel Guard)

$3.99

$

In Stock, only 1 left!

0

165

Briggs & Stratton 693148

Nut

Note: (Ring Gear)

$3.49

$

In Stock, only 4 left!

0

196

Briggs & Stratton 695493

Fan/Screen Assembly

$92.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 690497

Housing-Blower

$199.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

318

Briggs & Stratton 692127

Screw

Note: (Mounting Bracket)

$6.49

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

493

Briggs & Stratton 690493

Bracket-Mounting

Note: (Front)

$22.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 690494

Bracket-Mounting

Note: (Rear)

$20.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 691215

SPACER

Note: (Rotating Screen)

$7.49

$

In Stock, only 1 left!

0

668A

Briggs & Stratton 691500

SPACER

Note: (Rotating Screen)

$7.49

$

Usually ships in 2-12 days

0

695

Briggs & Stratton 693109

Screw

Note: (Ring Gear)

$4.99

$

Usually ships in 2-12 days

0

726

Gear-Ring

Note: (Steel)(See Reference 23 for Service)

$

$

Not available

726A

Briggs & Stratton 696537

Gear-Ring

Note: (Aluminum)(Services Plastic Ring Gear Only)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter Drive

$26.99

$

In Stock, only 1 left!

0

732

Briggs & Stratton 691002

Screw

Note: (Starter Drive Cover)

$8.49

$

In Stock, only 2 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (Steel Ring Gear Only)

$26.99

$

In Stock, only 1 left!

0

783A

Briggs & Stratton 695708

Gear-Pinion

Note: (For Aluminum And Plastic Ring Gears)

$6.99

$

In Stock, only 3 left!

0

921

Briggs & Stratton 692493

Cover-Blower Housing

Note: (Red)

$109.99

$

Usually ships in 2-12 days

0

921

Briggs & Stratton 692679

Cover-Blower Housing

Note: (Black)

$83.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 691058

Screw

Note: (Fan Retainer)

$5.99

$

In Stock, Qty 11

0

969

Briggs & Stratton 690365

Screw

Note: (Blower Housing Cover)

$2.99

$

In Stock, only 1 left!

0

969A

Briggs & Stratton 691108

SCREW

Note: (Blower Housing Cover)

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 697853

Fan-Flywheel
(Superseded to 796201)

$29.99

$

In Stock, Qty 20+

0

1005A

Briggs & Stratton 691905

Fan-Flywheel

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 496758

Kit-Label

$29.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695700

Label-Emissions

Note: Used After Code Date 00063000

$4.49

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694997

Label-Emissions

Note: Used After Code Date 99093000 Used Before Code Date 00070100

$4.49

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694318

Label-Emissions

Note: Used After Code Date 98123100 Used Before Code Date 99010100

$3.49

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499364

Label-Emissions

Note: Used Before Code Date 99010100

$3.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Flywheel Fan)

$3.99

$

In Stock, Qty 6

0
