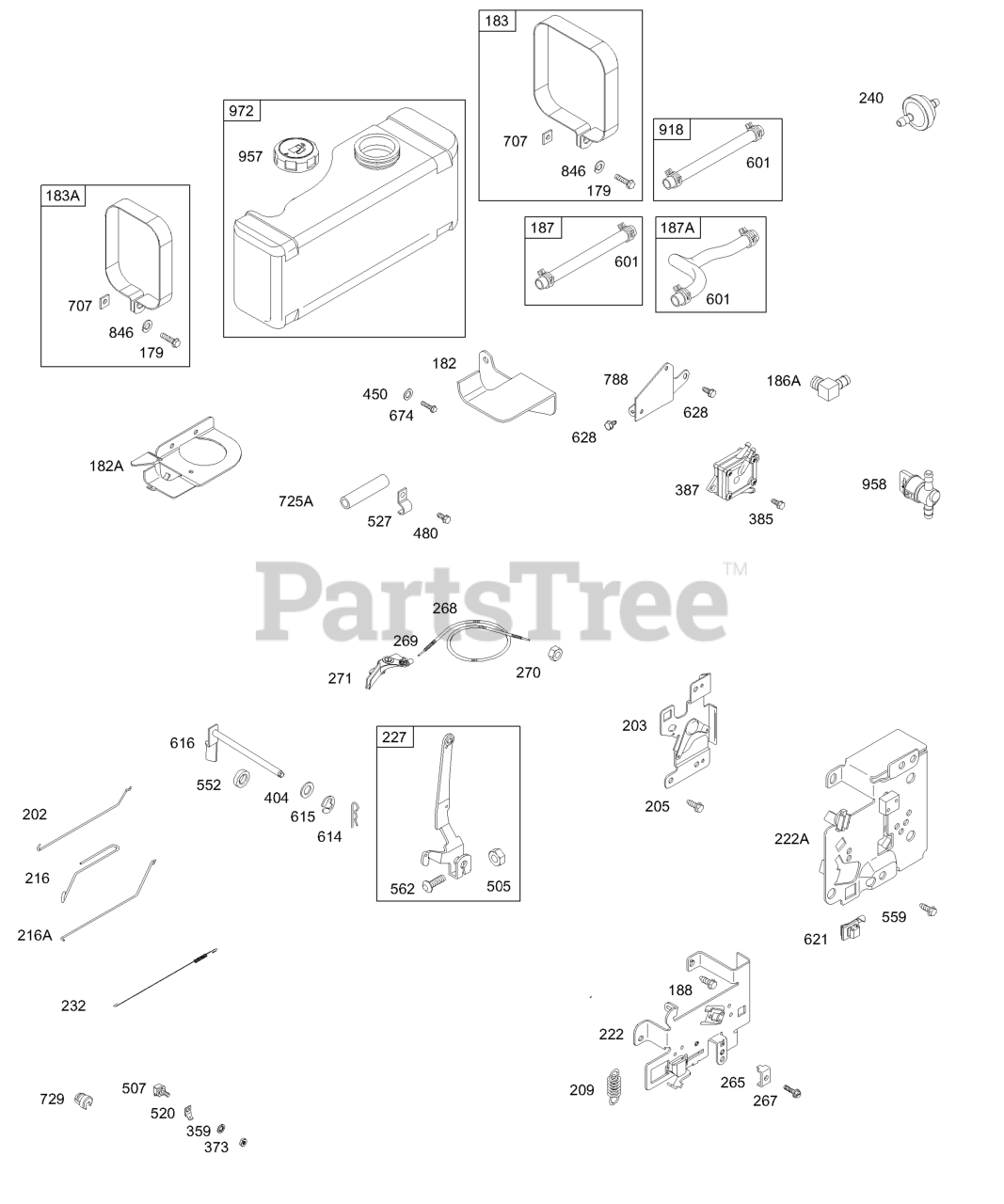

28M707-0147-01 - Briggs & Stratton Vertical Engine Controls, Springs, Fuel Tank, Hoses, Pump Parts Diagram

Vertical Engine

Controls, Springs, Fuel Tank, Hoses, Pump Parts Diagram

  • Title

179

Briggs & Stratton 692331

Screw
(Superseded to 697935)

Note: (Fuel Tank Strap)

$3.99

$

In Stock, only 1 left!

0

182

Briggs & Stratton 690443

Bracket-Fuel Tank

Note: (Right Hand)

$22.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 692535

Bracket-Fuel Tank

Note: (Left Hand)

$45.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 698459

Strap-Fuel Tank

Note: (Right Hand)

$17.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 692030

Strap-Fuel Tank

Note: (Left Hand)

$16.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 499167

Line-Fuel (Cut To Required Length)
(Superseded to 841589)

Note: (Cut To Required Length)

$38.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 691936

Line-Fuel
(Superseded to 791865)

$35.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 12

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

203

Briggs & Stratton 691381

Crank-Bell

$36.99

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 691693

SCREW

Note: (Bell Crank)

$3.99

$

In Stock, Qty 12

0

209

Briggs & Stratton 691278

Spring-Governor

Note: (Platinum)

$7.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 3 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: (Red)

$

$

Not available

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 690804

Screw (Casing Clamp)

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer (Ground Terminal)

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 692198

Screw (Rocker Cover) (7/16" Long)

Note: (Fuel Pump)

$5.99

$

In Stock, Qty 13

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

450

Briggs & Stratton 690259

Washer

Note: (Fuel Tank Bracket)

$12.99

$

In Stock, only 2 left!

0

480

Briggs & Stratton 690664

Screw (Muffler Guard)

Note: (Tube Clamp)

$5.49

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

527

Briggs & Stratton 690394

Clamp-Tube

$4.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 491986

Bushing-Gov Crank (1/4" I.d.)

$

$

Not available

559

Briggs & Stratton 690661

SCREW

Note: (Remote Choke Stop)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Governor Shaft

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

628

Briggs & Stratton 690661

SCREW

Note: (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 9

0

674

Briggs & Stratton 690341

SCREW

Note: (Fuel Tank Bracket)

$5.99

$

In Stock, only 3 left!

0

707

Briggs & Stratton 690279

Nut

Note: (Fuel Tank Strap)

$3.99

$

Usually ships in 2-12 days

0

725A

Briggs & Stratton 690403

Shield-Heat

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690596

Clip-Wire

$

$

Not available

788

Briggs & Stratton 690458

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

846

Briggs & Stratton 690371

Washer
(Superseded to 22097GS)

Note: (Fuel Tank Strap)

$3.49

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

Hose-Vacuum (Cylinder To Impulse Pump)(cut To Required Length)
(Superseded to 791880)

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988S

Cap-Fuel Tank (Plastic)
(Superseded to 799719)

Note: (Plastic)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

Note: (Plastic)

$8.49

$

In Stock, Qty 20+

0

972

Briggs & Stratton 390225

Tank-Fuel (3 Quart, Plastic)

Note: (Plastic)

$

$

Not available
