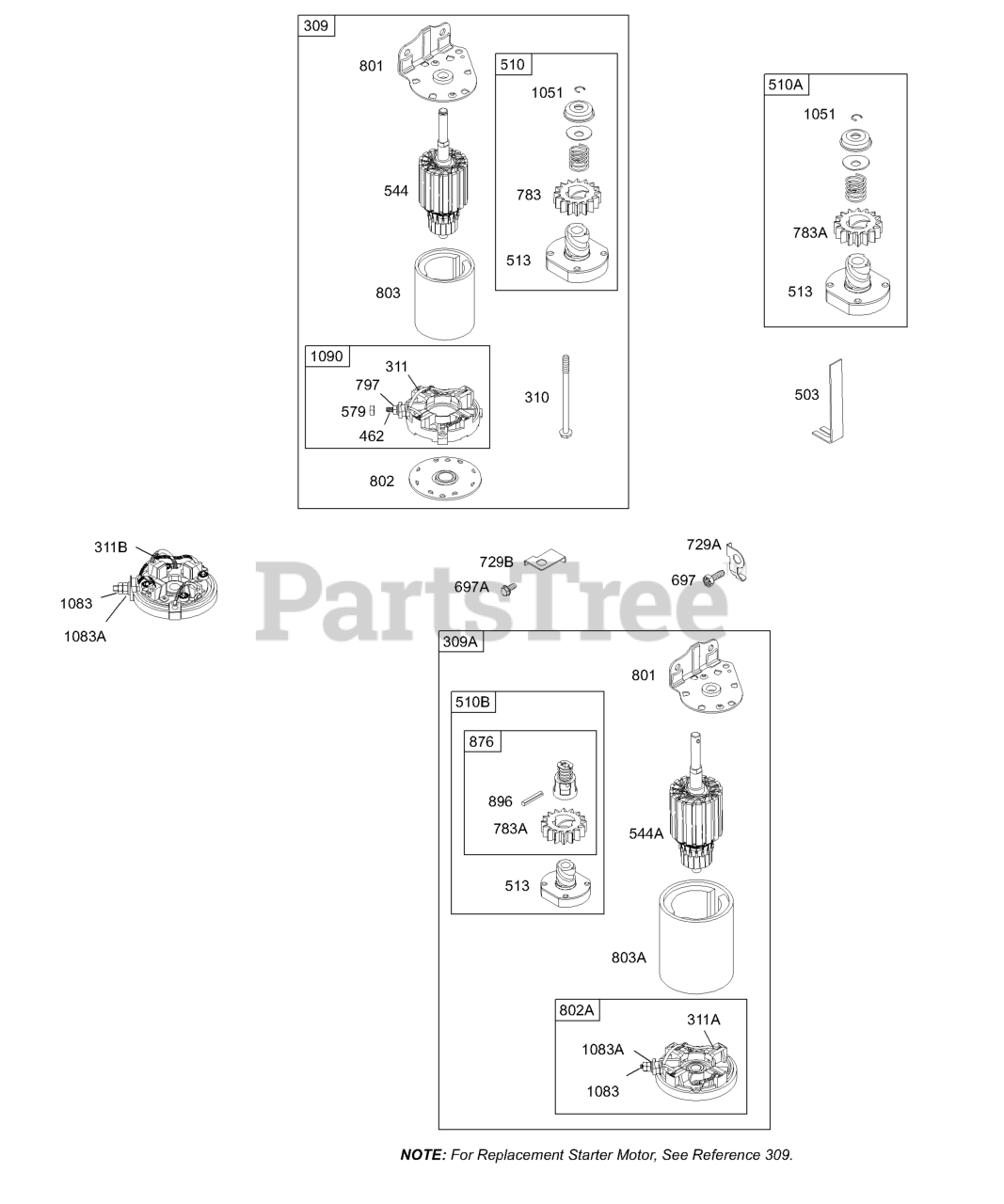

28M707-0102-01 - Briggs & Stratton Vertical Engine Electric Starter Parts Diagram

Vertical Engine

Electric Starter Parts Diagram

  • Title
309

Briggs & Stratton 693054

Motor-Starter
(Superseded to 497595)

Note: (3 5/8" Housing Length For Aluminum Ring Gear Only)

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

Note: (3 5/8" Housing Length For Steel Ring Gear Only)

$131.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 693552

Motor-Starter
(Superseded to 593936)

Note: (4-3/8" Housing Length For Steel Ring Gear Only)

$231.99

$

In Stock, only 1 left!

0

309

Briggs & Stratton 497401

Motor-Starter
(Superseded to 795121)

Note: (4-3/8" Housing Length For Plastic Ring Gear Only)

$143.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 497595

Motor-Starter

Note: (3 5/8" Housing Length For Plastic Ring Gear Only)

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 499521

Motor-Starter
(Superseded to 795121)

Note: (4-3/8" Housing Length For Aluminum Ring Gear Only)

$143.99

$

In Stock, Qty 20+

0

309A

Motor-Starter

Note: (For Replacement Starter Motor, Order Reference 309)

$

$

Not available

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor) (3 5/8" Housing Length)

$4.49

$

In Stock, Qty 7

0

310

Briggs & Stratton 691263

Screw

Note: (Starter Motor) (4 3/8" Housing Length)

$

$

Not available

310

Briggs & Stratton 692329

Screw
(Superseded to 592063)

Note: (Starter Motor) (4 9/16" Housing Length)

$5.99

$

Usually ships in 2-12 days

0

311

$27.99

$

In Stock, only 3 left!

0

311A

Briggs & Stratton 395538

Brush Set

Note: (3 5/8" Housing Length)

$24.99

$

Usually ships in 2-12 days

0

311B

Briggs & Stratton 490311

Brush Set

Note: (4 9/16" Housing Length)

$35.99

$

Usually ships in 2-12 days

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

Note: (Used With Steel Ring Gear)

$131.99

$

In Stock, Qty 20+

0

510A

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

Note: (Used With Aluminum And Plastic Ring Gears)

$90.99

$

In Stock, Qty 5

0

510B

Briggs & Stratton 696540

Drive-Starter

$29.99

$

In Stock, Qty 18

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 692034

Armature-Starter

Note: (3 5/8" Housing Length)

$82.99

$

Usually ships in 2-12 days

0

544A

Briggs & Stratton 390837

Armature-Starter

Note: (3 5/8" Housing Length)

$159.99

$

In Stock, only 1 left!

0

544A

Briggs & Stratton 490309

Armature-Starter

Note: (4 3/8" Housing Length)

$74.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

697A

Briggs & Stratton 691058

Screw

Note: (Drive Cap)

$5.99

$

In Stock, Qty 11

0

729A

$4.99

$

Usually ships in 2-12 days

0

729B

$5.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (Steel Ring Gear Only)

$26.99

$

In Stock, only 1 left!

0

783A

Briggs & Stratton 695708

Gear-Pinion

Note: (For Aluminum And Plastic Ring Gears)

$6.99

$

In Stock, only 2 left!

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

$83.99

$

Usually ships in 2-12 days

0

$26.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 395537

Cap-End

Note: (3 5/8" Housing Length)

$54.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

Note: (3-5/8" Housing Length)(4-3/8" Housing Length Serviced By ReferenceNumber 309)

$25.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 494205

Housing-Starter

Note: (4 3/8" Housing Length)

$73.99

$

In Stock, only 1 left!

0

803A

Briggs & Stratton 398159

Housing-Starter

Note: (3 5/8" Housing Length)

$80.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 696539

Kit-Pinion Spring
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

896

Briggs & Stratton 691641

Pin-Drive Retainer

$4.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1083

Briggs & Stratton 691626

Nut

Note: (End Cap)

$3.99

$

Usually ships in 2-12 days

0

1083A

Briggs & Stratton 690958

NUT

Note: (End Cap) (Serrated)

$3.49

$

In Stock, only 3 left!

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 5

0
