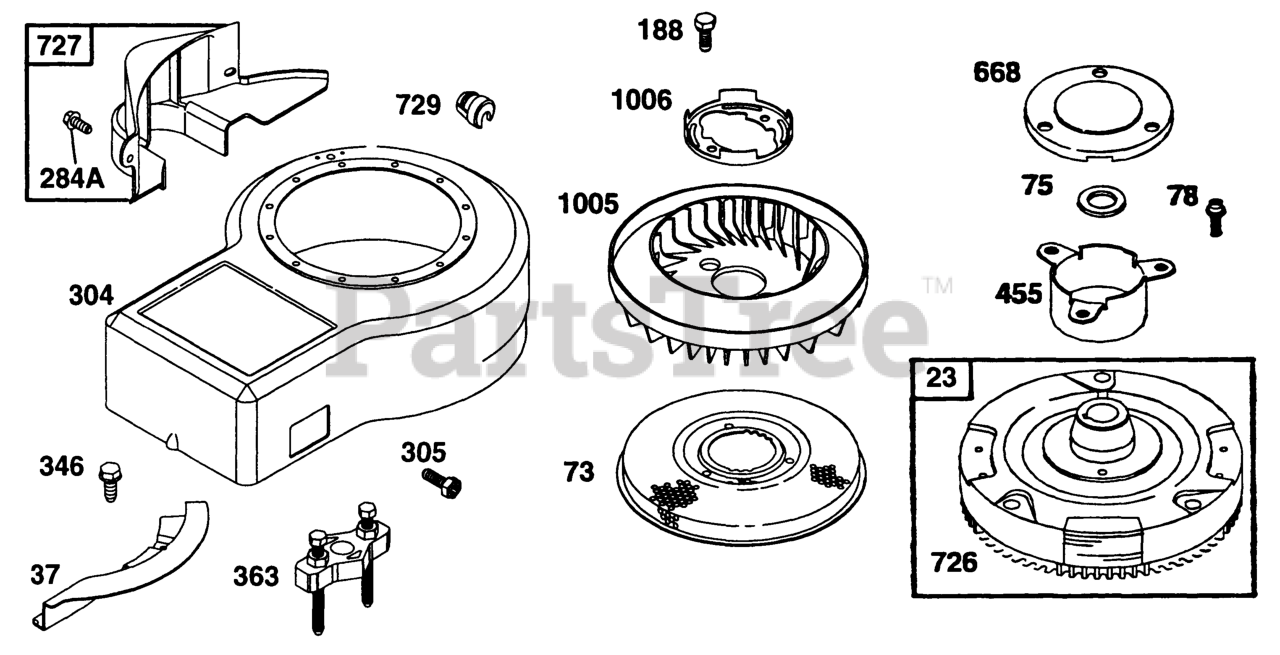

28F707-0298-01 - Briggs & Stratton Vertical Engine Blower Hsg,Flywheel, Screens Parts Diagram

Vertical Engine

Blower Hsg,Flywheel, Screens Parts Diagram

  • Title
23

Briggs & Stratton 492326

Flywheel And Ring Gear Assy.-Magneto
(Superseded to 693557)

$

$

Not available

37

Briggs & Stratton 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 224517

Screen-Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 225136

Washer-Flywheel
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 94626

Screw-Phillips
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

284A

Briggs & Stratton 94073

Screw, Hex Washer H
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

304

Briggs & Stratton 496318

Housing-Blower (Red)
(Superseded to 690846)

$108.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94881

Screw, Sem Hex Head
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

305

Briggs & Stratton 94905

Screw, Machine Hex
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

346

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 222561

Cup-Screen Mtg.
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 231109

Spacer
(Superseded to 690510)

$6.49

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 280848

Spacer
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear, Ring Kit
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Str Drive (Includes Mtg. Screws)

$26.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 281159

Clip-Wire
(Superseded to 690596)

$

$

Not available

1005

Briggs & Stratton 280687

Fan-Flywheel
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0
