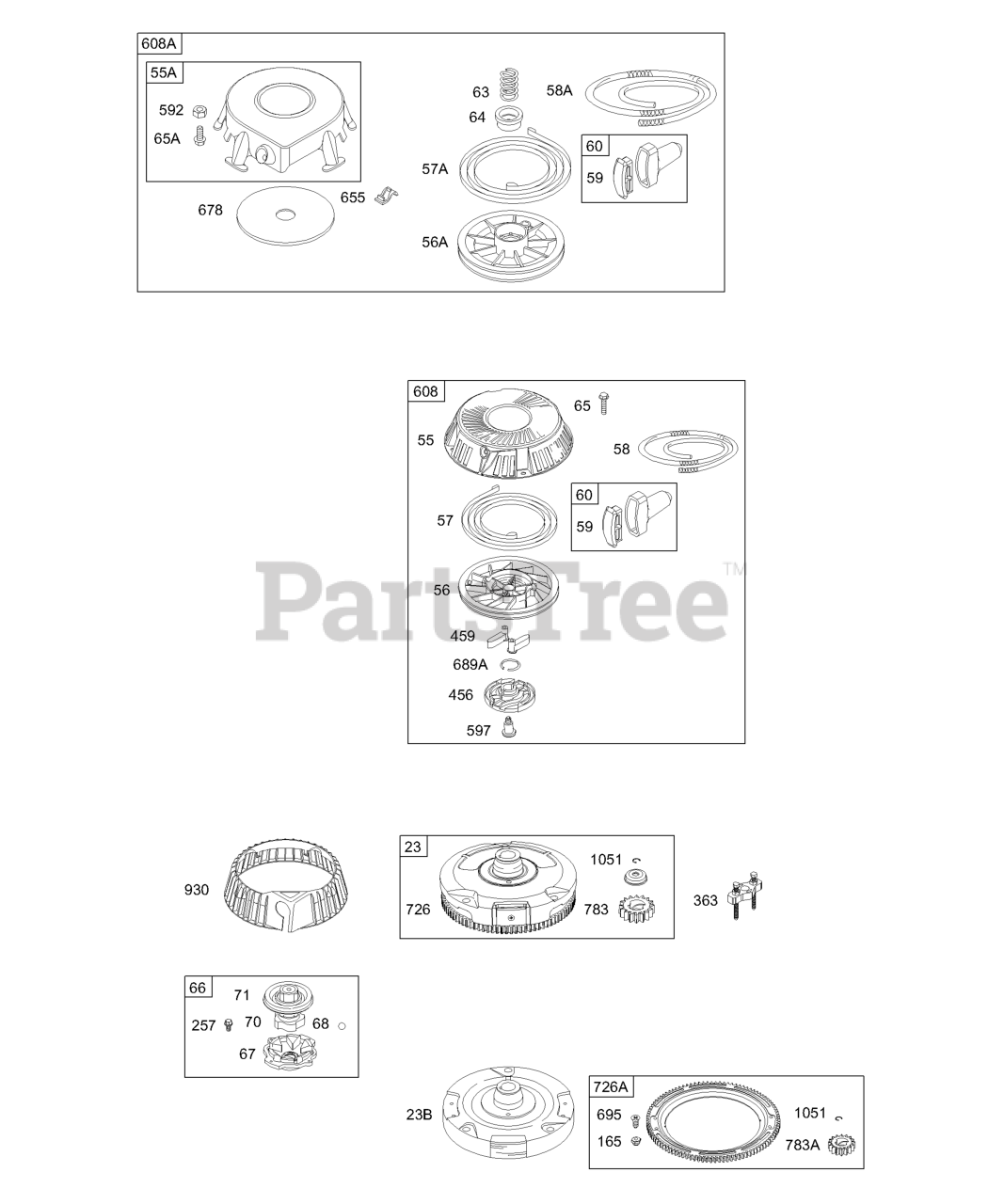

28B702-0001-02 - Briggs & Stratton Vertical Engine Rewind Starter, Flywheel Parts Diagram

Vertical Engine

Rewind Starter, Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

Note: (Steel Ring Gear)

$

$

Not available

23B

Briggs & Stratton 693555

Flywheel
(Superseded to 595093)

$269.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 695130

Housing-Rewind Starter

Note: Used After Code Date 99102400

$

$

Not available

55A

Briggs & Stratton 393576

Housing-Rewind Starter

Note: Used Before Code Date 99102500

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 695129

PULLEY, Starter

Note: Used After Code Date 99102400

$29.99

$

In Stock, Qty 9

0

56A

Briggs & Stratton 295871

Pulley-Starter

Note: (Includes 63" Long Rope) Used Before Code Date 99102500

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 695131

SPRING, Rewind Starter

Note: Used After Code Date 99102400

$17.99

$

In Stock, only 2 left!

0

57A

Briggs & Stratton 490179

Spring-Rewind Starter

Note: Used Before Code Date 99102500

$

$

Not available

58

Briggs & Stratton 695132

ROPE, Starter

Note: (.2" Diameter, 59" Long)(Cut To Required Length) Used After Code Date 99102400

$8.49

$

In Stock, only 1 left!

0

58A

Briggs & Stratton 692188

Rope-Starter

Note: (63" Long)(Cut to Required Length) Used Before Code Date 99102500

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 490653

Insert-Grip
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 690547

Spring-Ratchet

Note: Used Before Code Date 99102500

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 691920

Adapter-Ratchet Spring

Note: Used Before Code Date 99102500

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 695453

Screw
(Superseded to 697725)

Note: (Rewind Starter) Used After Code Date 99102400

$4.99

$

Usually ships in 2-12 days

0

65A

Briggs & Stratton 690837

Screw

Note: (Rewind Starter) Used Before Code Date 99102500

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: Used Before Code Date 99102500

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Clutch

Note: Used Before Code Date 99102500

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 691604

Ball-Clutch

Note: Used Before Code Date 99102500

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 691945

Ratchet-Clutch

Note: Used Before Code Date 99102500

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 691359

Cover-Ratchet

Note: Used Before Code Date 99102500

$9.99

$

In Stock, Qty 14

0

165

Briggs & Stratton 693148

Nut

Note: (Ring Gear)

$3.49

$

In Stock, only 4 left!

0

257

Briggs & Stratton 691660

Screw

Note: (Starter Clutch)

$3.99

$

In Stock, Qty 11

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 695128

PLATE, Pawl Friction

Note: Used After Code Date 99102400

$12.99

$

In Stock, Qty 19

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

Note: Used After Code Date 99102400

$3.49

$

In Stock, Qty 20+

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter) Used Before Code Date 99102500

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate) Used After Code Date 99102400

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 695058

Starter-Rewind
(Superseded to 591606)

Note: Used After Code Date 99102400

$95.99

$

In Stock, Qty 20+

0

608A

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

Note: Used Before Code Date 99102500

$131.99

$

In Stock, Qty 10

0

655

Briggs & Stratton 691734

Anchor-Rewind Spring

Note: Used Before Code Date 99102500

$4.99

$

Usually ships in 2-12 days

0

678

Briggs & Stratton 490817

Spacer-Rewind

Note: Used Before Code Date 99102500

$9.49

$

In Stock, Qty 5

0

689A

Briggs & Stratton 691855

SPRING, Friction

Note: Used After Code Date 99102400

$4.49

$

In Stock, only 3 left!

0

695

Briggs & Stratton 693109

Screw

Note: (Ring Gear)

$4.99

$

Usually ships in 2-12 days

0

726

Gear-Ring

Note: (Steel)(See Reference 23 for Service)

$

$

Not available

726A

Briggs & Stratton 696537

Gear-Ring

Note: (Aluminum)(Services Plastic Ring Gear Only)

$50.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (DC)(10-16 AMP)

$26.99

$

In Stock, only 1 left!

0

783A

Briggs & Stratton 695708

Gear-Pinion

Note: (For Aluminum And Plastic Ring Gears)

$6.99

$

In Stock, only 4 left!

0

930

Briggs & Stratton 691904

Guard-Rewind

Note: Used Before Code Date 99102500

$27.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0
