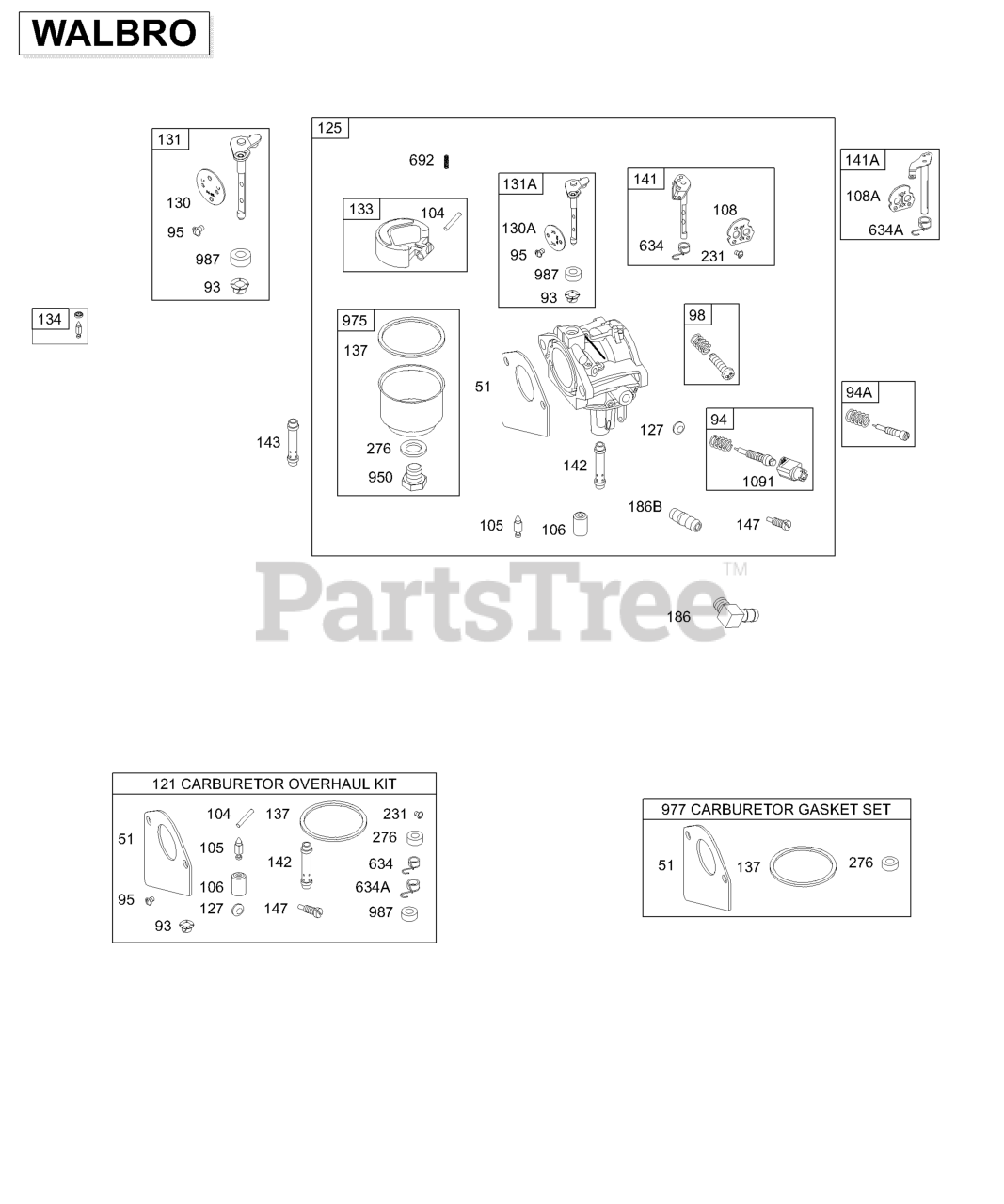

28B702-0001-02 - Briggs & Stratton Vertical Engine Carburetor, Overhaul Kits Parts Diagram

Vertical Engine

Carburetor, Overhaul Kits Parts Diagram

  • Title

51

Briggs & Stratton 692284

Gasket-Intake

$4.99

$

In Stock, only 3 left!

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

$21.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 496589

Kit-Idle Mixture

$12.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (Gravity Feed)

$7.99

$

In Stock, Qty 6

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Pump Feed)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 690464

Valve-Choke

Note: (Manual Choke)

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 692344

Valve-Choke

Note: (Choke A Matic)

$8.49

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 499220

Kit-Carburetor Overhaul
(Superseded to 497535)

Note: (LMT 92, 93, 94, 95, 96, 108, 111, 162, 165, 169)

$67.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 499231

Kit-Carburetor Overhaul

Note: (LMT 97, 99, 133, 135, 136, 157, 158, 159, 160, 166, 168)

$158.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 697884

Kit-Carburetor Overhaul

Note: (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906)

$90.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 497481

Kit-Carburetor Overhaul

Note: (LMT 63, 65, 66)

$59.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 698171

Carburetor

Note: (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906)

$219.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498027

Carburetor
(Superseded to 799728)

Note: (LMT 37, 77, 78, 79, 80, 81, 92, 93, 94, 96, 97, 99, 100, 108, 109,110, 111, 133, 134, 135, 136, 157, 158, 162, 165)(Gravity Feed)

$

$

Not available

125

Briggs & Stratton 499158

Carburetor

Note: (LMT 159, 166, 167, 168, 169)(Pump Feed)

$

$

Not available

127

Briggs & Stratton 695005

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 694524

Plug-Welch

Note: (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906)

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 690468

Valve-Throttle

Note: (LMT 111, 169)

$9.49

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494885

Kit-Throttle Shaft
(Superseded to 790901)

Note: (LMT 111, 169)

$38.99

$

In Stock, only 1 left!

0

131A

Briggs & Stratton 494379

Kit-Throttle Shaft
(Superseded to 790901)

Note: (Manual Choke)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

134

Briggs & Stratton 494788

Kit-Needle/Seat

Note: (LMT 5, 6)

$9.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 495097

Kit-Choke Shaft
(Superseded to 790905)

Note: (Manual Choke)

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Kit-Choke Shaft
(Superseded to 790902)

Note: (Choke A Matic)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 691425

Nozzle-Carburetor

Note: (Standard) (LMT 37, 39, 41, 77, 79, 81, 157, 159)

$29.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 691434

Nozzle-Carburetor

Note: (Standard) (LMT 92, 93, 94, 96)

$23.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 697592

Nozzle-Carburetor

Note: (Standard) (LMT 696160, 696162, 696164, 696166)

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497568

Nozzle-Carburetor

Note: (Standard) (LMT 97, 99, 100)

$26.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497860

Nozzle-Carburetor

Note: (Standard) (LMT 63, 65, 66)

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 498545

Nozzle-Carburetor

Note: (Standard) (LMT 108, 111)

$24.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499037

Nozzle-Carburetor

Note: (Standard) (LMT 162, 165, 169)

$27.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499039

Nozzle-Carburetor

Note: (Standard) (LMT 166, 167, 168)

$29.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 498258

Nozzle-Carburetor

Note: (High Altitude) (LMT 63, 65, 66, 108, 111, 133, 135, 136)

$27.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 499040

Nozzle-Carburetor

Note: (High Altitude) (LMT 162, 165, 166, 167, 168, 169)

$23.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 497737

Nozzle-Carburetor

Note: (High Altitude) (LMT 92)

$22.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 497970

Nozzle-Carburetor

Note: (High Altitude) (LMT 97, 98)

$20.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: (LMT 63, 65, 66, 97, 99, 100, 133, 135, 136)

$22.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231983

Jet-Pilot
(Superseded to 232057)

Note: (LMT 136)

$14.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

186B

Briggs & Stratton 698174

Connector-Hose

$3.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690801

Spring/Seal Assembly

Note: (Manual Choke)

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Choke A Matic)

$9.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

950

Briggs & Stratton 691657

Screw-Float Bowl

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

Note: (Walbro)

$67.99

$

In Stock, only 2 left!

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!
