289707-0150-01 - Briggs & Stratton Vertical Engine Carburetors, Gasket Sets Parts Diagram

Vertical Engine

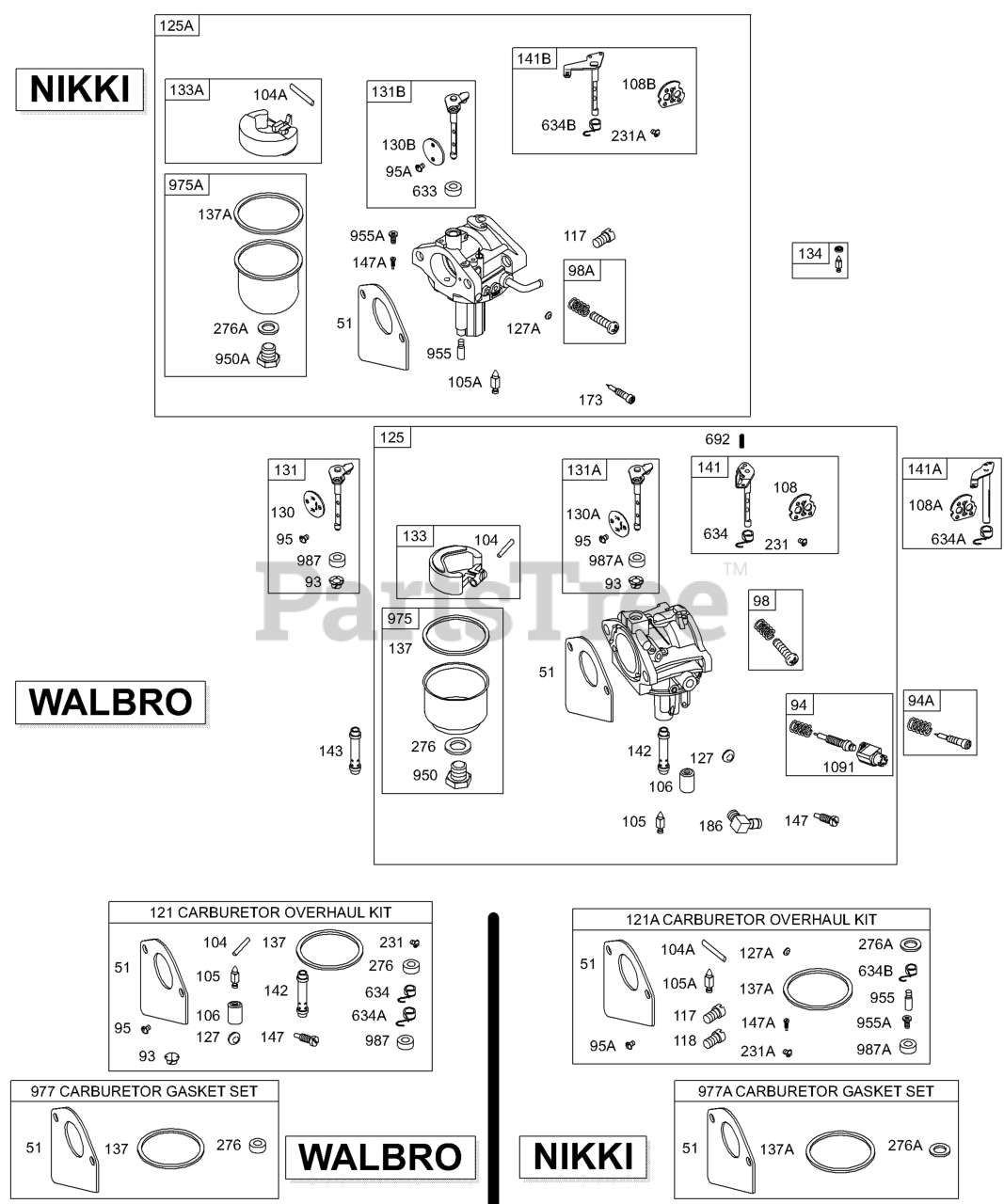

Carburetors, Gasket Sets Parts Diagram

  • Title

51

Briggs & Stratton 692284

Gasket-Intake

$4.99

$

In Stock, only 2 left!

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

$21.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 494383

Kit-Idle Mixture

$13.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 694907

Kit-Idle Speed

$9.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 694922

Valve-Float Needle
(Superseded to 696136)

$15.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 690577

Seat-Inlet

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (LMT 5, 6)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 690464

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 692344

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 694923

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690880

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 694925

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 497535

Kit-Carb Overhaul

Note: (LMT 5, 37, 77)

$67.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 499220

Kit-Carb Overhaul
(Superseded to 497535)

Note: (LMT 92, 93, 94, 95, 96, 108, 111, 162, 165, 169)

$67.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 499231

Kit-Carb Overhaul

Note: (LMT 97, 99, 133, 135, 136, 157, 158, 159, 160, 166, 168)

$158.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 697884

Kit-Carb Overhaul

Note: (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906)

$90.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 497481

Kit-Carb Overhaul

Note: (LMT 63, 65, 66)

$59.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 694930

Kit-Carb Overhaul

Note: (Nikki Carburetor)

$104.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 698171

Carburetor

Note: (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906)

$219.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498027

Carburetor
(Superseded to 799728)

Note: (LMT 37, 77, 78, 79, 80, 81, 92, 93, 94, 96, 97, 99, 100, 108, 109, 110,111, 133, 134, 135, 136, 157, 158, 159, 162, 165, 166, 167, 168, 169)(Gravity Feed)

$

$

Not available

125

Briggs & Stratton 499158

Carburetor

Note: (LMT 162, 165, 166, 167, 168, 169)

$

$

Not available

125A

Briggs & Stratton 694941

Carburetor
(Superseded to 699831)

Note: (Nikki Carburetor)

$205.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 695005

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

127A

Briggs & Stratton 694916

Plug-Welch
(Superseded to 806460)

$10.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690468

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 694917

Valve-Throttle

$10.99

$

Usually ships in 2-12 days

0

130B

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494885

Kit-Throttle Shaft
(Superseded to 790901)

Note: (LMT 111, 169)

$38.99

$

In Stock, only 1 left!

0

131A

Briggs & Stratton 494379

Kit-Throttle Shaft
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

131B

Briggs & Stratton 694909

Kit-Throttle Shaft

$64.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 494788

Kit-Needle/Seat

Note: (LMT 5, 6)

$9.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 694920

Gasket-Float Bowl

$9.99

$

In Stock, only 4 left!

0

141

Briggs & Stratton 495097

Kit-Choke Shaft
(Superseded to 790905)

Note: (Manual Choke)

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Kit-Choke Shaft
(Superseded to 790902)

Note: (Choke A Matic)

$33.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 694913

Kit-Choke Shaft

$45.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 691434

Nozzle-Carburetor

Note: (Standard) (LMT 92, 96)(Gravity Feed)

$23.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 691425

Nozzle-Carburetor

Note: (Standard) (LMT 5, 6, 37, 41, 77, 81, 157)

$29.99

$

In Stock, only 2 left!

0

143

Briggs & Stratton 497737

Nozzle-Carburetor

Note: (High Altitude) (LMT 5, 6, 37, 41, 77, 81, 157)

$22.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 497567

Nozzle-Carburetor

Note: (High Altitude) (LMT 5, 6, 37, 41, 77, 81, 157)

$22.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: (LMT 37, 41, 77, 81)

$22.99

$

Usually ships in 2-12 days

0

147A

Briggs & Stratton 694927

Jet-Pilot

$19.99

$

Usually ships in 2-12 days

0

173

Briggs & Stratton 694926

Valve-Idle Mixture

$14.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

231A

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 690997

Washer-Sealing

$7.99

$

In Stock, Qty 6

0

633

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690801

Spring/Seal Assembly

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

$9.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 694912

Spring/Seal Assembly

$12.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

950

Briggs & Stratton 691657

Screw-Float Bowl

$7.99

$

In Stock, only 1 left!

0

950A

Briggs & Stratton 694919

SCREW, Float Bowl

$10.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 694924

Plug-Carburetor

Note: (Idle Chamber)

$6.49

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 694921

Plug-Carburetor

Note: (Pilot Jet)

$4.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

975A

Briggs & Stratton 694908

Bowl-Float

$45.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

977A

Briggs & Stratton 694931

Gasket Set-Carburetor

Note: (Nikki Carburetor)

$21.99

$

In Stock, only 3 left!

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 692001

Seal-Throttle Shaft
(Superseded to 692279)

Note: (LMT 5, 6, 37, 41)

$3.99

$

In Stock, only 3 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0
