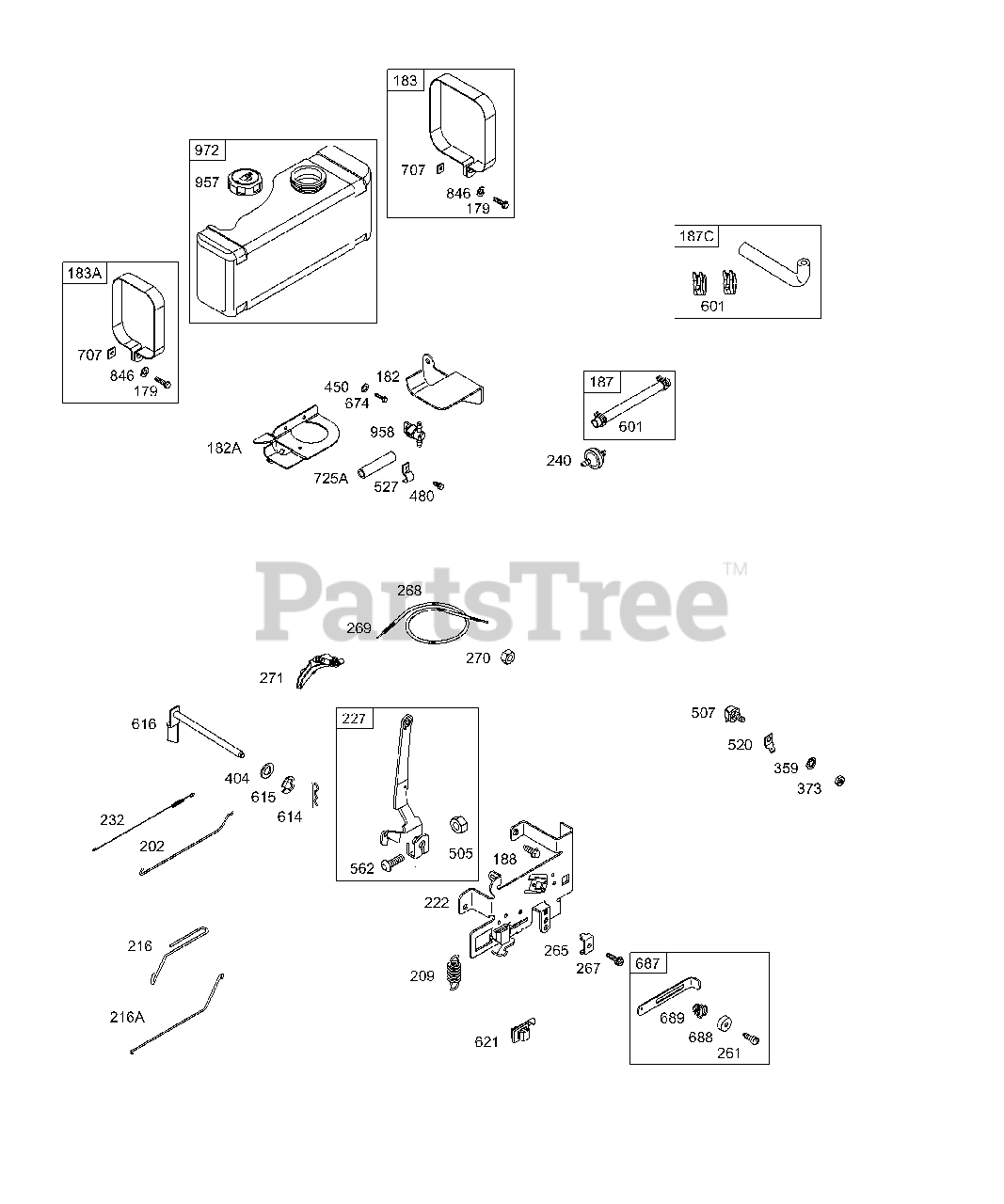

289707-0115-01 - Briggs & Stratton Vertical Engine Controls, Springs, Fuel, Links Parts Diagram

Vertical Engine

Controls, Springs, Fuel, Links Parts Diagram

  • Title

179

Briggs & Stratton 692331

Screw
(Superseded to 697935)

Note: (Fuel Tank Strap)

$3.99

$

In Stock, only 1 left!

0

182

Briggs & Stratton 690443

Bracket-Fuel Tank

Note: (Right Hand)

$22.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 692535

Bracket-Fuel Tank

Note: (Left Hand)

$45.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 698459

Strap-Fuel Tank

Note: (Right Hand)

$17.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 692030

Strap-Fuel Tank

Note: (Left Hand)

$16.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Line-Fuel
(Superseded to 791745)

Note: (Cut To Required Length)

$10.99

$

In Stock, Qty 20+

0

187C

Briggs & Stratton 699331

Line-Fuel
(Superseded to 791805)

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 690480

Spring-Governor
(Superseded to 792602)

Note: (Red)

$3.49

$

In Stock, only 2 left!

0

216A

Briggs & Stratton 690574

Link-Choke

$11.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 692002

Bracket-Control

$38.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: (Red)

$

$

Not available

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White)

$5.99

$

In Stock, Qty 20+

0

261

Briggs & Stratton 690278

Screw

Note: (Control Slide)

$3.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 690804

Screw

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

450

Briggs & Stratton 690259

Washer

Note: (Fuel Tank Bracket) (Electric Start)

$12.99

$

In Stock, only 2 left!

0

450

Briggs & Stratton 691261

WASHER

Note: (Fuel Tank Bracket) (Rewind Starter)

$3.99

$

In Stock, only 3 left!

0

480

Briggs & Stratton 690664

Screw

Note: (Tube Clamp)

$5.49

$

In Stock, only 2 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

527

Briggs & Stratton 690394

Clamp-Tube

$4.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Governor Shaft

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

674

Briggs & Stratton 690341

SCREW

Note: (Fuel Tank Bracket) (Used On Engines With Electric Start Only)

$5.99

$

In Stock, only 3 left!

0

674

Briggs & Stratton 691058

Screw

Note: (Fuel Tank Bracket) (Rewind Starter)

$5.99

$

In Stock, Qty 11

0

687

Briggs & Stratton 691949

Slide-Control

$

$

Not available

688

Briggs & Stratton 690395

Cap-Friction

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 690529

Spring-Friction

Note: (Control Bracket)

$9.99

$

Usually ships in 2-12 days

0

707

Briggs & Stratton 690279

Nut

Note: (Fuel Tank Strap)

$3.99

$

Usually ships in 2-12 days

0

725A

Briggs & Stratton 690420

Shield-Heat

$18.99

$

Usually ships in 2-12 days

0

846

Briggs & Stratton 690371

Washer
(Superseded to 22097GS)

Note: (Fuel Tank Strap)

$3.49

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988S

Cap-Fuel Tank
(Superseded to 799719)

Note: (Plastic)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

Note: (Plastic)

$8.49

$

In Stock, Qty 20+

0

972

Briggs & Stratton 390225

Tank-Fuel

Note: (Plastic) (3 Quart Tank)

$

$

Not available
