2890 (31AM5FP4B66) - Troy-Bilt Storm 28" Snow Thrower (2022) Auger Housing Parts Diagram

Storm 28" Snow Thrower

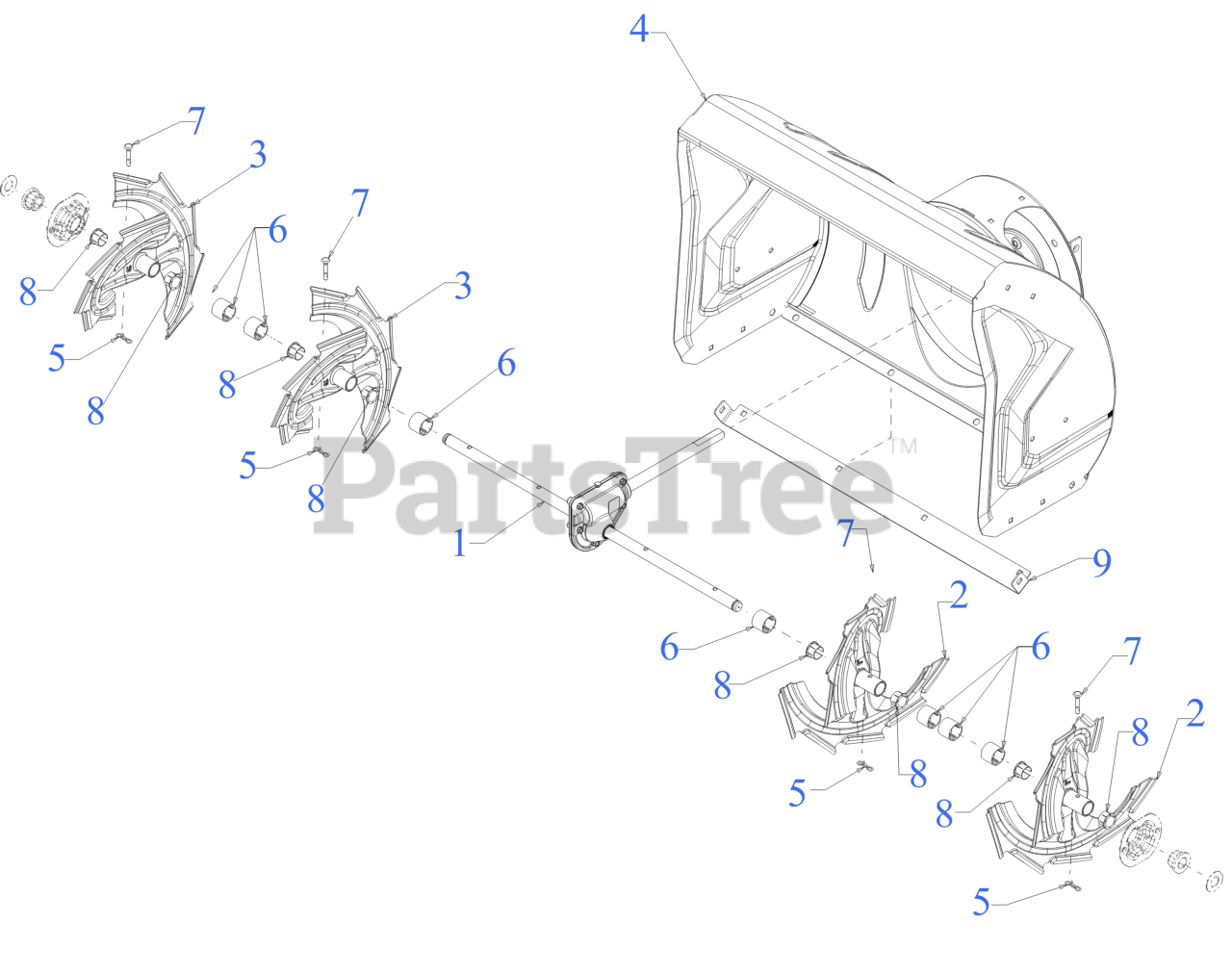

Auger Housing Parts Diagram

  • Title
1

Troy-Bilt 918-04173B

GEARBOX ASSEMBLY 28"

Note: (See Separate Breakdown)

$331.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 684-06760

10T AUGER SPIRAL (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-06761

10T AUGER SPIRAL (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-06779

28" AUGER HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

$162.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 790-03928

28" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$16.99

$

Usually ships in 3-6 days

0
