288707-0118-01 - Briggs & Stratton Vertical Engine Blower Housing, Flywheel, Rotating Screen Parts Diagram

Vertical Engine

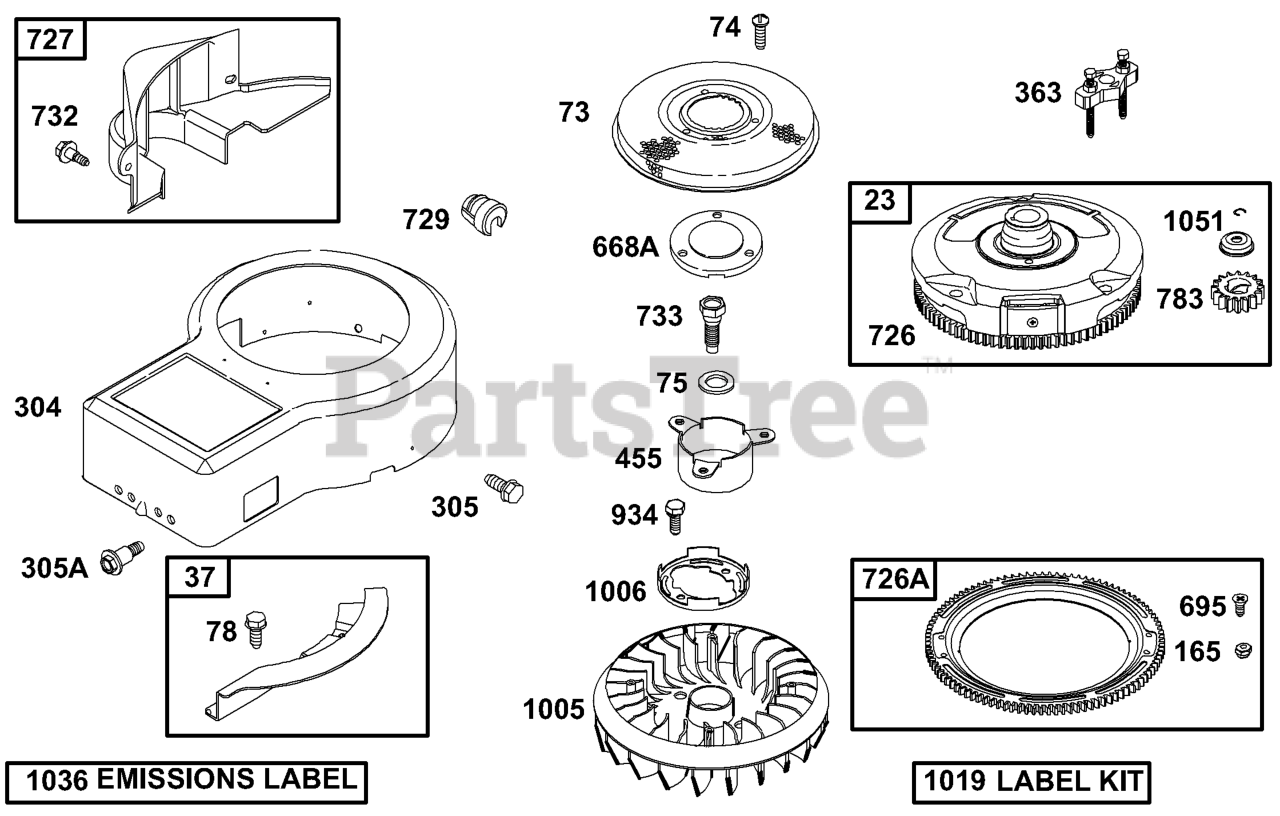

Blower Housing, Flywheel, Rotating Screen Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

Note: (Steel Ring Gear Only)

$

$

Not available

37

Briggs & Stratton 690806

Guard-Flywheel

$23.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 691748

Screen-Rotating

$232.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 691655

Screw

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer

Note: (Flywheel)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 690661

SCREW

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 8

0

165

Briggs & Stratton 693148

Nut

Note: (Ring Gear)

$3.49

$

In Stock, only 4 left!

0

304

Briggs & Stratton 690846

Housing-Blower

Note: Used After Code Date 93071800

$108.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 494268

Housing-Blower

Note: Used Before Code Date 93071900

$186.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690297

Screw

Note: (Blower Housing)

$3.49

$

In Stock, Qty 12

0

305A

Briggs & Stratton 692127

Screw

Note: (Blower Housing)

$6.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 695113

CUP, Flywheel

$15.99

$

In Stock, only 1 left!

0

668A

Briggs & Stratton 691323

Spacer

Note: (Flywheel Cup)

$4.99

$

Usually ships in 2-12 days

0

695

Briggs & Stratton 693109

Screw

Note: (Ring Gear)

$4.99

$

Usually ships in 2-12 days

0

726

Gear-Ring

Note: (Steel)(See Reference 23 for Service)

$

$

Not available

726A

Briggs & Stratton 696537

Gear-Ring

Note: (Aluminum) (Plastic Ring Gear Only)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter Drive

$26.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 690596

Clip-Wire

$

$

Not available

732

Briggs & Stratton 691002

Screw

Note: (Starter Drive Cover)

$8.49

$

In Stock, only 2 left!

0

733

Briggs & Stratton 691658

Screw
(Superseded to 698139)

Note: (Crankshaft Extension)

$5.99

$

In Stock, Qty 7

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (Steel Ring Gear Only)

$26.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 691058

Screw

Note: (Fan Retainer)

$5.99

$

In Stock, Qty 11

0

1005

Briggs & Stratton 691905

Fan-Flywheel

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491252

Kit-Label

$35.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694325

Label-Emissions

Note: Used After Code Date 98123100 Used Before Code Date 99100100

$4.49

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499362

Label-Emissions

Note: Used After Code Date 97052500 Used Before Code Date 99010100

$3.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499361

Label-Emissions

Note: Used Before Code Date 97052600

$5.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695036

Label-Emissions

Note: Used After Code Date 99093000

$4.49

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0
