288 - Husqvarna Chainsaw (SN: 20000600001 - 20014000000) STARTER Parts Diagram

Chainsaw

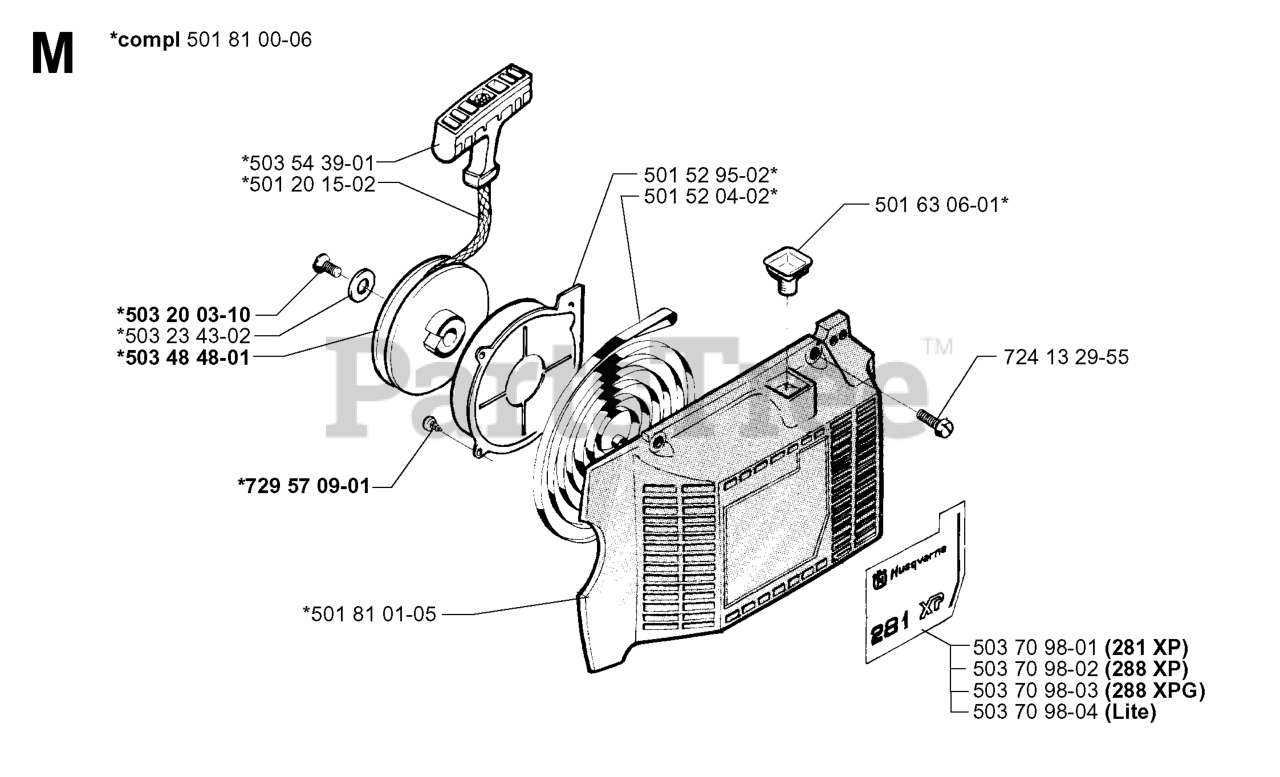

STARTER Parts Diagram

503 70 98-02

Husqvarna 503709802

DECAL 288XP

Note: 288 XP

$

$

Not available

503 70 98-04

Husqvarna 503709804

Decal

Note: LITE

$

$

Not available

501 20 15-02

Husqvarna 501201502

STARTER ROPE

$9.99

$

In Stock, Qty 20+

0

501 52 04-02

Husqvarna 501520402

RECOIL SPRING

$17.99

$

In Stock, only 1 left!

0

724 13 29-55

Husqvarna 724132955

SCREW

$4.99

$

In Stock, Qty 20+

0

503 70 98-01

Husqvarna 503709801

DECAL 281XP

Note: 281 XP

$4.99

$

Usually ships in 3-10 days

0

503 48 48-01

Husqvarna 503484801

STARTER PULLEY

$20.99

$

In Stock, only 1 left!

0

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, Qty 5

0

501 81 01-05

Husqvarna 501810105

STARTER/HOUSING

$31.99

$

Usually ships in 3-10 days

0

501 81 00-06

Husqvarna 501810006

STARTER ASS'Y

$100.99

$

Usually ships in 3-10 days

0

729 57 09-01

Husqvarna 729570901

Screw

$

$

Not available

503 20 03-10

Husqvarna 503200310

BOLT W/WASHER

$

$

Not available

503 70 98-03

Husqvarna 503709803

Decal 288xpg

Note: 288 XPG

$

$

Not available

501 63 06-01

Husqvarna 501630601

SLEEVE

$10.99

$

In Stock, Qty 11

0

501 52 95-02

Husqvarna 501529502

WASHER

$6.99

$

In Stock, only 2 left!

0

503 23 43-02

Husqvarna 503234302

WASHER

$7.49

$

In Stock, only 3 left!

0
