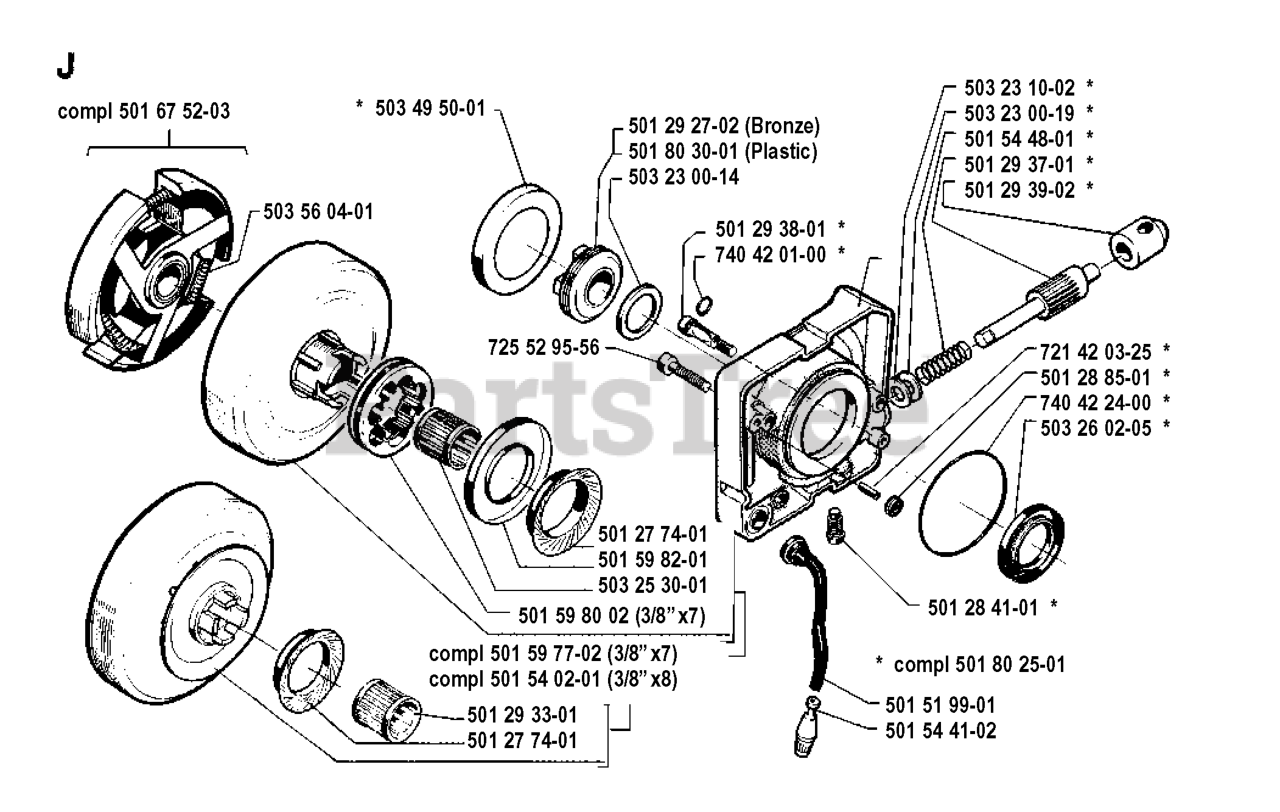

288 - Husqvarna Chainsaw (SN: 19900100001 - 19911400000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

CLUTCH & OIL PUMP Parts Diagram

  • Title
501 67 52-03

Husqvarna 501675203

CLUTCH CPL
(Superseded to 503471901)

$

$

Not available

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 1 left!

0

501 27 74-01

$

$

Not available

503 25 30-01

Husqvarna 503253001

SUPPORT BUSHING

$13.99

$

Usually ships in 3-10 days

0

501 29 39-02

$

$

Not available

501 29 38-01

$

$

Not available

740 42 01-00

$4.99

$

Usually ships in 3-10 days

0

501 29 33-01

Husqvarna 501293301

NEEDLE BEARING

$

$

Not available

503 56 04-01

$

$

Not available

501 29 27-02

Husqvarna 501292702

DRIVE GEAR BRONZE

Note: BRONZE

$

$

Not available

725 52 95-56

Husqvarna 725529556

SCREW MC6S 4X20
(Superseded to 503202620)

$3.49

$

Usually ships in 3-10 days

0

501 51 99-01

$11.99

$

Usually ships in 3-10 days

0

501 28 85-01

$8.99

$

In Stock, only 1 left!

0

503 23 00-19

Husqvarna 503230019

WASHER 6.6X11

$3.49

$

In Stock, only 1 left!

0

501 54 02-01

Husqvarna 501540201

CLUTCH DRUM 3/8 X 8 SPUR

Note: 3/8 X8

$

$

Not available

503 23 10-02

Husqvarna 503231002

WASHER 6.6X11

$3.49

$

In Stock, only 1 left!

0

503 23 00-14

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$4.99

$

In Stock, Qty 8

0

503 26 02-05

Husqvarna 503260205

SEALING RING

$21.99

$

In Stock, only 4 left!

0

501 59 77-02

Husqvarna 501597702

28094 DRUM
(Superseded to 640200093)

Note: 3/8 X7

$

$

Not available

501 80 25-01

Husqvarna 501802501

OIL PUMP
(Superseded to 503698101)

$136.99

$

Usually ships in 3-10 days

0

501 80 30-01

Husqvarna 501803001

WORM WHEEL

Note: PLASTIC

$7.99

$

Usually ships in 3-10 days

0

501 59 80 02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8 X7

$8.49

$

In Stock, Qty 9

0

501 29 37-01

Husqvarna 501293701

Pump Plunger

$

$

Not available

721 42 03-25

Husqvarna 721420325

SPRING PIN 3X6

$3.49

$

Usually ships in 3-10 days

0

740 42 24-00

$3.49

$

In Stock, Qty 10

0

501 54 48-01

$4.99

$

Usually ships in 3-10 days

0

501 59 82-01

$

$

Not available

501 28 41-01

Husqvarna 501284101

CONTROL SCREW

$

$

Not available

503 49 50-01

Husqvarna 503495001

DUST PROTECTION

$

$

Not available
