288 - Husqvarna Chainsaw (1993-09) Oil Pump/Clutch Parts Diagram

Chainsaw

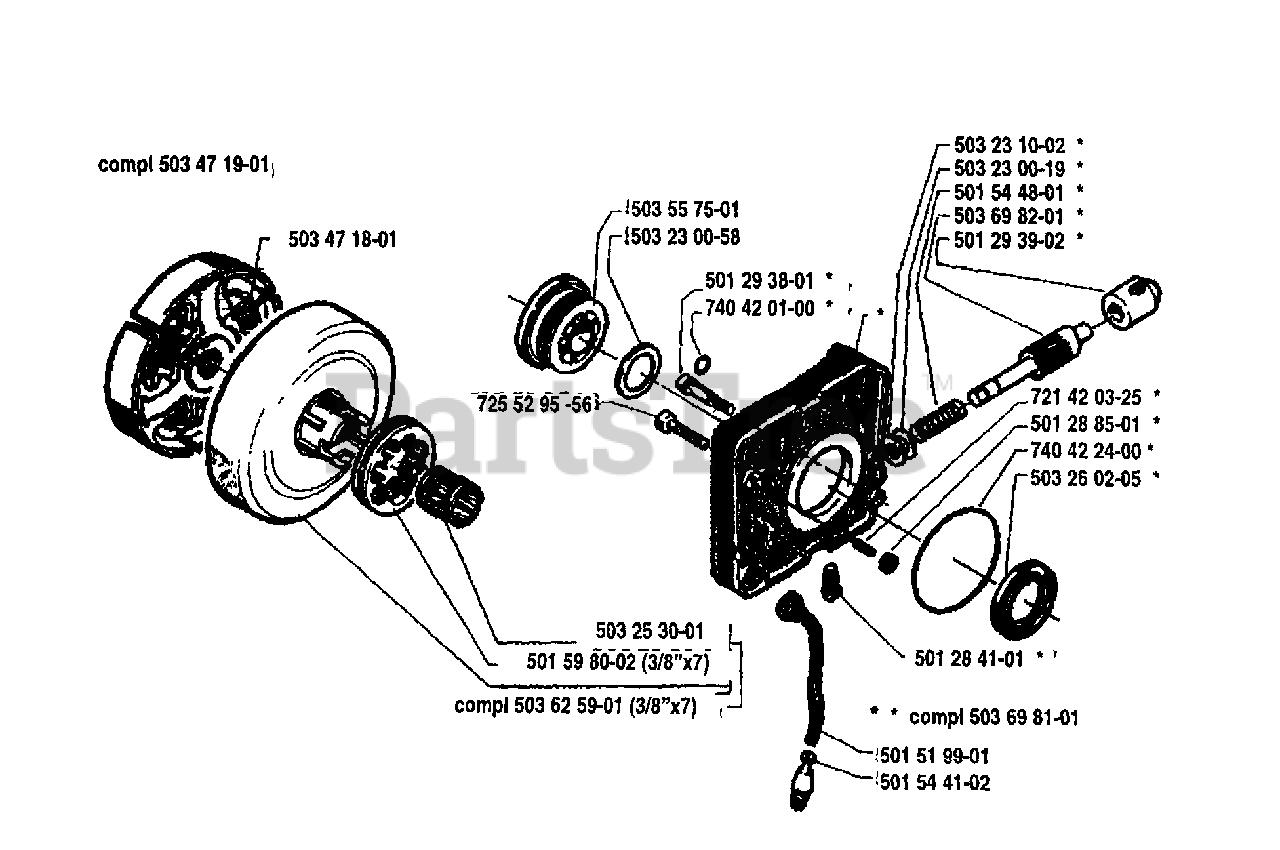

Oil Pump/Clutch Parts Diagram

  • Title

503471901

Husqvarna 503471901

CLUTCH CPL
(Superseded to 503701501)

$

$

Not available

503471801

Husqvarna 503471801

SPRING

$8.99

$

In Stock, Qty 6

0

725529556

Husqvarna 725529556

SCREW MC6S 4X20
(Superseded to 503202620)

$3.49

$

In Stock, only 2 left!

0

503253001

Husqvarna 503253001

SUPPORT BUSHING

$13.99

$

Usually ships in 3-10 days

0

501598002

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$8.49

$

In Stock, Qty 5

0

503625901

Husqvarna 503625901

CLUTCH DRUM CPL 3/8 7T
(Superseded to 503625903)

$52.99

$

Usually ships in 3-10 days

0

501284101

Husqvarna 501284101

CONTROL SCREW

$

$

Not available

501519901

Husqvarna 501519901

OIL HOSE

$11.99

$

Usually ships in 3-10 days

0

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0

503698101

Husqvarna 503698101

OIL PUMP

$136.99

$

Usually ships in 3-10 days

0

721420325

Husqvarna 721420325

SPRING PIN 3X6

$3.49

$

Usually ships in 3-10 days

0

501288501

Husqvarna 501288501

X-RING

$8.99

$

In Stock, only 1 left!

0

740422400

Husqvarna 740422400

O-RING

$3.49

$

In Stock, Qty 11

0

503260205

Husqvarna 503260205

SEALING RING

$21.99

$

In Stock, Qty 5

0

501293902

Husqvarna 501293902

BUSHING

$

$

Not available

503698201

Husqvarna 503698201

PUMP PISTON

$22.99

$

Usually ships in 3-10 days

0

501544801

Husqvarna 501544801

SPRING

$4.99

$

Usually ships in 3-10 days

0

740420100

Husqvarna 740420100

O-RING

$4.99

$

Usually ships in 3-10 days

0

501293801

Husqvarna 501293801

SCREW

$

$

Not available

503557501

Husqvarna 503557501

WORM GEAR

$11.99

$

In Stock, only 1 left!

0

503230058

Husqvarna 503230058

WASHER

$4.99

$

In Stock, Qty 9

0

5032310020

Husqvarna 5032310020

$

$

Currently unavailable

503230019

Husqvarna 503230019

WASHER 6.6X11

$3.49

$

In Stock, only 1 left!

0
