288 (190-288-100) - Cub Cadet Hydraulic Angling att Hydraulic Angling Parts Diagram

Hydraulic Angling

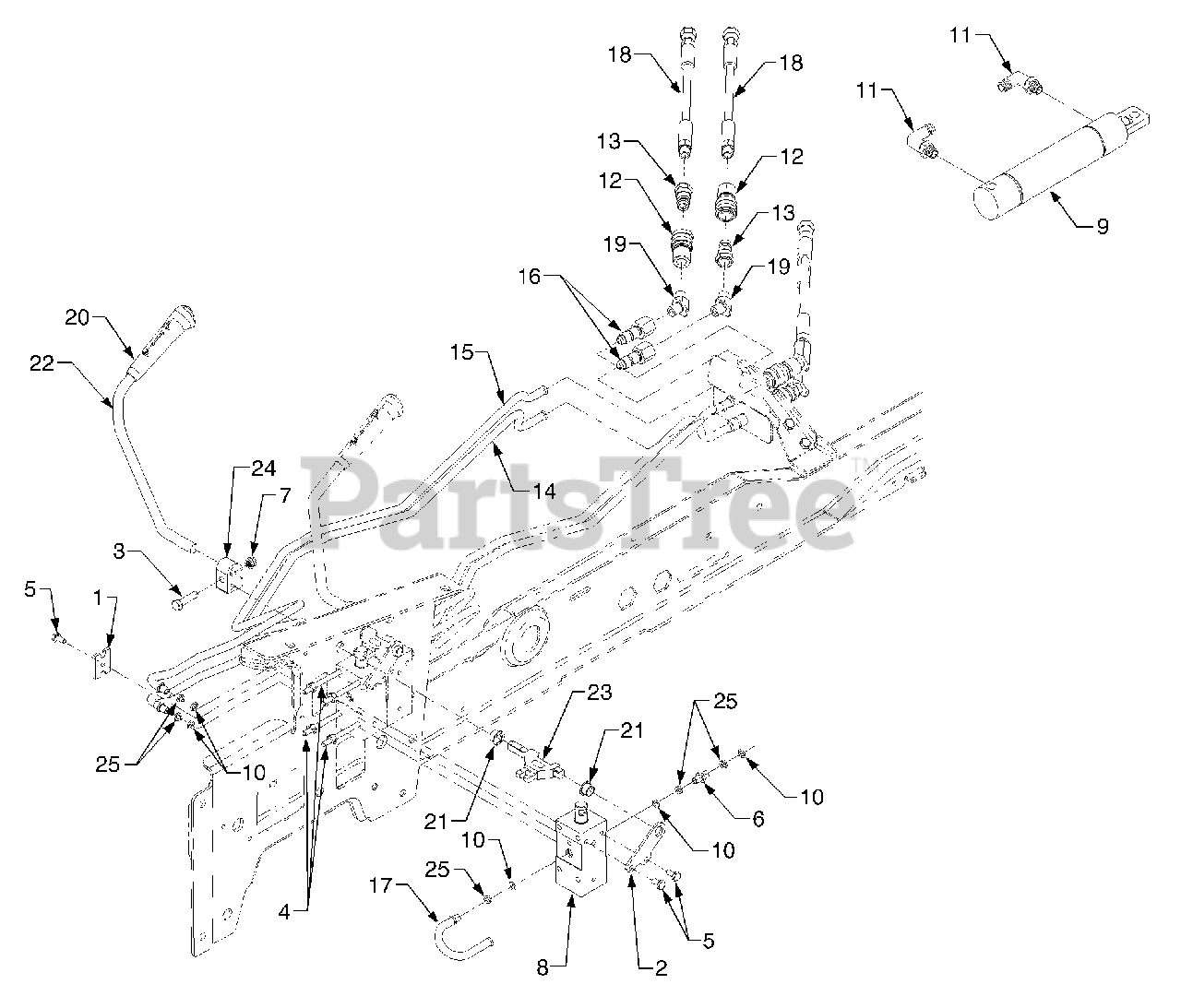

Hydraulic Angling Parts Diagram

  • Title

1

Cub Cadet 703-1803

Clamp, Double Valve
(Superseded to 903-1803)

$

$

Not available

2

Cub Cadet 703-3154

Bracket, Lift Valve
(Superseded to 703-3154-0637)

Variations

Cub Cadet 703-3154-0637

Lift Valve Bracket - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0528

Screw, Hex Cap 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1656

Screw, Hex Cap 1/4-20 x 6.0 GR5

$

$

Not available

5

Cub Cadet 710-3013

Screw, Hex Cap 1/4-20 x .5 GR5

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 711-3294

Fitting, Union

$36.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 717-3452

Valve Assembly, Hydraulic
(Superseded to 717P3452)

$473.99

$

In Stock, only 1 left!

0

9

Cub Cadet 717-3457

Cylinder, Hitch Angling

$

$

Not available

10

Cub Cadet 721-3021

O-Ring, .301 ID x .070 Dia
(Superseded to 921-3021)

$3.99

$

In Stock, Qty 12

0

11

Cub Cadet 727-3012

Elbow, 90 Degree

$26.99

$

In Stock, only 4 left!

0

12

Cub Cadet 727-3014

Fitting, Body Coupling

$106.99

$

In Stock, only 1 left!

0

Cub Cadet 731-3022

Cap, Protective

$20.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 727-3023

Fitting, Nose Coupling

$51.99

$

In Stock, only 3 left!

0

Cub Cadet 727-3024

Cap, Coupling

$57.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 727-3143

Tube, Hydraulic Angle (Left)

$105.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 727-3144

Tube, Hydraulic Angle (Right)

$110.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 727-3145

Fitting, Bulkhead, 3/8 Tube

$

$

Not available

17

Cub Cadet 727-3150

Tube, Hyd. Return, Aux. Valve #2

$47.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 727-3158

Hose, Angle

$93.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 727-3166

Fitting, Street Elbow, 45 Degree

$53.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-3259

Knob, Valve Handle

$19.99

$

In Stock, only 2 left!

0

21

Cub Cadet 741-0491

Bearing, Nylon Flange, .5 ID

$5.49

$

In Stock, only 4 left!

0

22

Cub Cadet 747-3351A

Handle, Hydraulic Valve, Aux #2

$46.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 748-3081A

Link, Lift

$46.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 748-3082

Clamp, Handle

$36.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 721-0492

O-Ring, Backup .327 x .433 x .05

$4.49

$

In Stock, Qty 5

0
