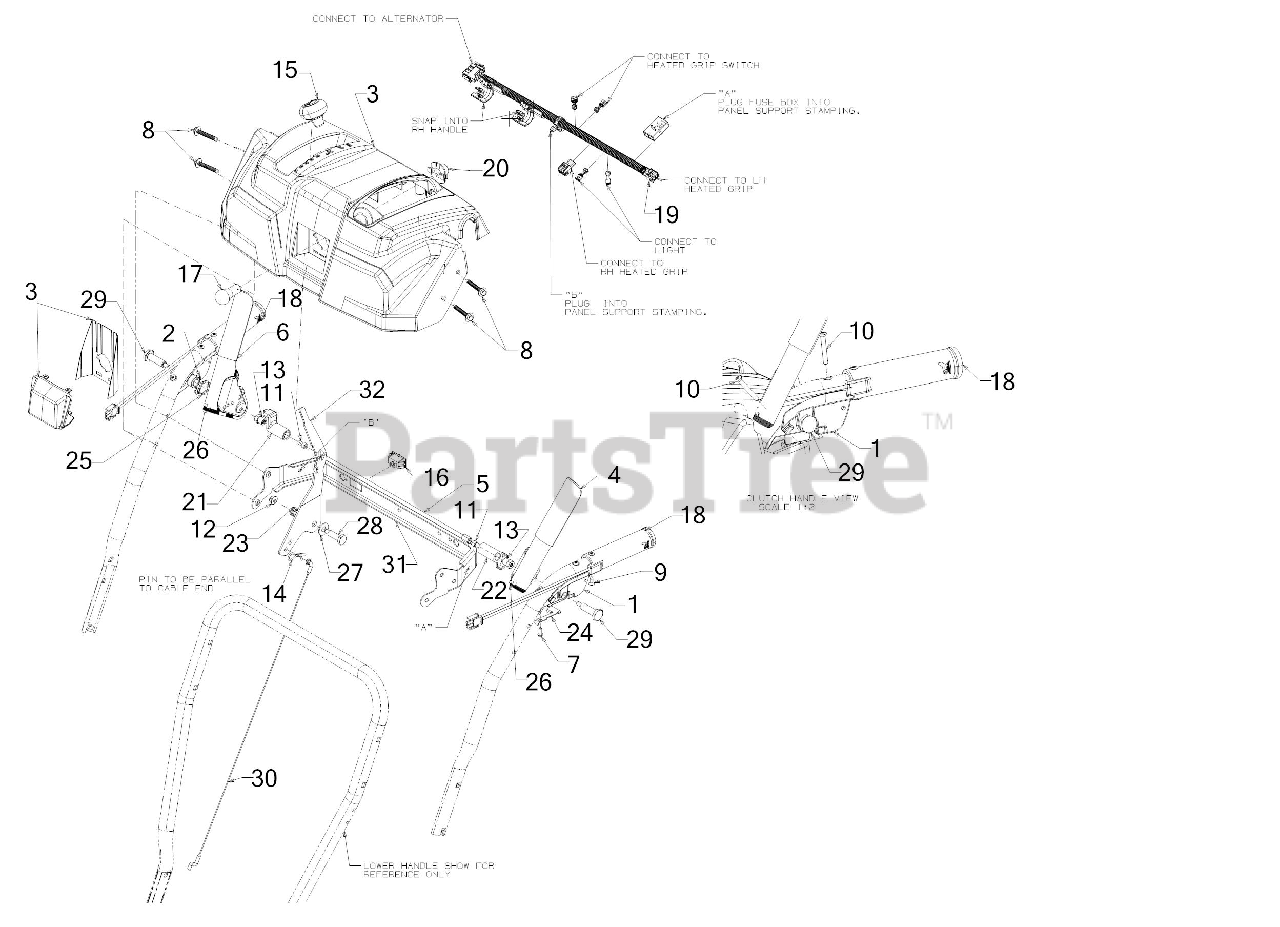

2860 (31AM6CP4711) - Troy-Bilt Storm 28" Snow Thrower (2017) Handle Panel Parts Diagram

Storm 28" Snow Thrower

Handle Panel Parts Diagram

  • Title

1

Troy-Bilt 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 931-04181A

HANDLE PANEL ASSEMBLY (TROY-BILT)

$59.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 731-05319

LENS

Note: (Not Shown)

$13.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 684-04105C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 684-04250

PIVOT ROD

$12.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 684-05226

ENGAGEMENT HANDLE ASSEMBLY (RH) (BLACK)
(Superseded to 684-05226A)

$29.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0837

SCREW #10-16 x .625

$4.49

$

In Stock, Qty 6

0

10

Troy-Bilt 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

Troy-Bilt 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

12

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 725-04393

HEATED GRIP SWITCH

$16.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 725-05326

LAMP-#1683

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 925-06107

HARNESS

$78.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 925-06839

HEATED GRIPS HARNESS

$70.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 925-1649

HEADLIGHT SOCKET
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 731-04894D

LOCK PLATE

$5.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

23

Troy-Bilt 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

24

Troy-Bilt 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

26

Troy-Bilt 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

$20.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 790-00248D

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00248D-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 790-00311C-0637

SHIFT LEVER

$27.99

$

In Stock, only 1 left!

0
