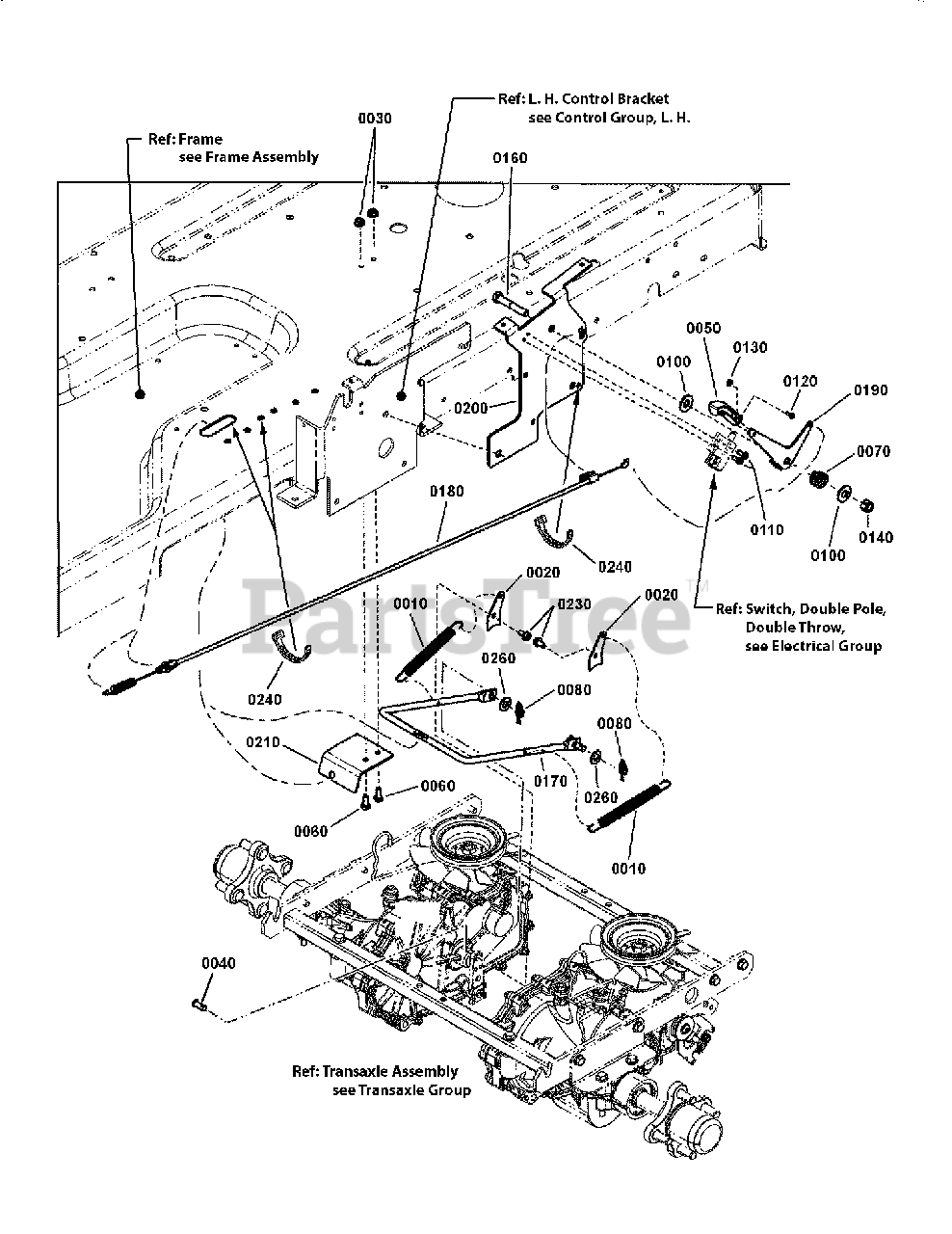

285Z (RZT 27460) (7800767-01) - Snapper 46" Zero-Turn Mower, 27hp Park Brake Group, RZT 27460 Parts Diagram

46" Zero-Turn Mower, 27hp

Park Brake Group, RZT 27460 Parts Diagram

  • Title
0010

Snapper 703144

SPRING, Extension, 0.562 OD x 4.250 LG, .049 Wire, Zinc/Clear

$5.99

$

In Stock, only 4 left!

0

0020

Snapper 7301092BMYP

TAB, Spring, Park Brake

$14.99

$

In Stock, only 1 left!

0

0030

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 9

0

0040

Snapper 7014779YP

CLEVIS PIN, 5/16 X 3/4, ZP

$6.49

$

Usually ships in 2-12 days

0

0050

Snapper 7023655YP

LEVER, Throttle Control

$

$

Not available

0060

Snapper 703338

SCREW, 1/4-20 X 0.625, Hex Head Cap, GR5, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper 7028036YP

SPRING, Friction Pack

$6.99

$

Usually ships in 2-12 days

0

0080

Snapper 704030

PIN, 5/16 X 1.044, Self-Locking Cotter, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0100

Snapper 7090517SM

WASHER, 7/16" ID X 1" OD X .084", Flat, YZ

$4.49

$

In Stock, Qty 8

0

0110

Snapper 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 11

0

0120

Snapper 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, only 4 left!

0

0130

Snapper 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0140

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0170

Snapper 7400308YP

WELDMENT, Park Brake Rod, ZT

$62.99

$

Usually ships in 2-12 days

0

0180

Snapper 7103792YP

CABLE, Park Brake

$33.99

$

In Stock, only 2 left!

0

0190

Snapper 7301074YP

LEVER, Park Brake, YZ

$10.99

$

Usually ships in 2-12 days

0

0200

Snapper 7301075BMYP

BRACKET, Lever, Park Brake

$22.99

$

Usually ships in 2-12 days

0

0210

Snapper 7301086BMYP

BRACKET, Cable, Park Brake

$7.49

$

Usually ships in 2-12 days

0

0230

Snapper 704130

SCREW, 1/4-20 X .500, Hex HD, Self-Tap, Zinc/Clear

$3.99

$

In Stock, Qty 11

0

0240

Snapper 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0260

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0
