285Z (RZT 27460) (7800767-01) - Snapper 46" Zero-Turn Mower, 27hp Fuel Tank Group Parts Diagram

46" Zero-Turn Mower, 27hp

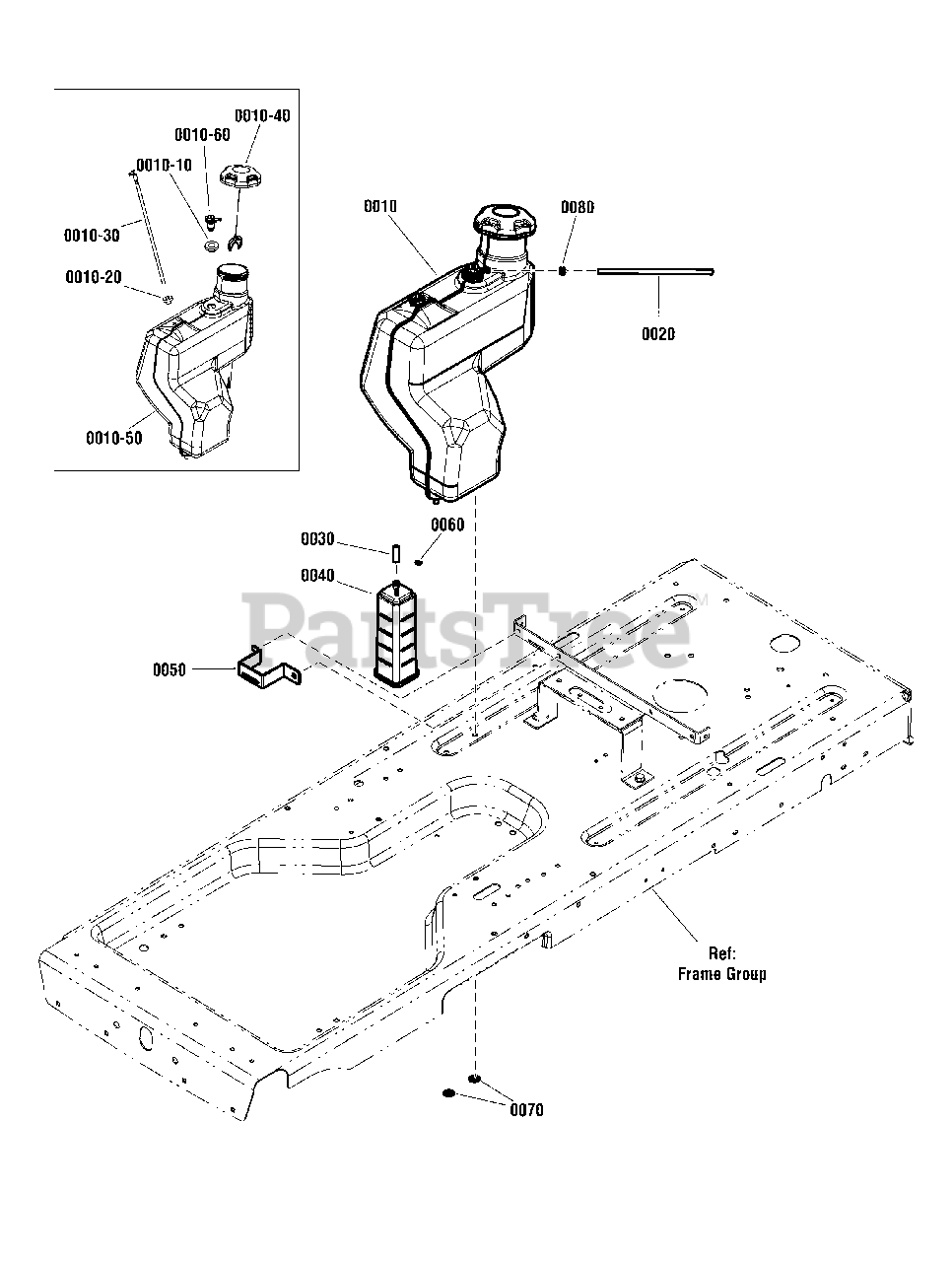

Fuel Tank Group Parts Diagram

  • Title

0010

Snapper 7104646YP

ASSEMBLY, Tank & Tube

$292.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 799624

GROMMET, Tank, .74" ID, .94" OD

$8.99

$

In Stock, Qty 15

0

0010-20

Snapper 1654930SM

BUSHING, Fuel Tank, Red Rubber

$7.99

$

In Stock, Qty 20+

0

0010-30

Snapper 7103815YP

ASSEMBLY, Elbow, Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

0010-40

Snapper 7104639YP

CAP, Fuel, Emissions, 3-1/2 w/Tether

$48.99

$

Usually ships in 2-12 days

0

0010-50

Snapper 7104646YP

ASSEMBLY, Tank & Tube

$292.99

$

Usually ships in 2-12 days

0

0010-60

Snapper 7104638YP

ASSEMBLY, Remote Vent, No Valve

$

$

Not available

0020

Snapper 7200141YP

HOSE, Vapor, (5MM IS x 9MM OD x 16 Long)

$12.99

$

Usually ships in 2-12 days

0

0030

Snapper 7014361YP

CAP, Lift Rod, .343 ID X 1" Long

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 7101425YP

CANISTER

$45.99

$

In Stock, only 1 left!

0

0050

Snapper 7301099BZYP

BRACKET, Canister, Vapor Black

$16.99

$

Usually ships in 2-12 days

0

0060

Snapper 795230

CLAMP, Hose, .2992" ID, Wire

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper 703986

RETAINER, 3/8", Pushnut, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 7105075YP

CLAMP, Hose, .375 ID., .31 Wide

$6.99

$

Usually ships in 2-12 days

0
