285Z (RZT 27460) (7800767-01) - Snapper 46" Zero-Turn Mower, 27hp Engine & Emissions Group Parts Diagram

46" Zero-Turn Mower, 27hp

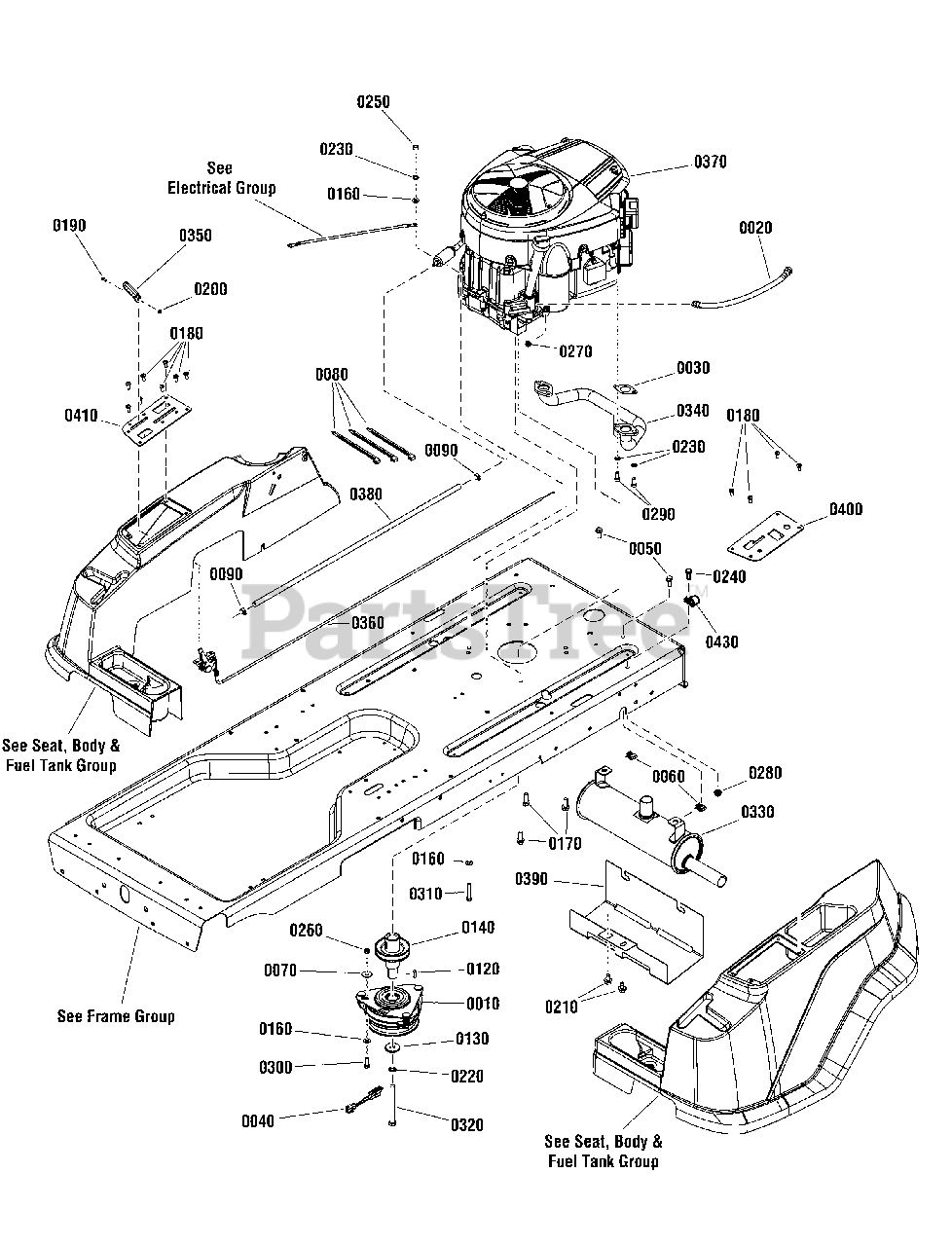

Engine & Emissions Group Parts Diagram

  • Title

0010

Snapper 1687746YP

ELECTRIC CLUTCH, OGURA JD-11 #504586

$376.99

$

In Stock, only 1 left!

0

0020

Snapper 1726498SM

HOSE, Oil Drain, .375 ID X 16.5 Long

$26.99

$

Usually ships in 2-12 days

0

0030

Snapper 1731214SM

GASKET, Exhaust (B&S 273485)

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 1737462YP

HARNESS, Jumper, 4" LG

$9.99

$

In Stock, only 1 left!

0

0050

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0060

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0070

Snapper 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, only 3 left!

0

0080

Snapper 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 7016755YP

KEY, 1/4 Square x 3/4"

$4.99

$

Usually ships in 2-12 days

0

0130

Snapper 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

In Stock, only 1 left!

0

0140

Snapper 7043343SM

PULLEY, Engine, 3.5 OD, 1 ID, 4.92 Tall

$114.99

$

In Stock, only 1 left!

0

0160

Snapper 7033500

WASHER, 5/16, Flat SAE, Zinc/Clear

$

$

Currently unavailable

0170

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

0180

Snapper 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0190

Snapper 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, only 4 left!

0

0200

Snapper 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0210

Snapper 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0230

Snapper 703116

WASHER, 5/16 Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0240

Snapper 704287

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ

$3.99

$

In Stock, Qty 9

0

0250

Snapper 703465

NUT, 5/16-18, Hex, GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0260

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 19

0

0270

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0280

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0290

Snapper 7091738SM

SET SCREW, 5/16-18 x 3/4 Socket Head, GR8, BZ

$4.99

$

In Stock, Qty 14

0

0300

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0310

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0320

Snapper 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5 YZ

$

$

Not available

0330

Snapper 7103411YP

MUFFLER, RZT

$231.99

$

Usually ships in 2-12 days

0

0340

Snapper 7103414YP

MANIFOLD, B&S V-Twin

$96.99

$

In Stock, only 1 left!

0

0350

Snapper 7103888YP

KNOB, Throttle, Red

$8.49

$

Usually ships in 2-12 days

0

0360

Snapper 7104211YP

Control, Throttle, B&S V-Twin 44", 1.15" Throw

$45.99

$

Usually ships in 2-12 days

0

0370

Snapper 44Q777-5141-G1

ENGINE, 27HP B&S Twin Cyl., EFM

Note: (used on 7800578)

$

$

Currently unavailable

0370

Snapper 44Q777-5141-G5

ENGINE, 27HP B&S Twin Cyl., EFM

Note: (used on 7800767)

$

$

Not available

0380

Snapper 7200140YP

HOSE, Fuel, 1/4 ID x 32"

$14.99

$

In Stock, only 1 left!

0

0390

Snapper 7301083BMYP

SHIELD, Muffler Heat

$46.99

$

Usually ships in 2-12 days

0

0400

Snapper 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0410

Snapper 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0430

Snapper 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0
