285Z (RZT 27460) (7800767-01) - Snapper 46" Zero-Turn Mower, 27hp 46" Deck Idler Group Parts Diagram

46" Zero-Turn Mower, 27hp

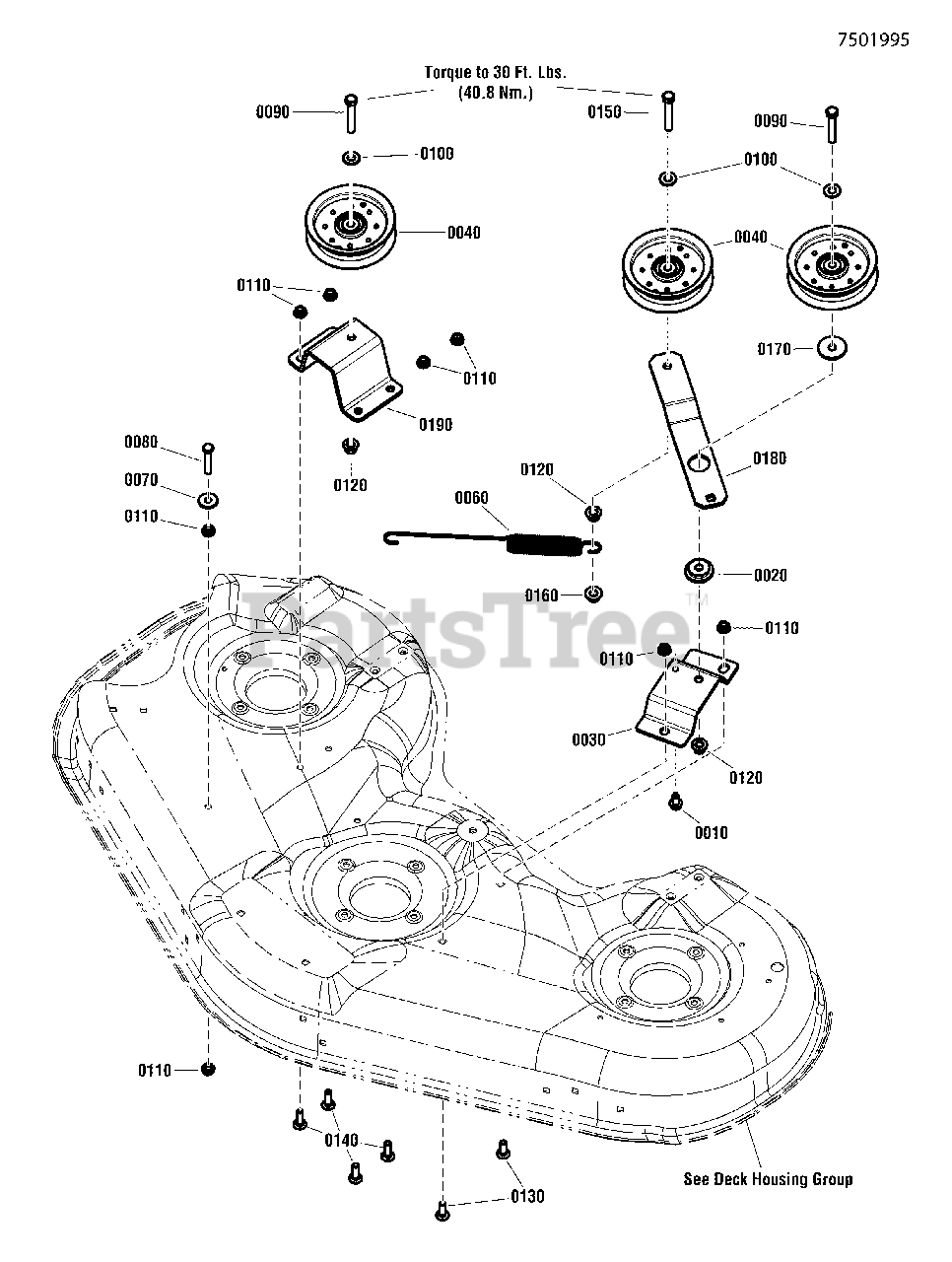

46" Deck Idler Group Parts Diagram

  • Title

0010

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 1714255SM

SPACER, .406" ID, 1.50" OD, .350" Thick, PM

$6.49

$

In Stock, Qty 17

0

0030

Snapper 1736437BMYP

BRACKET, Front Idler Mount

$21.99

$

Usually ships in 2-12 days

0

0040

Snapper 1736540YP

PULLEY, Flat Idler, 4.0", 3/8" ID BB

$35.99

$

In Stock, only 3 left!

0

0060

Snapper 1737415YP

SPRING, 11.41" Long, 32.5 Coils, .114 Dia Wire, PTO

$12.99

$

In Stock, only 1 left!

0

0070

Snapper 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0100

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0120

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0130

Snapper 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0140

Snapper 703800

BOLT, 5/16-18 X 1.0, Short Neck Carriage, ZC/CL

$3.99

$

In Stock, Qty 7

0

0150

Snapper 1933685SM

SCREW, 3/8-16 x 2-1/2, G5, Hex Head

$5.49

$

In Stock, only 1 left!

0

0160

Snapper 1960339SM

NUT, 3/8-16, Hex Flange

$

$

Not available

0170

Snapper 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 7301100BMYP

ARM, Idler, 46 / 52, RZT

$

$

Not available

0190

Snapper 7301152BMYP

BRACKET, Rear Fixed Idler, 46"

$

$

Not available
