285Z (RZT 27460) (7800767-01) - Snapper 46" Zero-Turn Mower, 27hp 46" Deck Group Parts Diagram

46" Zero-Turn Mower, 27hp

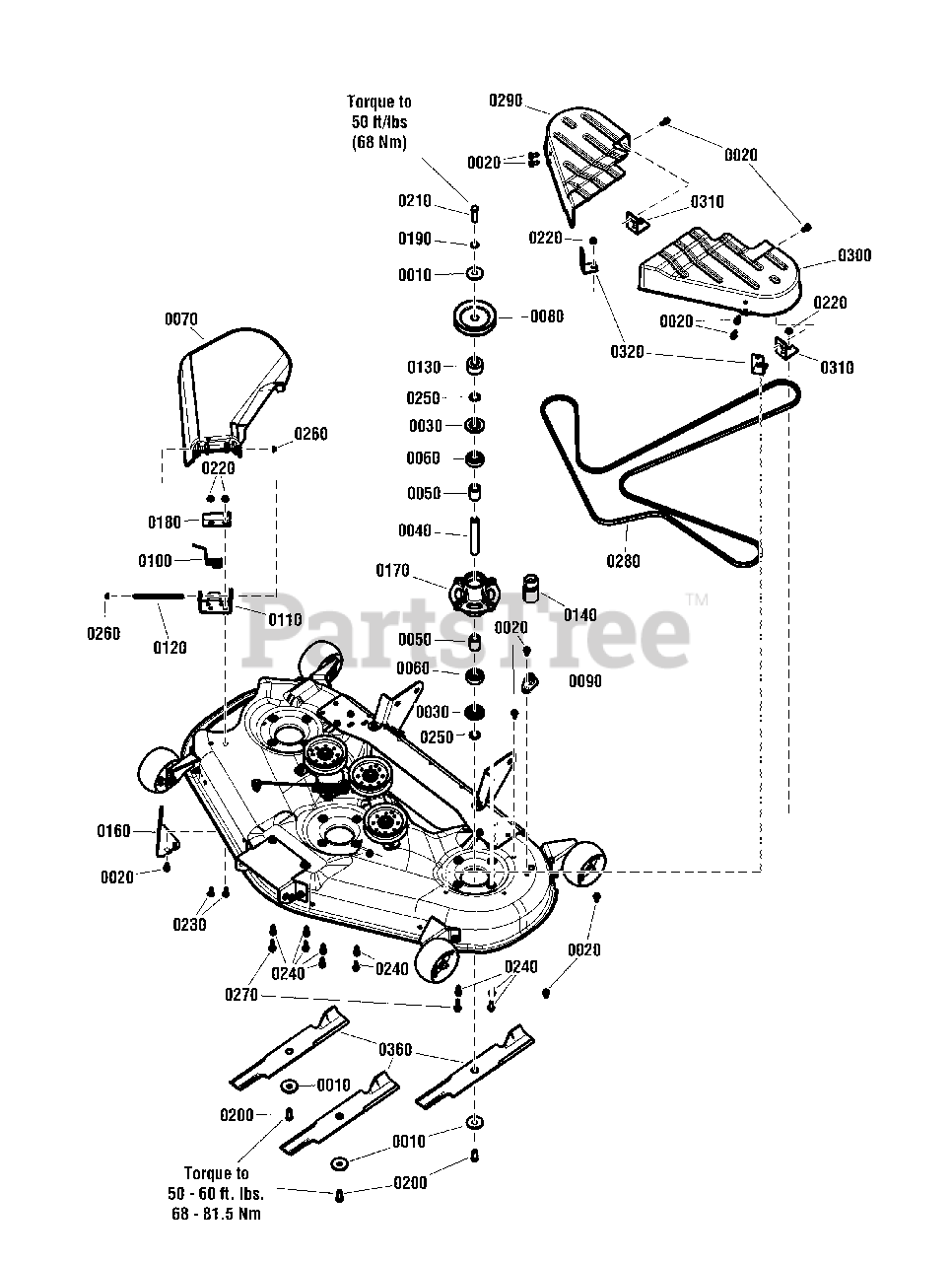

46" Deck Group Parts Diagram

  • Title

0010

Snapper 1656916SM

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black

$7.49

$

In Stock, Qty 20+

0

0020

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1735323YP

SHIELD, Arbor, 2.050 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0040

Snapper 1735326YP

SHAFT, Spindle 20MM Dia. 134.60 MM Long
(Superseded to 1760276YP)

$27.99

$

In Stock, only 2 left!

0

0050

Snapper 1735328YP

SPACER, Bearing Powdered Metal

$6.49

$

In Stock, only 1 left!

0

0060

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070

Snapper 1687750YP

DEFLECTOR, Discharge, Plastic 46/52 Decks

$37.99

$

In Stock, Qty 20+

0

0080

Snapper 1735686YP

PULLEY, 4.6 OD, Split

$19.99

$

In Stock, only 3 left!

0

0090

Snapper 1756247YP

ADAPTOR, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper 1736364YP

SPRING, Torsion, Deflector, 2.16 Long

$8.49

$

Usually ships in 2-12 days

0

0110

Snapper 1736365BMYP

PIVOT, Hinge

$12.99

$

In Stock, only 1 left!

0

0120

Snapper 1736366YP

ROD, Hinge, .313 Dia. X 5.6 Long, Zinc Plated

$11.99

$

Usually ships in 2-12 days

0

0130

Snapper 1736445YP

SPACER, Pulley, Powdered Metal

$13.99

$

In Stock, only 1 left!

0

0140

Snapper 1756246YP

CONNECTOR, Washout Port 46/52" Black Poly

$15.99

$

Usually ships in 2-12 days

0

0160

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0170

Snapper 1737352YP

HOUSING, Spindle, Cast Iron (Machined) w/Grease Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 11

0

0180

Snapper 1737359BMYP

PLATE, Deflector Closeoff

$8.49

$

In Stock, only 3 left!

0

0190

Snapper 704007

LOCKWASHER, .438, Spring, Black

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0210

Snapper 705424

CAPSCREW, Hex Head, 7/16-14 X 1 3/4
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0220

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0230

Snapper 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0240

Snapper 704146

SCREW, 5/16-18 X 1.0, Hex Washer Head Self-Tap, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0250

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 704028

PUSHNUT, 5/16, Cap, Zinc/Clear

$5.49

$

In Stock, only 4 left!

0

0270

Snapper 703167

SCREW, 5/16-18 x 1-1/4 Hex Washer Head Self-Tap

$3.99

$

In Stock, Qty 7

0

0280

Snapper 7103788YP

BELT, RZT, 46" Deck, EL A-Wedge Section, 143.35" Effective Length

$109.99

$

In Stock, only 2 left!

0

0290

Snapper 7104696YP

COVER, Spindle, 46"/52" Deck RH 285Z

$55.99

$

In Stock, only 2 left!

0

0300

Snapper 7104697YP

COVER, Spindle, 46"/52" Deck LH 285Z

$55.99

$

In Stock, only 2 left!

0

0310

Snapper 7301133BMYP

BRACKET, Rear Deck Cover Support 285Z

$14.99

$

Usually ships in 2-12 days

0

0320

Snapper 7301134BMYP

BRACKET, 46/52 Cover Mounting

$

$

Not available

0360

Snapper 1737228BZYP

BLADE, Mower, 16.13 LG, .807ID, 1.12 Lift, 46 Deck

$21.99

$

In Stock, Qty 20+

0
