285Z (RZT 27460) (7800767-00) - Snapper 46" Zero-Turn Mower, 27hp Front Axle Group, RZT 27460 Parts Diagram

46" Zero-Turn Mower, 27hp

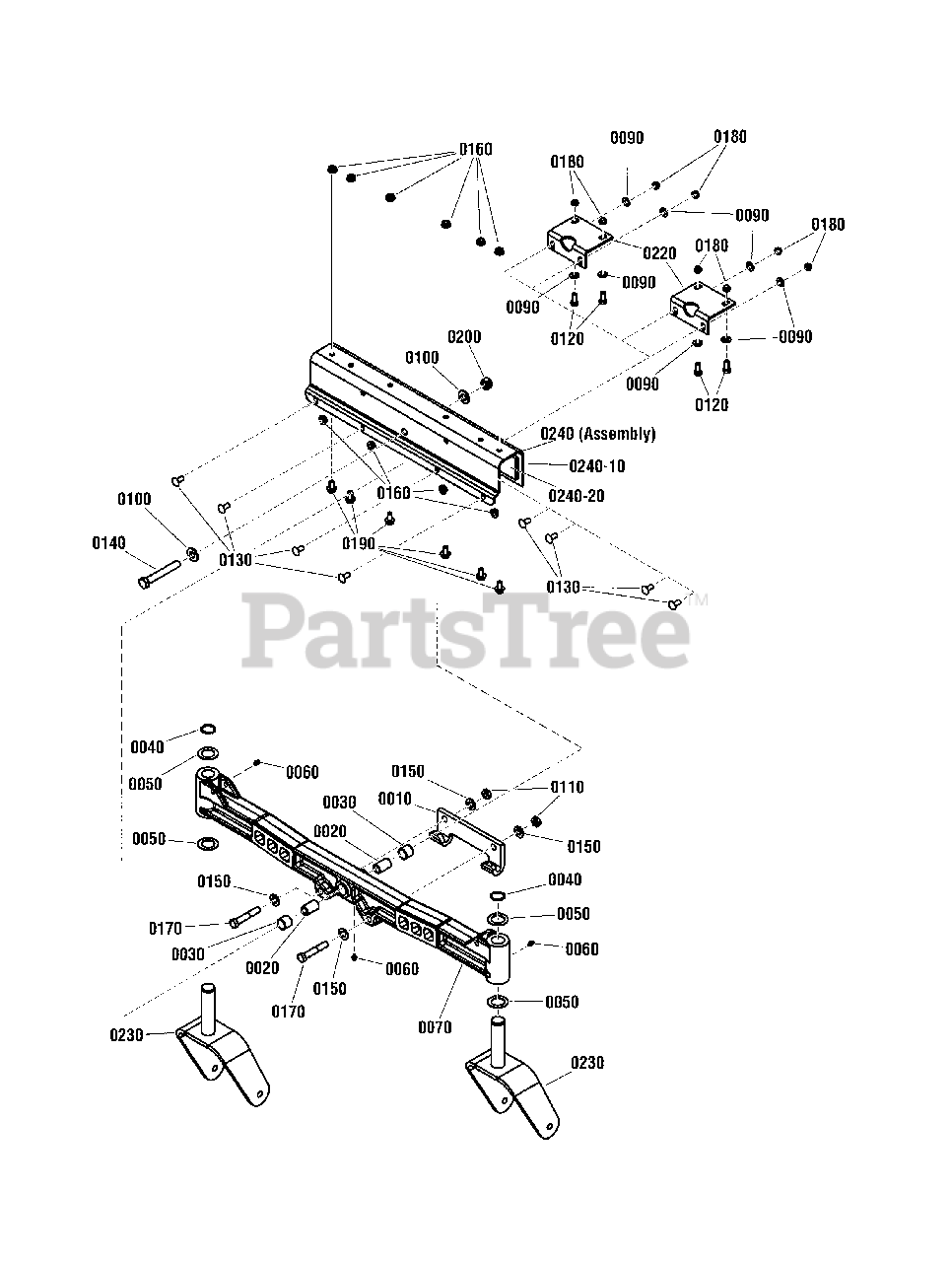

Front Axle Group, RZT 27460 Parts Diagram

  • Title
0010

Snapper 1721918ASM

HOOK, "J" Mower Hitch

$31.99

$

In Stock, Qty 9

0

0020

Snapper 7011309SM

SPACER, Axle Pivot

$7.49

$

Usually ships in 2-12 days

0

0030

Snapper 7012706SM

BEARING, Sleeve .875 OD

$10.99

$

In Stock, only 4 left!

0

0040

Snapper 703993

RETAINING RING, 1" External

$3.49

$

In Stock, Qty 14

0

0050

Snapper 7013855SM

WASHER, Thrust, 1" ID, 1.5" OD, .06 Thk

$7.49

$

In Stock, Qty 6

0

0060

Snapper 7013864SM

LUBE FITTING, Straight (3/16"press-fit)

$3.49

$

In Stock, Qty 12

0

0070

Snapper 7078124DYP

FRONT AXLE, Cast, Red

$296.99

$

Usually ships in 2-12 days

0

0090

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0100

Snapper 704123

WASHER, .531 ID X 1.063 OD X .094 Thk, Flat, ZC/CL

$4.49

$

In Stock, only 3 left!

0

0110

Snapper 703348

NUT, 7/16-20, Hex Jam Center Lock, GR B, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0120

Snapper 704287

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ

$3.99

$

In Stock, Qty 9

0

0130

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 7091558SM

SCREW, 1/2-13 x 3-1/2" Hex Head Cap, YZ

$4.99

$

In Stock, only 1 left!

0

0150

Snapper 703183

WASHER, .922 X .065 X .065, Flat, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0170

Snapper 7091703SM

SCREW, 7/16-20 x 2-1/2", Hex Head Cap Screw, GR 5, YZ

$7.99

$

Usually ships in 2-12 days

0

0180

Snapper 7091706SM

NUT, 5/16-18 Hex Top Lock, GR B

$3.99

$

Usually ships in 2-12 days

0

0190

Snapper 703823

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0200

Snapper 703894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ

$3.49

$

In Stock, Qty 9

0

0220

Snapper 7300004BMYP

BRACKET, Axle Support

$21.99

$

In Stock, only 1 left!

0

0230

Snapper 7400191DYP

WELDMENT, Caster Yoke & Spindle

$107.99

$

Usually ships in 2-12 days

0

0240

Snapper 7502054D

ASSEMBLY, Axle Bracket (incl. next two items)

$

$

Currently unavailable

0240-10

Snapper 7078126DYP

BRACKET, Axle, Red

$43.99

$

Usually ships in 2-12 days

0

0240-20

Snapper 7103773YP

PLATE, Friction, Adhesive Backed

$13.99

$

Usually ships in 2-12 days

0
