285Z (RZT 27460) (7800767-00) - Snapper 46" Zero-Turn Mower, 27hp 46" Deck Lift Group - w/Electric HOC Parts Diagram

46" Zero-Turn Mower, 27hp

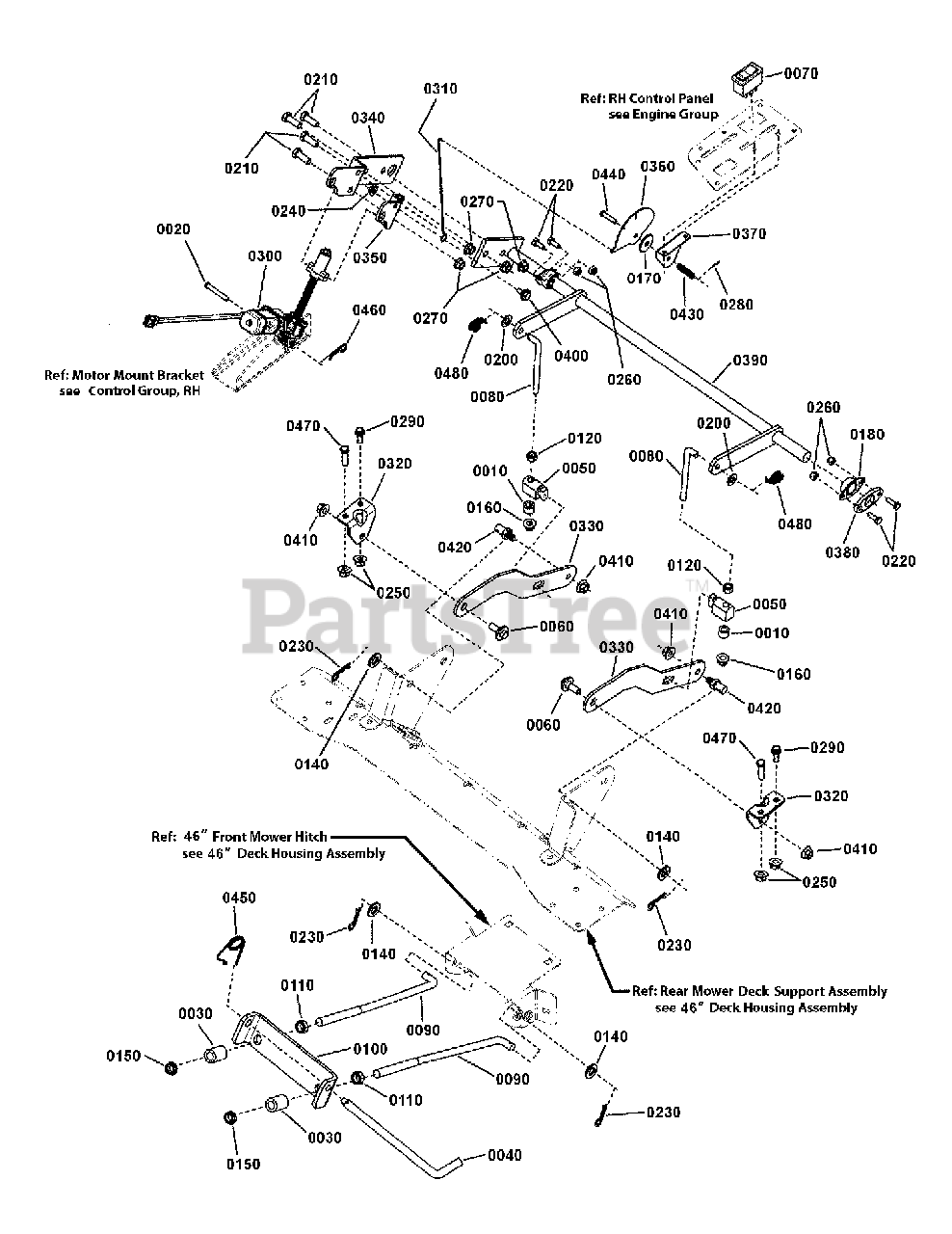

46" Deck Lift Group - w/Electric HOC Parts Diagram

  • Title

0010

Snapper 1666294SM

SPACER, .385 ID, .669 OD, .455 LG, PM Yel

$4.99

$

In Stock, Qty 20+

0

0020

Snapper 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0040

Snapper 1731414SM

ROD, Latch, 1/2 x 9" Long, 42"

$14.99

$

Usually ships in 2-12 days

0

0050

Snapper 1731894SM

TRUNNION, Powdered Metal, .406 ID Hole

$9.99

$

In Stock, only 3 left!

0

0060

Snapper 1732129SM

BOLT, 3/8-16 x .94, Shoulder, BZ

$5.99

$

Usually ships in 2-12 days

0

0070

Snapper 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

In Stock, Qty 19

0

0080

Snapper 1734217SM

ROD, Mower Lift (3/8-16 thread) Yellow

$14.99

$

In Stock, Qty 5

0

0090

Snapper 1736081YP

ROD, Front Bail (1/2-13 thread) 46, 52 MWR

$12.99

$

Usually ships in 2-12 days

0

0100

Snapper 1737059BM

HANGER, FRONT - ECOAT
(Superseded to 1737059AYP)

$17.99

$

Usually ships in 2-12 days

0

0110

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

0120

Snapper 703577

NUT, 3/8-16, Hex Head, GR 2, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0160

Snapper 703158

NUT, 3/8-16, Hex Flange, ESNA, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 7023649YP

WASHER, 5/16" Nylon

$4.49

$

In Stock, only 2 left!

0

0180

Snapper 7026196SM

BEARING, Flange, .75 ID PM

$7.49

$

In Stock, only 2 left!

0

0200

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 703407

SCREW, 3/8-16 X 1.0, Hex Head Cap, GR5, Zinc/Clear

$11.99

$

In Stock, Qty 7

0

0220

Snapper 703925

SCREW, 1/4-20 x 3/4 Hex Head Cap, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 7

0

0230

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0240

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0250

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 703954

NUT, 1/4-20, GR5, Center Lock, Zinc/Clear
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0270

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 703464

PIN, 1/16 X 0.50 Cotter, GR 5 Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0290

Snapper 703823

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0300

Snapper 7103818YP

MOTOR, Actuator, Lift, Deck

$148.99

$

In Stock, Qty 13

0

0310

Snapper 7103956YP

ROD, Indicator, Height-Of-Cut

$9.99

$

In Stock, only 1 left!

0

0320

Snapper 7300028BMYP

BRACKET, Deck Hanger

$14.99

$

Usually ships in 2-12 days

0

0330

Snapper 7301098BMYP

BAR, Rear Lift

$28.99

$

In Stock, only 4 left!

0

0340

Snapper 7301104BMYP

BRACKET, Lift, Deck, Primary

$

$

Not available

0350

Snapper 7301105BMYP

BRACKET, Lift, Deck, Secondary

$15.99

$

Usually ships in 2-12 days

0

0360

Snapper 7301119BCYP

LEVER, Indicator, Height-Of-Cut

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 7301120BMYP

BRACKET, Indicator, Height-Of-Cut

$9.99

$

Usually ships in 2-12 days

0

0380

Snapper 7301125BMYP

SPACER, Bearing, .25"

$12.99

$

In Stock, only 2 left!

0

0390

Snapper 7400011BMYP

WELDMENT, Deck Lift, 38/42
(Superseded to 1757866BMYP)

$193.99

$

In Stock, only 1 left!

0

0400

Snapper 720100

SHOULDER BOLT, 1/4-20 x 3/8"
(Superseded to 009X54MA)

$5.49

$

In Stock, only 1 left!

0

0410

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0420

Snapper 704054

PIN, 3/8-16 X .50,Threaded Shoulder, Zinc/Clear

$7.49

$

In Stock, Qty 20+

0

0430

Snapper 164X34MA

SPRING, Compression, .355" OD, 1.375" LG

$5.99

$

In Stock, Qty 14

0

0440

Snapper 578309MA

CLEVIS PIN, .25 x 1.09, Zinc/Clear

$5.49

$

In Stock, Qty 6

0

0450

Snapper 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 20+

0

0460

Snapper 703430

HAIRPIN, Quick, .080 Wire, 1.19LG, Zinc/Clear

$3.49

$

In Stock, only 1 left!

0

0470

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0480

Snapper 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 14

0
