285Z (RZT 26520) (7800765-01) - Snapper 52" Zero-Turn Mower, 26hp Fender Group Parts Diagram

52" Zero-Turn Mower, 26hp

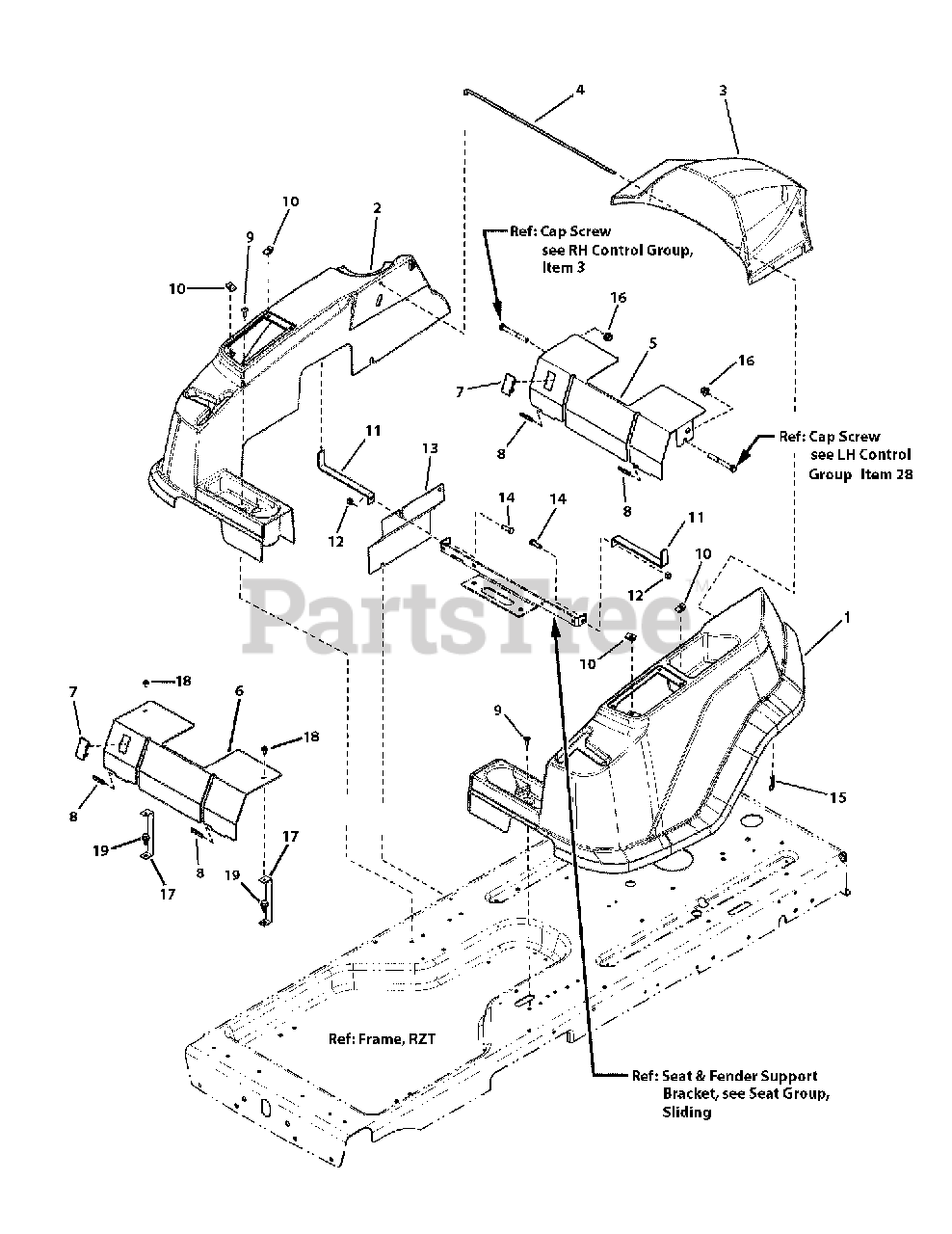

Fender Group Parts Diagram

  • Title

1

Snapper 7103776

FENDER, LH
(Superseded to 7103776YP)

$302.99

$

Usually ships in 2-12 days

0

2

Snapper 7103775

FENDER, RH
(Superseded to 7103775YP)

$347.99

$

Usually ships in 2-12 days

0

3

Snapper 7103777

COVER, Engine
(Superseded to 7103777YP)

$68.99

$

Usually ships in 2-12 days

0

4

Snapper 7103998

ROD, Pivot, Hood
(Superseded to 7103998YP)

$47.99

$

Usually ships in 2-12 days

0

5

Snapper 7301161

COVER, Battery, 285Z
(Superseded to 7301161BZYP)

Note: (used on 7800578 & 7800632 models)

$142.99

$

Usually ships in 2-12 days

0

6

Snapper 7301216BZ

COVER, Battery, w/Brkt Holes
(Superseded to 7301216BZYP)

Note: (used on7800765 & 7800767 models)

$27.99

$

Usually ships in 2-12 days

0

7

Snapper 1722611

PLUG, Switch Hole, Dash
(Superseded to 1722611SM)

$6.99

$

In Stock, only 1 left!

0

8

Snapper 7104514

STRIP, Trim, 1.50
(Superseded to 7104514YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091246

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx)
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7301101BM

BRACKET, Support, Fender
(Superseded to 7301101BMYP)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper 7091298

NUT, 5/16-18 3B Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7301126BM

PLATE, Side, RH
(Superseded to 7301126BMYP)

$26.99

$

Usually ships in 2-12 days

0

14

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

15

Snapper 1722460

HAIR PIN, .080 Wire x 1.19 LG x .25/.38 Dia
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

16

Snapper 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7301217BZ

BRACKET, Battery Cover
(Superseded to 7301217BZYP)

$12.99

$

Usually ships in 2-12 days

0

18

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, BZ
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 7

0

19

Snapper 720353

SCREW, 3/8-16 x 3/4" Hex Washer Head Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0
