285Z (RZT 26520) (7800765-01) - Snapper 52" Zero-Turn Mower, 26hp Control Group, Left Hand (7502144) Parts Diagram

52" Zero-Turn Mower, 26hp

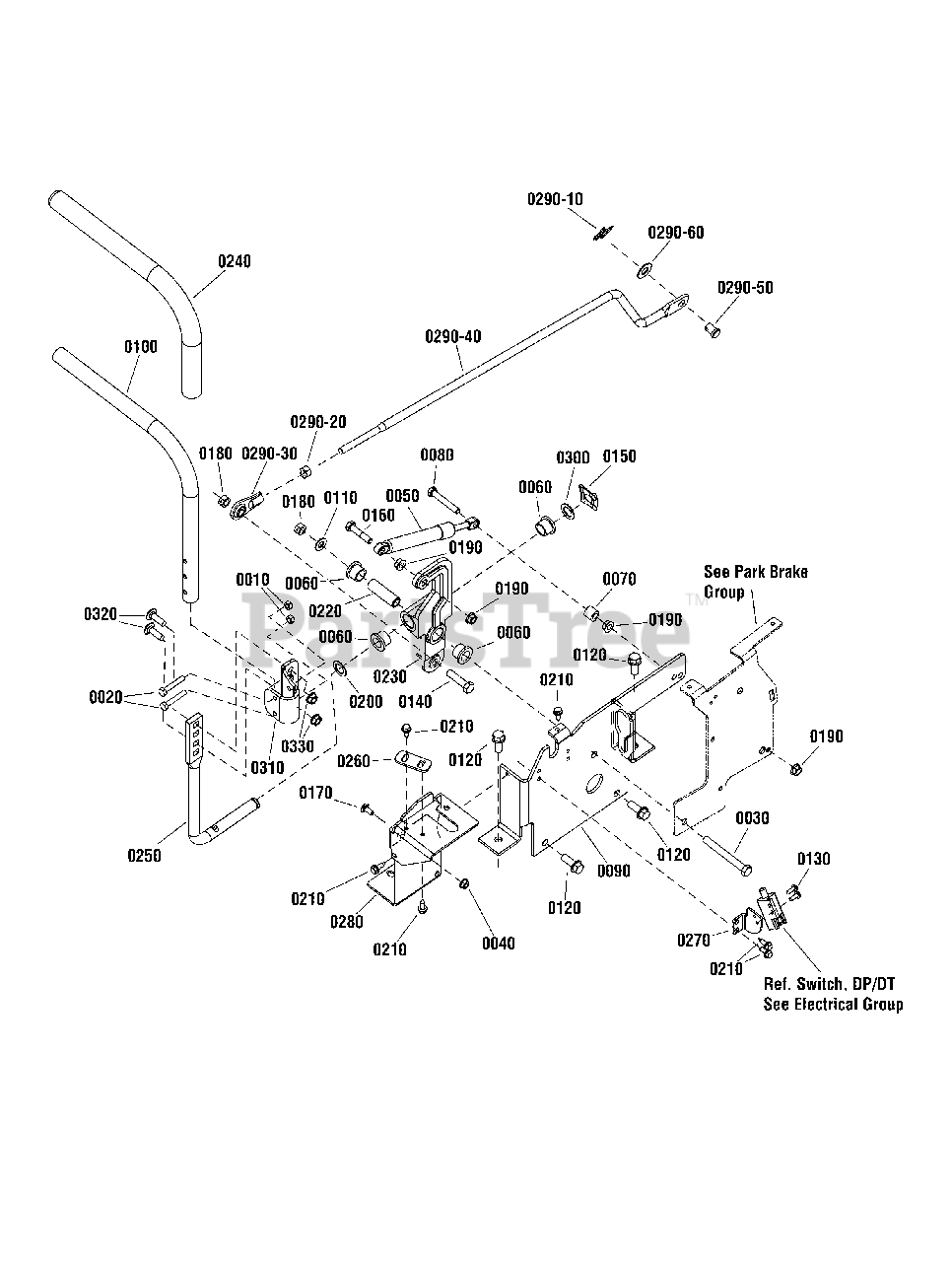

Control Group, Left Hand (7502144) Parts Diagram

  • Title

0010

Snapper 703954

NUT, 1/4-20, GR5, Center Lock, Zinc/Clear
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0020

Snapper 703234

SCREW, 1/4-20 X 1.5, Hex Head Cap, GR5, ZC/CL

$4.49

$

In Stock, only 4 left!

0

0030

Snapper 703874

SCREW, 3/8-16 X 3.250, Hex HD, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 11

0

0040

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0050

Snapper 5103511YP

DAMPENER, Control

$62.99

$

In Stock, Qty 16

0

0060

Snapper 7013874SM

BUSHING, Bronze, 5/8 x 5/8

$5.99

$

In Stock, Qty 5

0

0070

Snapper 7023206YP

SPACER, .625 OD x .380 ID x .564 L

$8.49

$

Usually ships in 2-12 days

0

0080

Snapper 703867

SCREW, 5/16-18 X 2.0, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0090

Snapper 7043302BMYP

BRACKET, Control, LH

$33.99

$

Usually ships in 2-12 days

0

0100

Snapper 7301168BMYP

HANDLE, Adjustable, Black

$45.99

$

In Stock, only 1 left!

0

0110

Snapper 1670971SM

WASHER, .562 X 1.0 X .031, Thrust

$4.49

$

In Stock, Qty 6

0

0120

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

0130

Snapper 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 9

0

0140

Snapper 703406

SCREW, 3/8-16 X 1.50, Hex HD Cap, GR5, Zinc/Clear

$4.99

$

In Stock, only 1 left!

0

0150

Snapper 7104704YP

CLIP, Spring, 5/8 OD Shaft

$5.49

$

Usually ships in 2-12 days

0

0160

Snapper 703906

SCREW, 5/16-18 X 1.50, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0170

Snapper 703841

BOLT, 1/4-20 X .625, Carriage, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0190

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 7091628SM

WASHER, .64X.99X.05, Flat, YZ

$4.49

$

In Stock, only 3 left!

0

0210

Snapper 703466

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$3.99

$

In Stock, Qty 10

0

0220

Snapper 7100714

SPACER, Sleeve, .407 ID, .625 OD, 2.035 LG
(Superseded to 7100714YP)

$16.99

$

Usually ships in 2-12 days

0

0230

Snapper 7043301BMYP

WELDMENT, Control Bracket LH, Black

$170.99

$

Usually ships in 2-12 days

0

0240

Snapper 7100051YP

GRIP, Handle, .84" ID, 15.13" LG, Black

$10.99

$

Usually ships in 2-12 days

0

0250

Snapper 7104677YP

ROD, Handle, Adjustable

$40.99

$

In Stock, only 1 left!

0

0260

Snapper 7300009BMYP

PLATE, Fwd/Rev Adjust

$8.49

$

Usually ships in 2-12 days

0

0270

Snapper 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

0280

Snapper 7301128BMYP

BRACKET, Guide, Stick, Control, LH

$27.99

$

Usually ships in 2-12 days

0

0290-10

Snapper 7091594SM

COTTER PIN, Self Locking, For 1/2" Dia. Pin w/1/16" Hole, YZ

$2.99

$

In Stock, only 2 left!

0

0290-20

Snapper 703895

NUT, 3/8-24, Hex, GR 5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0290-30

Snapper 7100743YP

ROD END, 3/8-24 thread

$10.99

$

In Stock, only 2 left!

0

0290-40

Snapper 7104168YP

ROD, Link Foward/Reverse (3/8-24 thread)

$30.99

$

Usually ships in 2-12 days

0

0290-50

Snapper 7900000SM

CLEVIS PIN, 7/16 X 1"

$6.99

$

Usually ships in 2-12 days

0

0290-60

Snapper 703964

WASHER, 7/16" ID, 1" OD, .060 Thk, Flat, ZC/CL

$4.49

$

In Stock, Qty 20+

0

0300

Snapper 7900016SM

WASHER, 5/8 ID. x 1 OD. x .065 Nylon

$3.49

$

Usually ships in 2-12 days

0

0310

Snapper 7074628BMYP

BRACKET, Handle Adjustment, Black

$

$

Not available

0320

Snapper 703483

BOLT, 5/16-18 X 1 Carriage, GR5, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

0330

Snapper 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0
