285Z (RZT 26520) (7800765-01) - Snapper 52" Zero-Turn Mower, 26hp 52" Deck Housing Assembly Parts Diagram

52" Zero-Turn Mower, 26hp

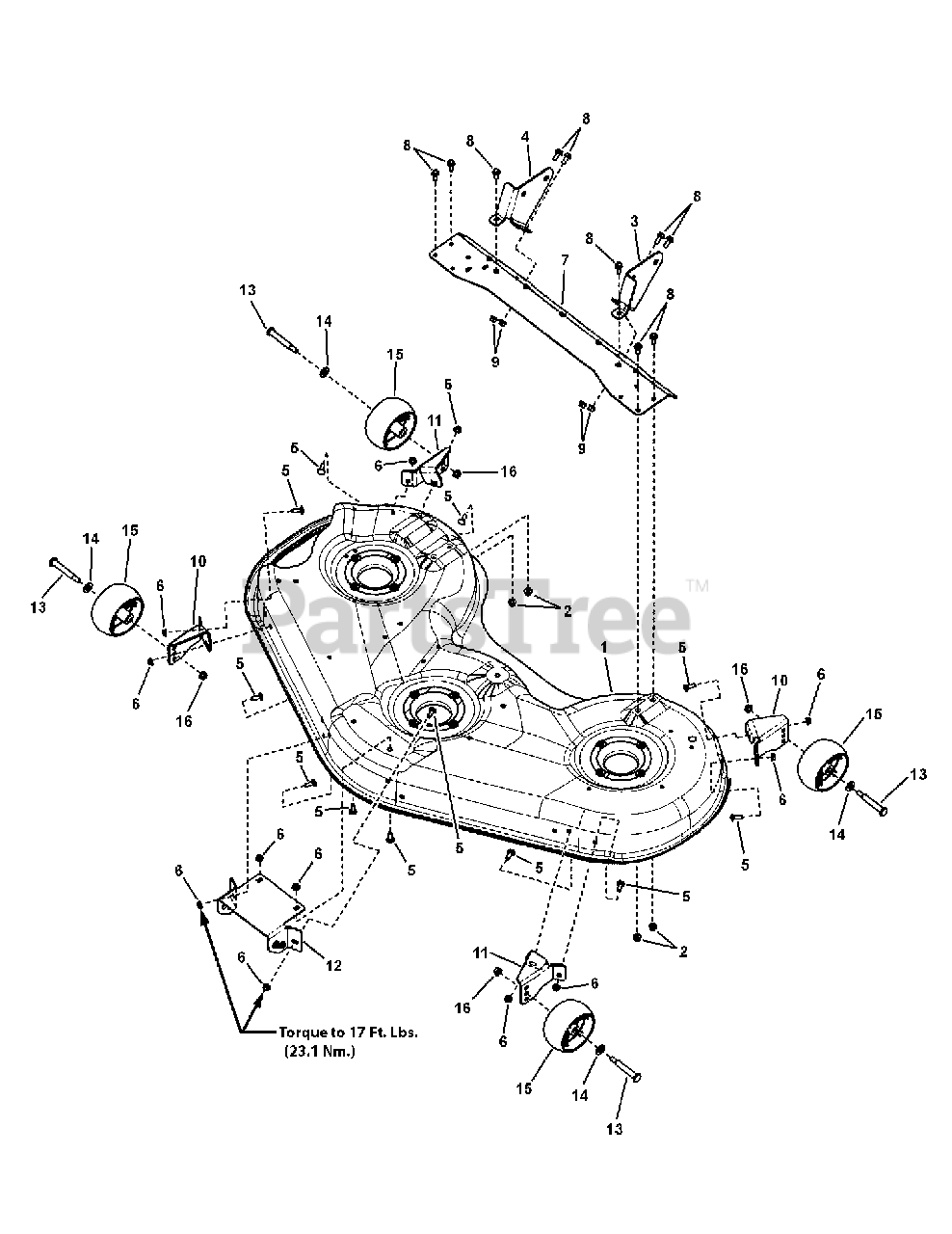

52" Deck Housing Assembly Parts Diagram

  • Title
1

Snapper 1735735D

HOUSING, 52" Mower
(Superseded to 1735735DYP)

$1122.99

$

Usually ships in 2-12 days

0

2

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

3

Snapper 1736397BM

BRACKET, LH Rear 46/52 ZTR - Black
(Superseded to 1736397BMYP)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper 1736398BM

BRACKET, RH Rear 46/52 ZTR - Black
(Superseded to 1736398BMYP)

$19.99

$

Usually ships in 2-12 days

0

5

Snapper 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

6

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 1736070BM

SUPPORT, Rear Cross
(Superseded to 1736070BMYP)

$82.99

$

Usually ships in 2-12 days

0

8

Snapper 1960373

SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 1736075BM

BRACKET, Gauge Wheel, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

11

Snapper 1736074BM

BRACKET, Gauge Wheel, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 1 left!

0

12

Snapper 1736071BM

HITCH, Front, 46/52 Mower
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

13

Snapper 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

14

Snapper 1960170

WASHER, 1/2" Flat (0.51 ID x 1.00 OD x .10 Thick) Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 1736896

GAUGE WHEEL, Black Poly 5" Dia.
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 5

0

16

Snapper 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0
