285Z (RZT 26520) (7800765-01) - Snapper 52" Zero-Turn Mower, 26hp 52" Deck Group Parts Diagram

52" Zero-Turn Mower, 26hp

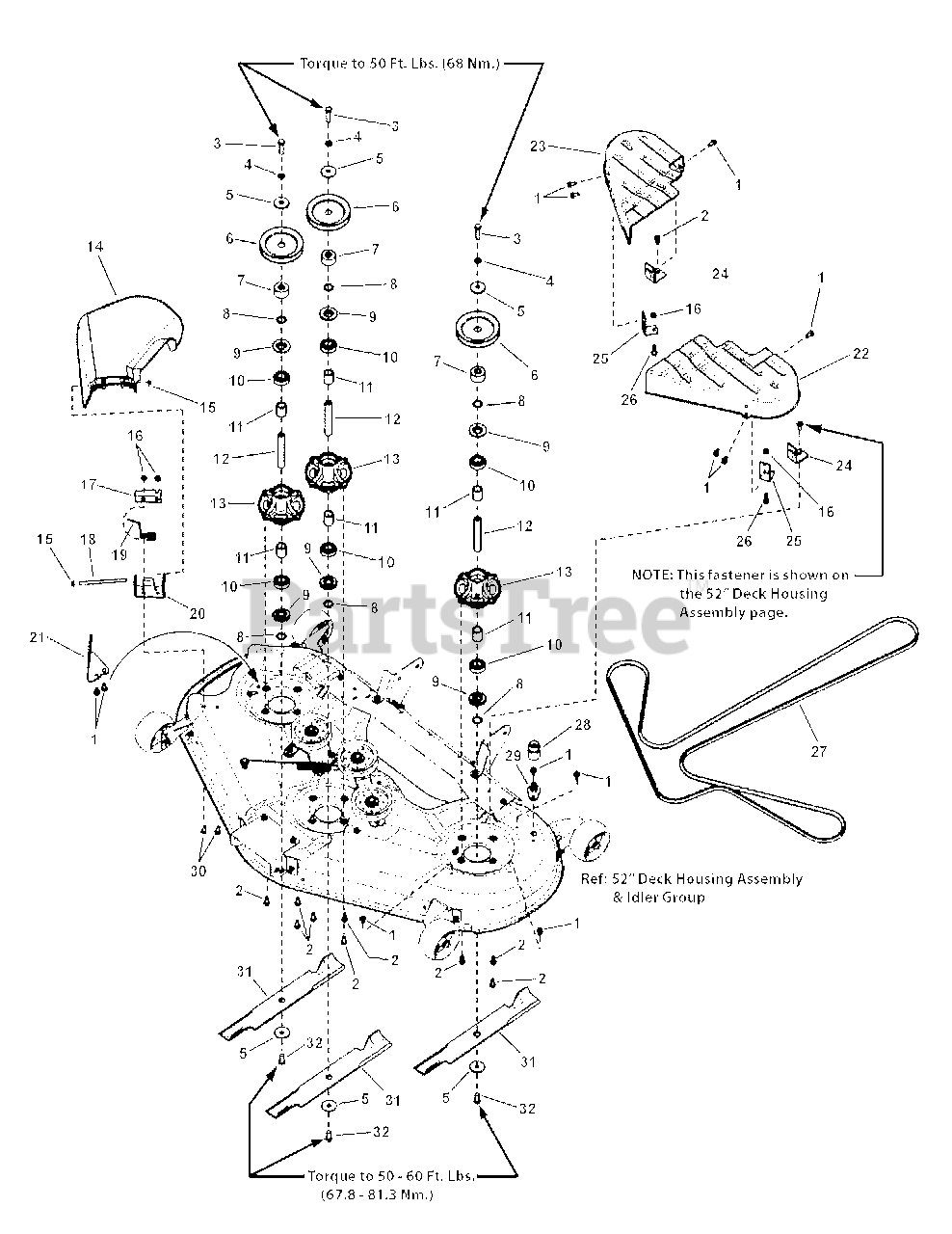

52" Deck Group Parts Diagram

  • Title

1

Snapper 1664847

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 1960373

SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 1923027

SCREW, 7/16-14 x 1-3/4" Hex Head Cap, GR 5, Black
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

4

Snapper 1918199

LOCKWASHER, .438, Spring, Black
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

6

Snapper 1735733

PULLEY, 5.5 OD 11 Ga. Split 52" Mower
(Superseded to 1735733YP)

$20.99

$

In Stock, Qty 5

0

7

Snapper 1736445

SPACER, Pulley, Powdered Metal
(Superseded to 1736445YP)

$13.99

$

In Stock, only 1 left!

0

8

Snapper 1960766

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 1735323

SHIELD, Arbor, 2.050 OD
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 8

0

10

Snapper 1735399

BALL BEARING, 20 MM
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

11

Snapper 1735328

SPACER, Bearing Powdered Metal
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

12

Snapper 1735326

SHAFT, Spindle 20MM Dia. 134.60 MM Long
(Superseded to 1735326YP)

$27.99

$

In Stock, only 4 left!

0

13

Snapper 1735573

HOUSING, Spindle, Cast Aluminum (Machined) w/Grease Fitting
(Superseded to 1735573YP)

$43.99

$

In Stock, Qty 9

0

14

Snapper 1735447

DEFLECTOR, Discharge, Plastic 46/52 Decks
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

15

Snapper 7012542

PUSH NUT, 5/16"
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

16

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 1737359BM

PLATE, Deflector, Closeoff
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

18

Snapper 1736366

ROD, Hinge, .313 Dia. x 5.6 Long, Zinc Plated
(Superseded to 1736366YP)

$11.99

$

Usually ships in 2-12 days

0

19

Snapper 1736364

SPRING, Torsion, Deflector, 2.16 Long
(Superseded to 1736364YP)

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 1737418BM

HINGE, Deflector, 52"
(Superseded to 1737418BMYP)

$28.99

$

In Stock, only 1 left!

0

21

Snapper 1737279BM

BAFFLE, Pinchoff
(Superseded to 1737279BMYP)

$16.99

$

In Stock, only 1 left!

0

22

Snapper 7104697

COVER, Spindle, 46/52 Deck, LH 285Z
(Superseded to 7104697YP)

$55.99

$

In Stock, only 2 left!

0

23

Snapper 7104696

COVER, Spindle, 46/52 Deck, RH 285Z
(Superseded to 7104696YP)

$55.99

$

In Stock, only 2 left!

0

24

Snapper 7301133BM

BRACKET, Rear Deck Cover Support 285Z
(Superseded to 7301133BMYP)

$14.99

$

Usually ships in 2-12 days

0

25

Snapper 7301134BM

BRACKET, 46"/52" Cover Mounting
(Superseded to 7301134BMYP)

$

$

Not available

26

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Hex Washer Face Self-Tap
(Superseded to 703167)

Note: (or 7091151)

$3.99

$

In Stock, only 3 left!

0

27

Snapper 7103789

BELT, RZT, 52" Deck, HA Section, 158" Effective Length
(Superseded to 7103789YP)

$116.99

$

In Stock, only 1 left!

0

28

Snapper 1736898

CONNECTOR, Washout Port 46/52" Black Poly
(Superseded to 1756246YP)

$15.99

$

In Stock, only 1 left!

0

29

Snapper 1735716

ADAPTER, Washout Port 46/52" Mowers
(Superseded to 1756247YP)

$6.49

$

Usually ships in 2-12 days

0

30

Snapper 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

31

Snapper 1737252

BLADE, Mower, 18.50 Long, 52" Deck
(Superseded to 1737252BZYP)

$18.99

$

In Stock, Qty 20+

0

32

Snapper 1920676

SCREW, 7/16-14 x 1" Hex Head Cap, GR 5, Black
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 12

0
