285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp Wheel & Tire Group Parts Diagram

52" Zero-Turn Mower, 25hp

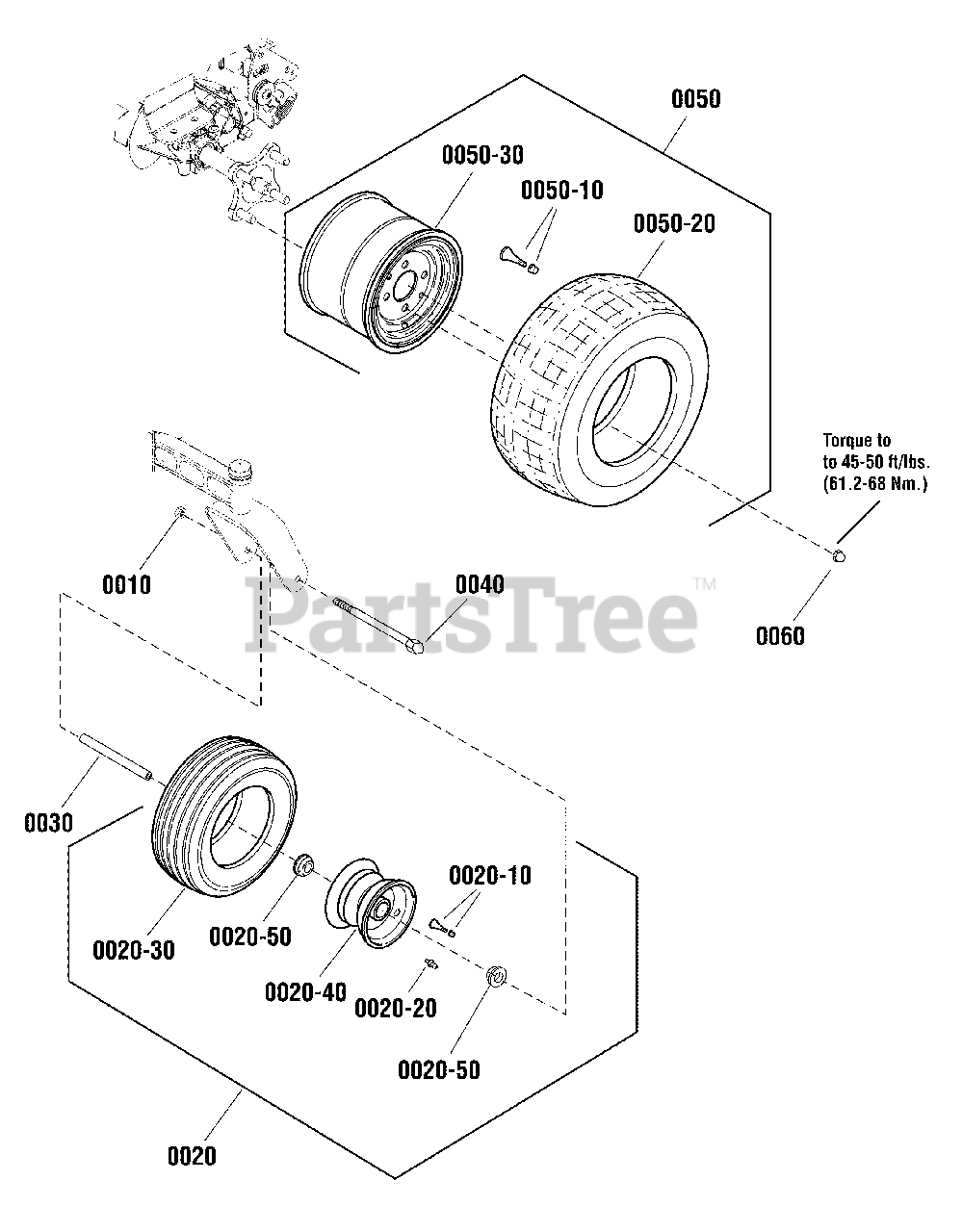

Wheel & Tire Group Parts Diagram

  • Title

0010

Snapper 7090839SM

NUT, 7/16-14 Hex Center Lock, GR 5, ZP

$4.99

$

In Stock, only 3 left!

0

0020

Snapper 1734013SM

ASSEMBLY, Wheel & Tire, Front Caster

$110.99

$

In Stock, Qty 20+

0

0020-10

Snapper 2172353YP

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0020-20

Snapper 7104428YP

ZERK, Grease, 8M x 1, 45 Degree

$5.49

$

In Stock, Qty 10

0

0020-30

Snapper 1734875SM

TIRE, 11 x 4.00 - 5
(Superseded to 5022433X1SM)

$75.99

$

In Stock, Qty 17

0

0020-40

Snapper 1734876SM

WHEEL RIM, 3.00 Wide 5.00 Dia. 0.625 ID Bushings

$73.99

$

In Stock, only 1 left!

0

0020-50

Snapper 1739281YP

BUSHING, 5/8 ID Short
(Superseded to 1759320YP)

$12.99

$

In Stock, Qty 20+

0

0030

Snapper 1734841SM

TUBE, Caster Wheel, 0.625 OD 4.53 OLG 0.625 OD

$12.99

$

In Stock, Qty 20+

0

0040

Snapper 7091772SM

SCREW, 7/16-14 x 6 Hex Head Cap, GR 5, YZ

$8.49

$

In Stock, Qty 20+

0

0050

Snapper 7104645YP

ASSEMBLY, Rear Wheel & Tire, 18 x 8.50-8, K500

$222.99

$

In Stock, only 1 left!

0

0050-10

Snapper 7012234SM

VALVE STEM

$6.49

$

Usually ships in 2-12 days

0

0050-20

Snapper 7072705YP

TIRE, 18 x 8.50-8 4P K500 Tread Kenda

$125.99

$

Usually ships in 2-12 days

0

0050-30

Snapper 7102823YP

RIM, W8 x 5.375 4H POS Silver
(Superseded to 7102822YP)

$216.99

$

Usually ships in 2-12 days

0

0060

Snapper 7027192SM

LUG NUT, 1/2-20 YZ

$

$

Not available
