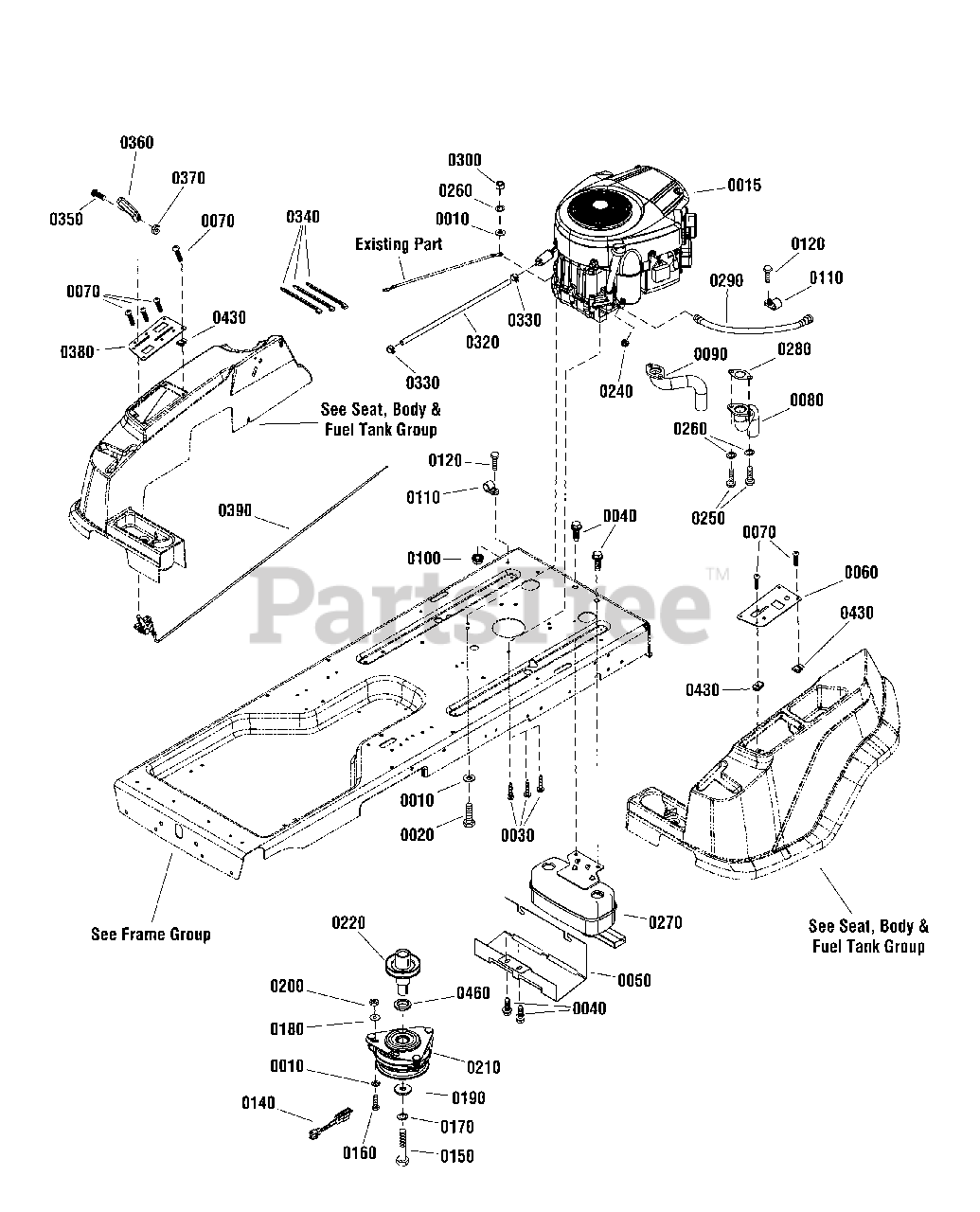

285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp Engine Group Parts Diagram

52" Zero-Turn Mower, 25hp

Engine Group Parts Diagram

  • Title

0010

Snapper 703350

WASHER, 5/16, SAE Flat, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0015

Snapper 44S9770-0002-G1

* ENGINE, 25HP B&S Twin Prof, Mod. 44S9770-0002-G1

$

$

Currently unavailable

0020

Snapper 704288

SCREW, 5/16-18 X 1.750, Hex Head Cap, GR5

$4.99

$

Usually ships in 2-12 days

0

0030

70400

SCREW, 3/8-16 X 1, Hex Washer Head Self Tap

$

$

Not available

0040

Snapper 7091198SM

SCREW, 3/8-16 X 5/8, Hex Washer Head Self Tap

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 1757310BMYP

SHIELD, Muffler Heat

$

$

Not available

0060

Snapper 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper 703953

SCREW, 1/4-20 X 5/8, Pan Head Self Tap Torx

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 1756684YP

PIPE, Exhaust, LH

$26.99

$

Usually ships in 2-12 days

0

0090

Snapper 1756685YP

PIPE, Exhaust, RH

$26.99

$

Usually ships in 2-12 days

0

0100

Snapper 703409

NUT, 5/16-18, Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 7900020SM

CLIP, Harness, 5/8

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 704287

SCREW, 5/16-18 X 0.750, Hex Head Cap, GR5

$3.99

$

In Stock, Qty 9

0

0140

Snapper 1737462YP

HARNESS, Jumper, 4 LG

$9.99

$

In Stock, only 1 left!

0

0150

Snapper 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5

$

$

Not available

0160

Snapper 703585

SCREW, 5/16-18 X 0.875, Hex Head Cap, GR5

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 704007

WASHER, 7/16, Split Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 7011763SM

WASHER, 5/16, Fender

$4.49

$

In Stock, only 4 left!

0

0190

Snapper 704053

WASHER, 0.468 ID X 1.50 OD X 0.19 Thick,Special

$9.99

$

In Stock, only 1 left!

0

0200

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB

$3.49

$

In Stock, Qty 18

0

0210

Snapper 1757359YP

CLUTCH, Electric, Ogura

$290.99

$

In Stock, only 1 left!

0

0220

Snapper 7043343SM

PULLEY, Engine, 3.5 OD, 1 ID, 4.92 Tall

$114.99

$

In Stock, only 1 left!

0

0240

Snapper 703233

NUT, 1/4-20, Serrated Flange, GR5

$4.49

$

In Stock, Qty 5

0

0250

Snapper 7091738SM

SCREW, 5/16-18 X 3/4, Allen Socket Head, GR8

$4.99

$

In Stock, Qty 14

0

0260

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 1756693YP

MUFFLER

$109.99

$

In Stock, only 1 left!

0

0280

Snapper 1731214SM

GASKET, Exhaust, B&S

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726498SM

HOSE, Oil Drain, .375 ID X 16.5 Long

$26.99

$

Usually ships in 2-12 days

0

0300

Snapper 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0320

Snapper 7200140YP

HOSE, Fuel, 1/4 ID x 32"

$14.99

$

In Stock, only 1 left!

0

0330

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 703586

TIE, Cable, 7.0"

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, only 4 left!

0

0360

Snapper 7103888YP

KNOB, Throttle

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0380

Snapper 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0390

Snapper 7103771YP

Control, Throttle, B&S Choke-A-Matic, 44", 1.4" Throw

$40.99

$

Usually ships in 2-12 days

0

0430

Snapper 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0460

Snapper 7029137YP

WASHER, 1.010 X 1.312 X .125, Flat, YZ

$5.49

$

In Stock, only 3 left!

0
