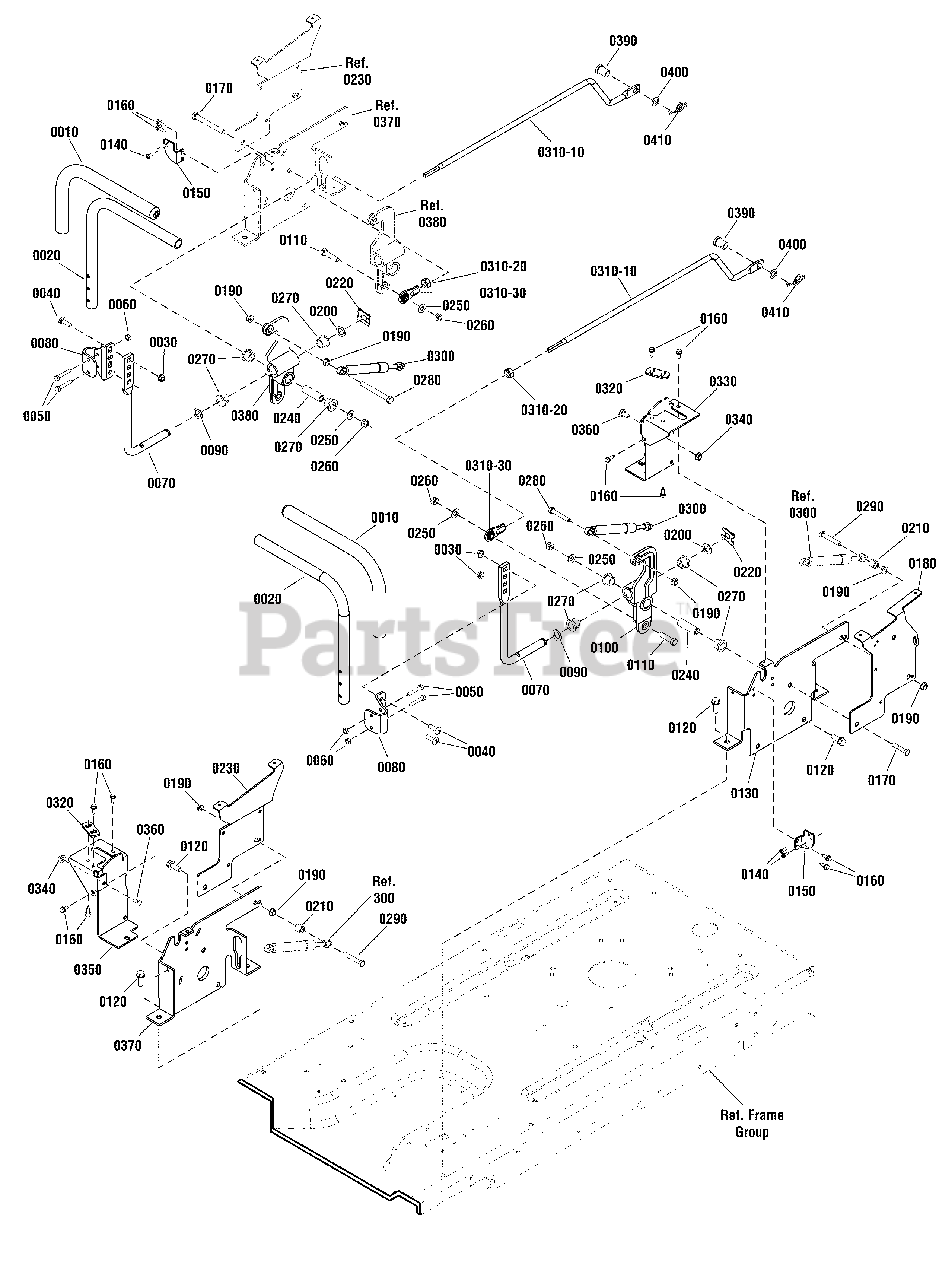

285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp Controls Group Parts Diagram

52" Zero-Turn Mower, 25hp

Controls Group Parts Diagram

  • Title

0010

Snapper 7100051YP

GRIP, Handle

$10.99

$

Usually ships in 2-12 days

0

0020

Snapper 7301168BMYP

HANDLE, Adjustable

$45.99

$

In Stock, only 1 left!

0

0030

Snapper 1935048SM

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0040

Snapper 703483

BOLT, 5/16-18 X 1 Carriage, GR5, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

0050

Snapper 703234

SCREW, 1/4-20 X 1.5, Hex Head Cap, GR5, ZC/CL

$4.49

$

In Stock, only 4 left!

0

0060

Snapper 7090372SM

NUT, 1/4-20, Hex Center Lock, G5
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0070

Snapper 7104677YP

ROD, Handle, Adjustable

$40.99

$

In Stock, only 1 left!

0

0080

Snapper 7074628BMYP

BRACKET, Handle Adjustment

$

$

Not available

0090

Snapper 7091628SM

WASHER, Flat, 5/8 ID x 1 OD

$4.49

$

In Stock, only 3 left!

0

0100

Snapper 7100715YP

ARM, Control, LH

$28.99

$

Usually ships in 2-12 days

0

0110

Snapper 703406

SCREW, 3/8-16 X 1.50, Hex HD Cap, GR5, Zinc/Clear

$4.99

$

In Stock, only 1 left!

0

0120

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

0130

Snapper 7043302BMYP

BRACKET, Control, LH

$33.99

$

Usually ships in 2-12 days

0

0140

Snapper 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 11

0

0150

Snapper 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

0160

Snapper 7090290SM

SCREW, 1/4-20 x 3/4 Hex Washer Self-Tap, Black
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

0170

Snapper 703874

SCREW, 3/8-16 X 3.250, Hex HD, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 11

0

0180

Snapper 7301075BMYP

BRACKET, Lever, Parking Brake

$22.99

$

Usually ships in 2-12 days

0

0190

Snapper 703409

NUT, 5/16-18, GR5, Serated Flange, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 7900016SM

WASHER, Nylon 5/16

$3.49

$

Usually ships in 2-12 days

0

0210

Snapper 7023206YP

SPACER, 3/8 ID x 5/8 OD x 1/2 Long

$8.49

$

Usually ships in 2-12 days

0

0220

Snapper 7104704YP

CLIP, Spring, 5/8 OD Shaft

$5.49

$

Usually ships in 2-12 days

0

0230

Snapper 7301072BMYP

BRACKET, Fender Support, RH

$23.99

$

Usually ships in 2-12 days

0

0240

Snapper 7100714YP

SPACER, Sleeve

$16.99

$

Usually ships in 2-12 days

0

0250

Snapper 703590

WASHER, .406, Flat, Zinc/Clear

$3.99

$

In Stock, Qty 10

0

0260

Snapper 703347

NUT, Hex Center Lock, 3/8-16, G5

$4.99

$

In Stock, only 2 left!

0

0270

Snapper 7013874SM

BUSHING

$5.99

$

In Stock, Qty 5

0

0280

Snapper 703906

SCREW, 5/16-18 X 1.50, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0290

Snapper 703867

SCREW, 5/16-18 X 2.0, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0300

Snapper 5103511YP

DAMPENER, Control

$62.99

$

In Stock, Qty 16

0

0310-10

Snapper 7104168YP

ROD, Link Foward/Reverse (3/8-24 thread)

$30.99

$

Usually ships in 2-12 days

0

0310-20

Snapper 7091630SM

NUT, Hex, 3/8-24, G5
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

0310-30

Snapper 7100743YP

ROD END, 3/8-24 thread

$10.99

$

In Stock, only 2 left!

0

0320

Snapper 7300009BMYP

PLATE, Forward / Reverse Adjust

$8.49

$

Usually ships in 2-12 days

0

0330

Snapper 7301128BMYP

BRACKET, Guide, Stick, Control, LH

$27.99

$

Usually ships in 2-12 days

0

0340

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0350

Snapper 7301129BMYP

BRACKET, Guide, Stick, Control, RH

$54.99

$

Usually ships in 2-12 days

0

0360

Snapper 7031573YP

BOLT, 1/4-20 x 5/8 Round Head Short Square Neck, GR 5, YZ

$

$

Currently unavailable

0370

Snapper 7043330BMYP

BRACKET, Control, RH

$33.99

$

Usually ships in 2-12 days

0

0380

Snapper 7100717YP

ARM, Control, RH

$30.99

$

Usually ships in 2-12 days

0

0390

Snapper 7900000SM

CLEVIS PIN, 7/16 X 1"

$6.99

$

Usually ships in 2-12 days

0

0400

Snapper 703964

WASHER, 7/16" ID, 1" OD, .060 Thk, Flat, ZC/CL

$4.49

$

In Stock, Qty 20+

0

0410

Snapper 7091594SM

PIN, Cotter, Self Locking, 1/2

$2.99

$

In Stock, only 2 left!

0
