285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp 52" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

52" Zero-Turn Mower, 25hp

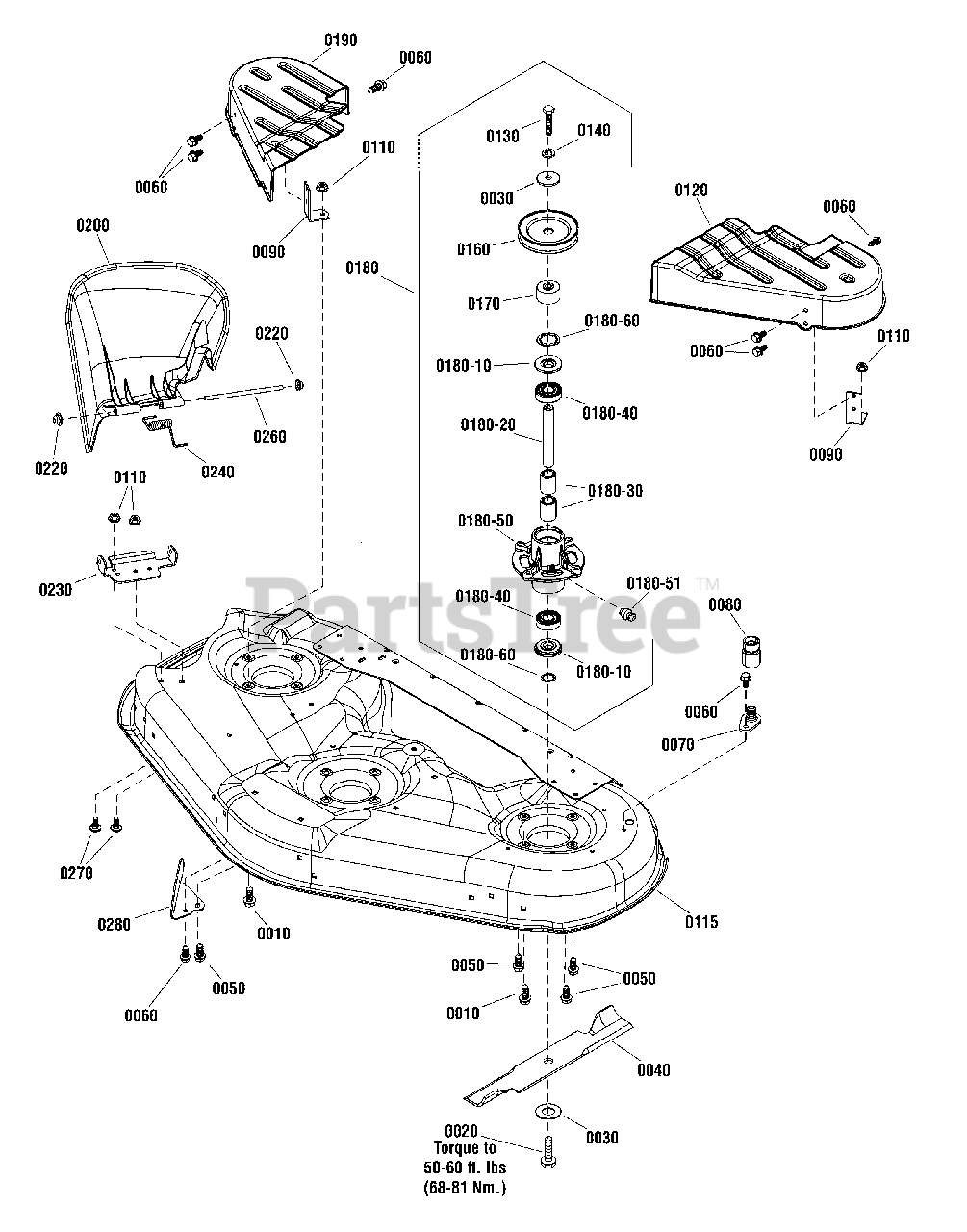

52" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Snapper 703167

SCREW, 5/16-18 x 1-1/4 Hex Washer Head Self-Tap

$3.99

$

In Stock, only 3 left!

0

0020

Snapper 1920676SM

SCREW, 7/16-14 x 1 Hex Head Cap, GR 5, Black

$5.49

$

In Stock, Qty 12

0

0030

Snapper 1656916SM

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1737252BZYP

BLADE, Mower 18.5" LG, 52" MWR

$18.99

$

In Stock, Qty 20+

0

0050

Snapper 704146

SCREW, 5/16-18 X 1.0, Hex Washer Head Self-Tap, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 703228

SCREW, 5/16-18 X .750, Washer Head Taptite, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 1756247YP

ADAPTOR, Washout Port

$6.49

$

In Stock, only 1 left!

0

0080

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0090

Snapper 7301134BMYP

BRACKET, 46/52 Cover Mounting

$

$

Not available

0110

Snapper 703409

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0115

Snapper 1735735DYP

HOUSING, 52" Mower, Red

$1122.99

$

Usually ships in 2-12 days

0

0120

Snapper 7104697YP

COVER, Spindle, 46/52 Deck LH, 285Z

$55.99

$

In Stock, only 1 left!

0

0130

Snapper 703171

SCREW, 7/16-14 X 1.750, Hex Head Cap, GR5, Clear/Zinc

$3.99

$

In Stock, Qty 6

0

0140

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 1735733YP

PULLEY, 5.5 OD x 11 Ga. Split

$20.99

$

In Stock, Qty 5

0

0170

Snapper 1736445YP

SPACER, Pulley, .457 DI, 1.66" OD, 1.083 Tall PM, YZ

$13.99

$

In Stock, only 1 left!

0

0180

Snapper 7600211YP

KIT, Aluminum Spindle Assembly
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0180-10

Snapper 1735323YP

SHIELD, Arbor, 2.050 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0180-20

Snapper 1735326YP

SHAFT, Spindle, 20mm DIA 134.60mm LG
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0180-30

Snapper 1735328YP

SPACER, Bearing, .812 ID, 1.25 OD, .442 Tall, PM

$6.49

$

In Stock, only 3 left!

0

0180-40

Snapper 1735399YP

BEARING, Ball 20MM

$9.99

$

In Stock, Qty 20+

0

0180-50

Snapper 1735573YP

HOUSING, Spindle, Cast Aluminum (Machined) w/Grease Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0180-51

Snapper 1704314SM

LUBE FITTING, .250 Drive, .25 SH, Check Ball, Yel
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0180-60

Snapper 1960766YP

RING, Self Locking (For 20MM Shaft)

$4.49

$

In Stock, Qty 20+

0

0190

Snapper 7104696YP

COVER, Spindle, 46/52 Deck RH 285Z

$55.99

$

In Stock, only 1 left!

0

0200

Snapper 1687750YP

DEFLECTOR, Discharge, 46/52

$37.99

$

In Stock, Qty 20+

0

0220

Snapper 704028

PUSHNUT, 5/16, Cap, Zinc/Clear

$5.49

$

In Stock, only 3 left!

0

0230

Snapper 1754868BMYP

BRACKET, Deflector Hinge

$20.99

$

Usually ships in 2-12 days

0

0240

Snapper 1755412YP

SPRING, Deflector Tortion

$6.99

$

Usually ships in 2-12 days

0

0260

Snapper 1755175YP

ROD, Deflector, 3.13" Dia., X 6.75"

$6.49

$

Usually ships in 2-12 days

0

0270

Snapper 704065

BOLT, 5/16-18 X 0.875, Carriage Short Neck, ZC/CL

$4.49

$

In Stock, Qty 6

0

0280

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0
