285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp 52" Mower Deck - Clutch & Support Group, Frame Hung Parts Diagram

52" Zero-Turn Mower, 25hp

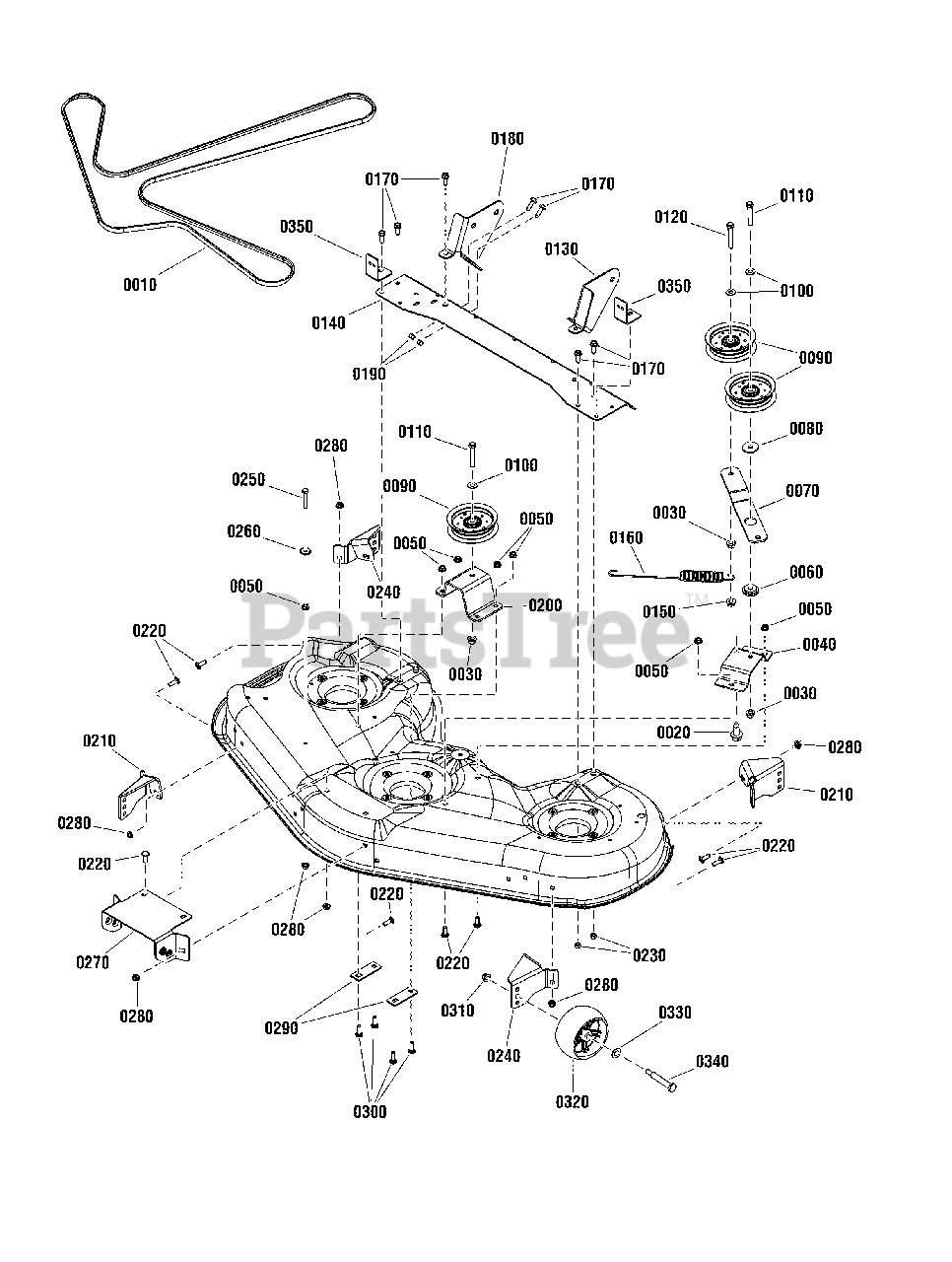

52" Mower Deck - Clutch & Support Group, Frame Hung Parts Diagram

  • Title

0010

Snapper 7103789YP

BELT, RZT, 52 Deck, HA Section, 158 Effective Length

$116.99

$

In Stock, only 1 left!

0

0020

Snapper 703228

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0040

Snapper 1736437BMYP

BRACKET, Front Idler Mount

$21.99

$

Usually ships in 2-12 days

0

0050

Snapper 703330

NUT, 5/16-18, Hex Flange Whiz-Lock, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0060

Snapper 1714255SM

SPACER, 0.406 ID, 1.50 OD, 0.350 Thick PM

$6.49

$

In Stock, Qty 17

0

0070

Snapper 7301100BMYP

ARM, Idler, 46/52 RZT

$

$

Not available

0080

Snapper 7091331SM

WASHER, 13/32 x 1-1/2 x .120 Flat, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0090

Snapper 1736540YP

PULLEY, Idler, 3/8 ID - BB, 4 OD

$35.99

$

In Stock, only 2 left!

0

0100

Snapper 703878

WASHER, .41 ID X 0.87 OD X .08 Thk, Type A, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 703872

SCREW, 3/8-16 x 2-1/4 Hex Head Cap, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0120

Snapper 1933685SM

SCREW, 3/8-16 x 2-1/2 Hex Head Cap GR 5 Black

$5.49

$

In Stock, only 1 left!

0

0130

Snapper 1736397BMYP

BRACKET, Rear Mower Pickup, LH

$19.99

$

Usually ships in 2-12 days

0

0140

Snapper 1736070BMYP

SUPPORT, Rear Cross

$82.99

$

Usually ships in 2-12 days

0

0150

Snapper 1960339SM

NUT, 3/8-16 Hex Flange Center Lock, Large, Black

$

$

Not available

0160

Snapper 1737415YP

SPRING, Extension, PTO, 11.41 Long, 32.5 Coils

$12.99

$

In Stock, only 1 left!

0

0170

Snapper 1960373SM

SCREW, 5/16-18 X 1.0, Hex Washer Head, Taptite, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 1736398BMYP

BRACKET, Rear Mower Pickup, RH

$19.99

$

Usually ships in 2-12 days

0

0190

Snapper 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0200

Snapper 7301102BMYP

BRACKET, Fixed Idler, Rear

$

$

Not available

0210

Snapper 1736075BMYP

BRACKET, Gauge Wheel, LH

$14.99

$

In Stock, Qty 14

0

0220

Snapper 1931334SM

BOLT, 5/16-18 x 7/8 Carriage, Short Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0230

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 17

0

0240

Snapper 1736074BMYP

BRACKET, Gauge, Wheel, R.H.

$15.99

$

In Stock, only 1 left!

0

0250

Snapper 704288

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

Usually ships in 2-12 days

0

0260

Snapper 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper 1736071BMYP

HITCH, Front, 46/52 Mower

$29.99

$

Usually ships in 2-12 days

0

0280

Snapper 703409

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0290

Snapper 1737229BMYP

PLATE, Backing

$8.49

$

Usually ships in 2-12 days

0

0300

Snapper 703800

BOLT, 5/16 - 18 X 1.0, Short Neck Carriage, Zinc/Clear

$3.99

$

In Stock, Qty 7

0

0310

Snapper 703158

NUT, 3/8-16, Hex Flange, ESNA, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0320

Snapper 1736896YP

WHEEL, Gauge Black Poly 5 DIA

$16.99

$

In Stock, only 4 left!

0

0330

Snapper 703853

WASHER, 0.516 ID X 1.00 OD X 0.12 Thk, Special, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0340

Snapper 1736539YP

BOLT, 3/8-16 x 3.41, .750 Thread, Shoulder

$8.99

$

Usually ships in 2-12 days

0

0350

Snapper 7301133BMYP

BRACKET, Rear Deck Cover Support 285Z

$14.99

$

Usually ships in 2-12 days
