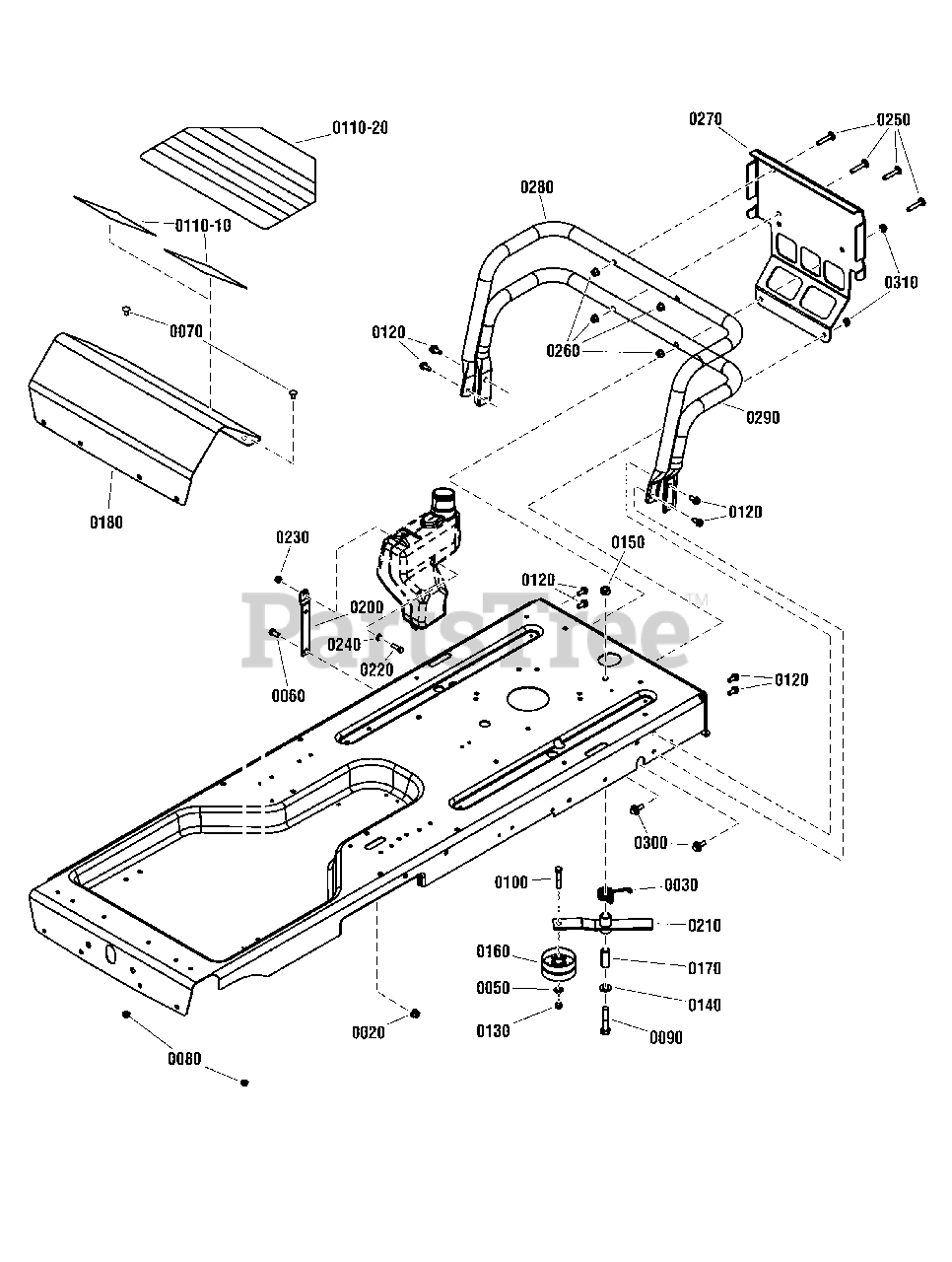

285Z (RZT 21420) (7800795-00) - Snapper 42" Zero-Turn Mower, 21hp Frame Assembly & Rear Bumper Group Parts Diagram

42" Zero-Turn Mower, 21hp

Frame Assembly & Rear Bumper Group Parts Diagram

  • Title

0020

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0030

Snapper 7044760SM

SPRING, Torsion, RH Wind, 3.25 Coils

$33.99

$

In Stock, only 2 left!

0

0050

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 703237

SCREW, 3/8-16 X .750, Hex Head Cap, Zinc/Clear

$4.99

$

Usually ships in 2-12 days

0

0070

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0090

Snapper 703449

SCREW, 1/2-13 X 2 1/2, GR5 Hex Head Cap

$4.99

$

Usually ships in 2-12 days

0

0100

Snapper 703589

SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0110-10

Snapper 5101564YP

SAFETY WALK, 7.25 X 5.25

$11.99

$

Usually ships in 2-12 days

0

0110-20

Snapper 7100287SM

MAT, Floor Pan

$36.99

$

Usually ships in 2-12 days

0

0120

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0140

Snapper 704123

WASHER, .531 ID X 1.063 OD X .094 Thk, Flat, ZC/CL

$4.49

$

In Stock, only 3 left!

0

0150

Snapper 703894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ

$3.49

$

In Stock, Qty 9

0

0160

Snapper 7100103SM

IDLER, 3.25 OD X .391 ID X 1.63 , Backside

$43.99

$

In Stock, Qty 8

0

0170

Snapper 7200034SM

SPACER, Hydro Idler

$

$

Not available

0180

Snapper 7300140DYP

FOOTREST, Snapper

$79.99

$

Usually ships in 2-12 days

0

0190

FRAME, RZT (Not A Serviceable Part)

$

$

Not available

0200

Snapper 7301110BMYP

BRACKET, Fuel Tank Support

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 7400208BMYP

WELDMENT, Hydro Idler

$45.99

$

In Stock, only 1 left!

0

0220

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0230

Snapper 703902

NUT, 5/16-18, Hex Nylock, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0240

Snapper 704015

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

0250

Snapper 703175

BOLT, 5/16-18 X 1.750, Carriage, G5, Clear Zinc

$3.99

$

In Stock, only 2 left!

0

0260

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 1753572DYP

PLATE, Brand, Red

$95.99

$

Usually ships in 2-12 days

0

0280

Snapper 7301123BMYP

BUMPER, Upper Tube, 285Z

$142.99

$

Usually ships in 2-12 days

0

0290

Snapper 1753517BMYP

BUMPER, Lower Single Tube

$92.99

$

In Stock, only 1 left!

0

0300

Snapper 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 1 left!

0

0310

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0
