285Z (EZT 2042) (2691043-03) - Snapper 42" Zero-Turn Mower, 20hp Engine Group, 7200 Series Parts Diagram

42" Zero-Turn Mower, 20hp

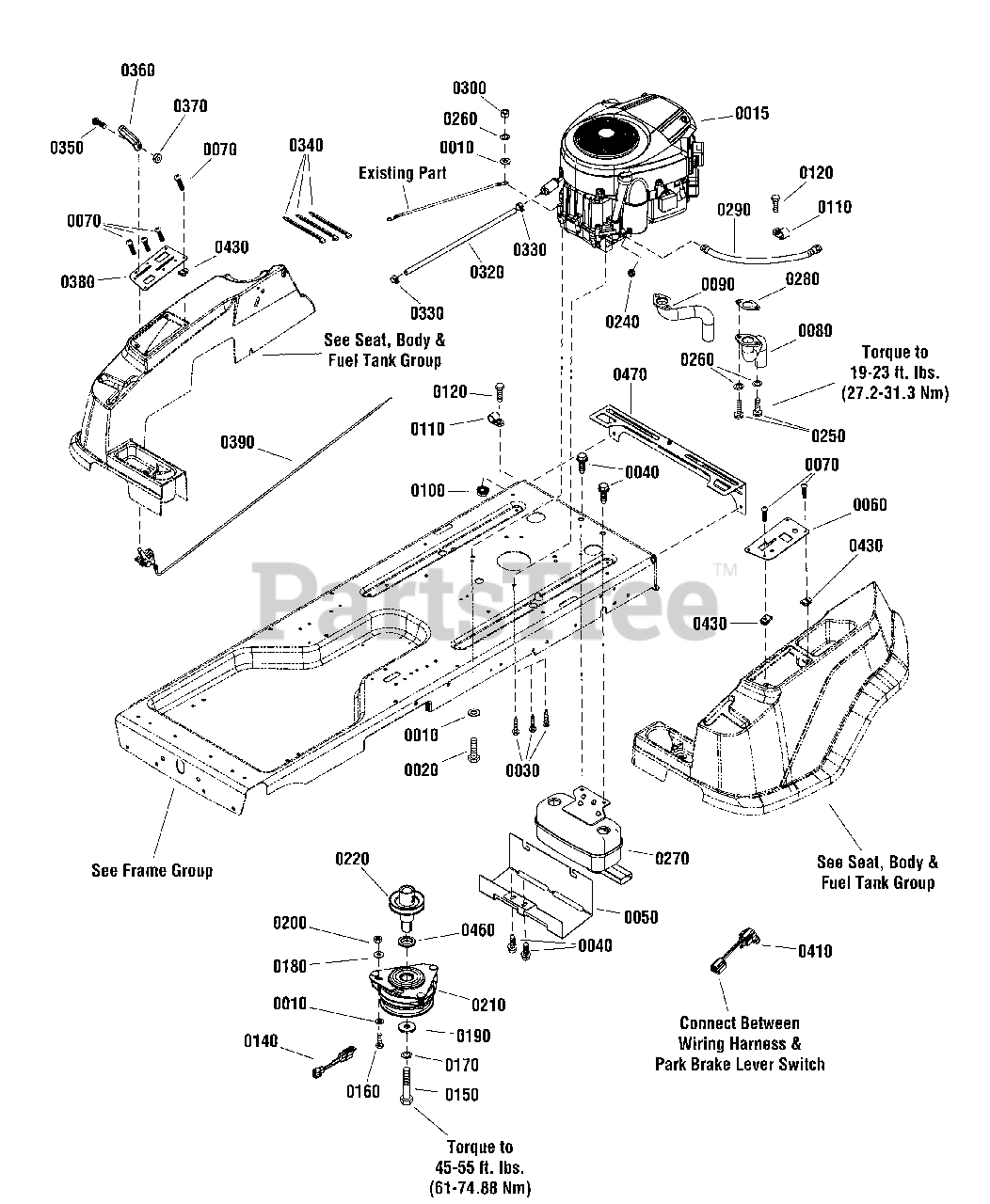

Engine Group, 7200 Series Parts Diagram

  • Title
0010

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0015

Snapper 40R777-0010-B1

* ENGINE, 20HP B&S Twin Cyl. Intek EXP 7200 Series

Note: Mod. 40R777-0010-B1

$

$

Not available

0020

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7091198SM

SCREW, 3/8-16 x 5/8 Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 706106

SHIELD, Muffler

$51.99

$

Usually ships in 2-12 days

0

0060

Snapper 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper 703953

SCREW, 1/4-20 x 5/8 Pan Head Self-Tap (Torx), BP

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 1756684YP

PIPE, Exhaust, LH (B&S Twin)

$26.99

$

Usually ships in 2-12 days

0

0090

Snapper 1756685YP

PIPE, Exhaust, RH (B&S Twin)

$26.99

$

Usually ships in 2-12 days

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 704287

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ

$3.99

$

In Stock, Qty 9

0

0140

Snapper 1737462YP

HARNESS, Jumper 4 Long

$9.99

$

In Stock, only 1 left!

0

0150

Snapper 7092130SM

SCREW, 7/16-20 x 4-1/2 Hex Head Cap, GR 5, YZ

$

$

Not available

0160

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0170

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 7011763SM

WASHER, 5/16 I.D. 1 O.D. Fender

$4.49

$

In Stock, only 3 left!

0

0190

Snapper 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

In Stock, only 1 left!

0

0200

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 19

0

0210

Snapper 1757359YP

CLUTCH, Ogura, 1" ID, Integrated Key

$290.99

$

In Stock, only 1 left!

0

0220

Snapper 7043343SM

PULLEY, Engine, 3.5 OD, 1 ID, 4.92 Tall

$114.99

$

In Stock, only 1 left!

0

0240

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0250

Snapper 7091738SM

SCREW, 5/16-18 x 3/4 Allen Socket Head, GR 8, BZ

$4.99

$

In Stock, Qty 14

0

0260

Snapper 703116

WASHER, 5/16 Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 1756693YP

ASSEMBLY, Muffler , Extended Deflector

$109.99

$

In Stock, only 1 left!

0

0280

Snapper 1731214SM

GASKET, Exhaust (273485)

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726498SM

HOSE, Oil Drain, .375 ID 16.5 L

$26.99

$

Usually ships in 2-12 days

0

0300

Snapper 703465

NUT, 5/16-18, GRB, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0320

Snapper 7200140YP

HOSE, Fuel, 1/4 x 32"

$14.99

$

In Stock, only 1 left!

0

0330

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 7091017YP

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR

$3.99

$

In Stock, only 4 left!

0

0360

Snapper 7103888YP

KNOB, Throttle, Red

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 703460

NUT, #8-32, HEX, ZINC/CLEAR

$3.99

$

In Stock, Qty 9

0

0380

Snapper 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0390

Snapper 7103771YP

THROTTLE ASSEMBLY, Choke-A-Matic, B&S

$40.99

$

Usually ships in 2-12 days

0

0410

Snapper 1734025SM

WIRES & CONNECTORS ASSEMBLY, Jumper, 3.0 LG

$14.99

$

In Stock, only 1 left!

0

0430

Snapper 705876

NUT, 1/4-20, .025/.150, Speed, Lug Type.025/.150

$4.49

$

In Stock, Qty 20+

0

0460

Snapper 7029137YP

WASHER, 1.010 X 1.312 X .125, Flat, YZ

$5.49

$

In Stock, only 3 left!

0

0470

Snapper 1757996BMYP

SHIELD, Heat

$92.99

$

Usually ships in 2-12 days
