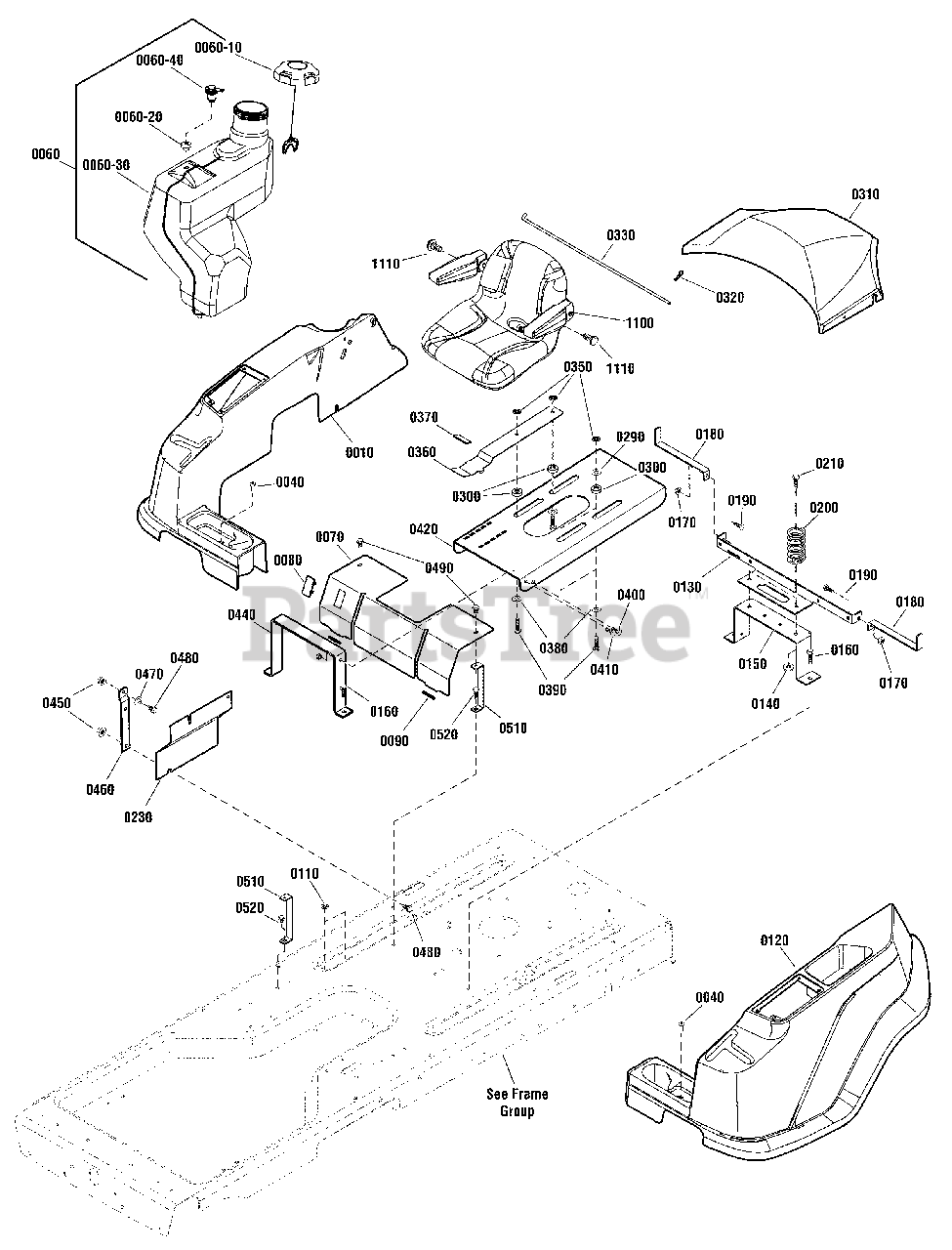

285Z (EZT 2042) (2691043-00) - Snapper 42" Zero-Turn Mower, 20hp Seat, Body & Fuel Tank Group Parts Diagram

42" Zero-Turn Mower, 20hp

Seat, Body & Fuel Tank Group Parts Diagram

  • Title

0010

Snapper 7103775YP

FENDER, RH

$347.99

$

Usually ships in 2-12 days

0

0040

Snapper 7091246YP

SCREW, 1/4-20 x 3/4, Pan Head Torx
(Superseded to 770003)

$3.99

$

In Stock, Qty 16

0

0060

Snapper 1753791YP

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 0060-10, 0060-20, 0060-30 & 0060-40)

$279.99

$

Usually ships in 2-12 days

0

0060-10

Snapper 5101651SM

CAP, Fuel Tank

$30.99

$

In Stock, Qty 20+

0

0060-20

Snapper 1726400SM

BUSHING, Fuel Tank, Rubber
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0060-30

TANK, Fuel

Note: (Not a serviceable part. Order Ref. No. 0060)

$

$

Not available

0060-40

Snapper 7103536YP

ELBOW ASSEMBLY, Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

0070

Snapper 7301216BZYP

COVER, Battery

$27.99

$

Usually ships in 2-12 days

0

0080

Snapper 1722611SM

PLUG

$6.99

$

In Stock, only 1 left!

0

0090

Snapper 7104514YP

STRIP, Trim, 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 703986

RETAINER, Bolt, 3/8

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 7103776YP

FENDER, LH

$302.99

$

Usually ships in 2-12 days

0

0130

Snapper 7301107BMYP

BRACKET, Support, Seat & Fender

$26.99

$

Usually ships in 2-12 days

0

0140

Snapper 703164

NUT, Hex Center Lock, 5/16-18, G5

$3.49

$

In Stock, Qty 18

0

0150

Snapper 7043316BMYP

BRACKET, Seat Support

$19.99

$

Usually ships in 2-12 days

0

0160

Snapper 703950

SCREW, Hex Washer Head, Thread Roll, 5/16-18 X 5/8

$5.49

$

In Stock, only 3 left!

0

0170

Snapper 703902

NUT, Hex Lock, ESNA, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 7301101BMYP

BRACKET, Support, Fender

$11.99

$

Usually ships in 2-12 days

0

0190

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0200

Snapper 7103425YP

SPRING, Compression, 3-5/8"

$17.99

$

Usually ships in 2-12 days

0

0210

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0230

Snapper 7301126BMYP

PLATE, Side, RH

$26.99

$

Usually ships in 2-12 days

0

0290

Snapper 7011763SM

WASHER, Fender, 5/16

$4.49

$

In Stock, only 4 left!

0

0300

Snapper 7103920YP

SPACER, Seat, Adjustable

$3.99

$

Usually ships in 2-12 days

0

0310

Snapper 7103777YP

COVER, Engine

$68.99

$

Usually ships in 2-12 days

0

0320

Snapper 1722460SM

PIN, Quick, 1-3/16"
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0330

Snapper 7103998YP

ROD, Pivot, Hood

$47.99

$

Usually ships in 2-12 days

0

0350

Snapper 703297

RETAINER, Bolt, 5/16

$3.99

$

In Stock, Qty 20+

0

0360

Snapper 7103673BMYP

LATCH, Seat

$18.99

$

Usually ships in 2-12 days

0

0370

Snapper 885215YP

COVER, Lever, Seat Adjustment

$4.99

$

Usually ships in 2-12 days

0

0380

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0390

Snapper 1933689SM

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

0400

Snapper 703839

BOLT, Shoulder, 5/16-18 x 3/4" (1/2" Thread Length)

$5.49

$

In Stock, only 2 left!

0

0410

Snapper 7091198SM

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0420

Snapper 7301095BMYP

PLATE, Seat, Adjustable

$53.99

$

Usually ships in 2-12 days

0

0440

Snapper 7301070BMYP

BRACKET, Seat

$20.99

$

Usually ships in 2-12 days

0

0450

Snapper 703333

NUT, Hex Flange, Whiz Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0460

Snapper 7301110BMYP

BRACKET, Support, Fuel Tank

$11.99

$

Usually ships in 2-12 days

0

0470

Snapper 704015

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

0480

Snapper 703237

CAPSCREW, Hex Head, 3/8-16 x 3/4, G5

$4.99

$

Usually ships in 2-12 days

0

0490

Snapper 704130

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 5

0

0510

Snapper 7301217BMYP

BRACKET, Cover, Battery

$

$

Not available

0520

Snapper 025X15MA

SCREW, Hex Washer Head, Thread Rolling, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

1100

Snapper 1754218YP

SEAT, 15" Back, with Armrests

$552.99

$

Usually ships in 2-12 days

0

1110

Snapper 1761409YP

KNOB, Adjuster

$18.99

$

Usually ships in 2-12 days

0
