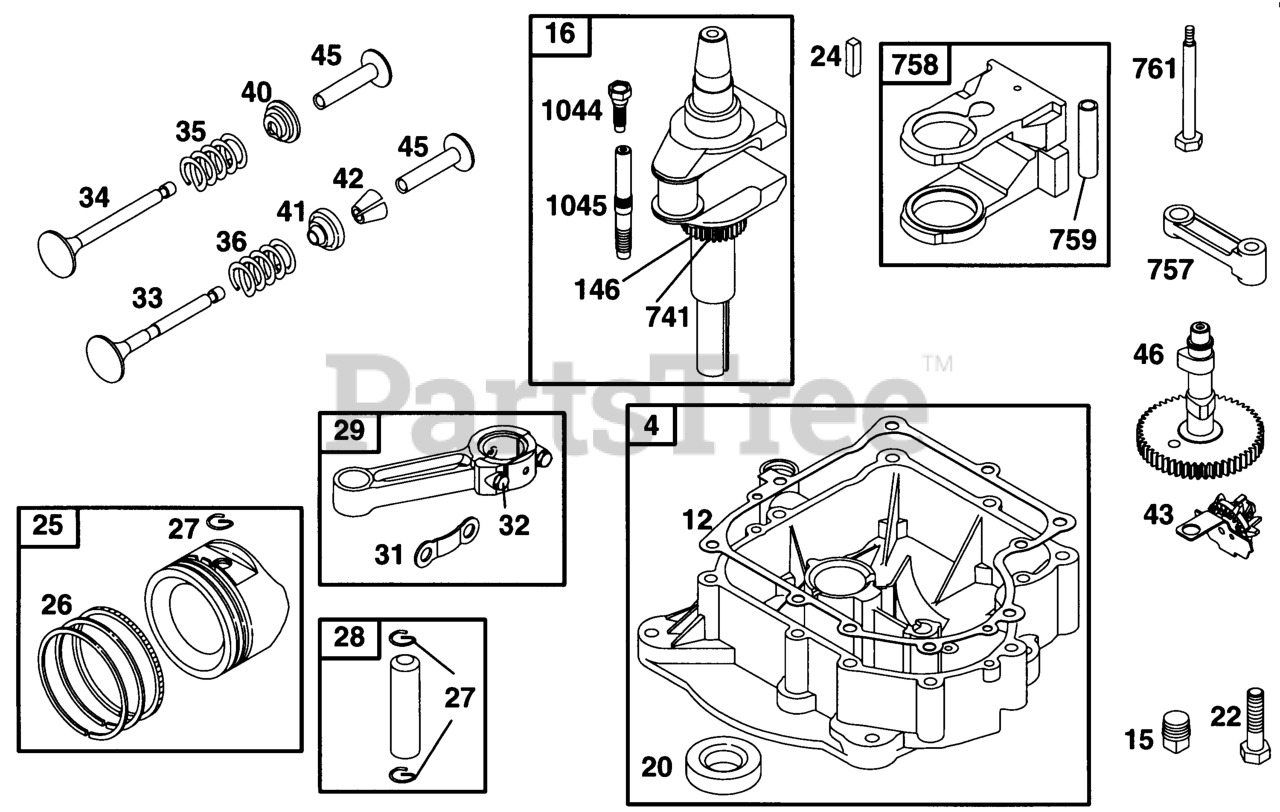

285707-0604-A1 - Briggs & Stratton Vertical Engine Piston Grp, Sump, Crank, Cam Parts Diagram

Vertical Engine

Piston Grp, Sump, Crank, Cam Parts Diagram

  • Title

4

Briggs & Stratton 494238

Sump-Engine

$

$

Not available

12

Briggs & Stratton 271916

Gasket, Crankcase (.015")
(Superseded to 692226)

Note: Included in Gasket Set-Part Number 494241.

$6.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 271996

Gasket, Crankcase (.009" Thick)
(Superseded to 692405)

Note: Included in Gasket Set-Part Number 494241.

$6.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271997

Gasket, Crankcase (.005" Thick)
(Superseded to 692406)

Note: Included in Gasket Set-Part Number 494241.

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94239

Plug, Pipe (Standar (Square Head)
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 495162

Crankshaft
(Superseded to 693944)

$246.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

Note: Included in Gasket Set-Part Number 494241.

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94624

Screw-Hex.
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391285

Piston/Ring Kit (Std.)
(Superseded to 499956)

$

$

Not available

25

Briggs & Stratton 391287

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 391288

Piston/Ring Kit (.020" O.S.)
(Superseded to 499958)

$158.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 391289

Piston/Ring Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 391780

Ring, Piston Kit (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391781

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 391782

Ring, Piston Kit (.020" O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391783

Ring, Piston Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 392331

Ring Set-Std Chr

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston 005 (.005 O.S.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490348

Rod-Connecting (Standard)

$50.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490469

Rod-Connecting (.020" Undersize)
(Superseded to 495490)

$

$

Not available

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 94671

Screw-Hex.
(Superseded to 691133)

$5.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262246

Valve-Exhaust
(Superseded to 262246S)

$

$

Not available

34

Briggs & Stratton 262247

Valve-Intake
(Superseded to 262247S)

$

$

Not available

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 490815

Slinger-Oil
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 262248

Tappet-Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212897

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94196

Key-Woodruff
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 262932

Gear-Timing
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

Link-Counterweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 399891

Counterweight Assy.
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 230787

Pin-Piston Counterweight
(Superseded to 691239)

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 94593

Screw-Hex.
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

Screw-Shoulder
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

1045

Briggs & Stratton 231828

Extension-Crankshaft
(Superseded to 691779)

$47.99

$

Usually ships in 2-12 days
