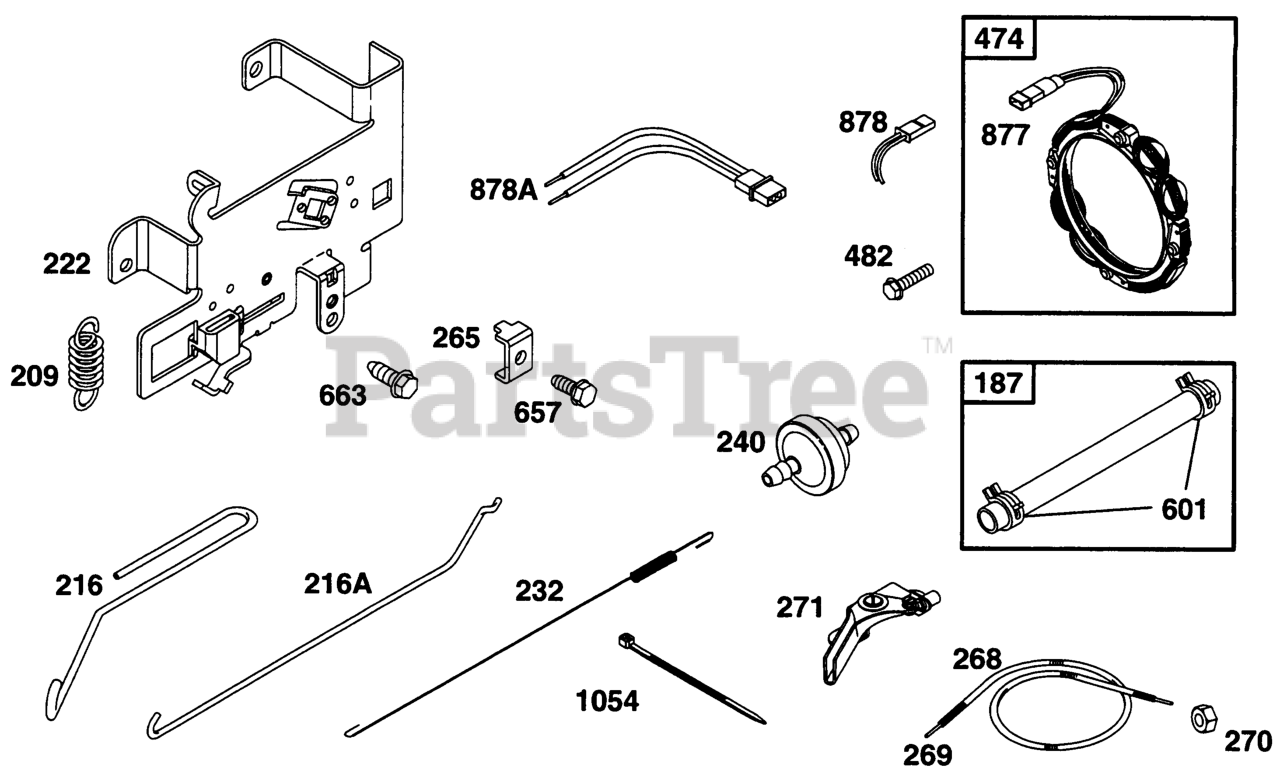

285707-0604-A1 - Briggs & Stratton Vertical Engine Controls, Elect Parts Diagram

Vertical Engine

Controls, Elect Parts Diagram

  • Title
187

Briggs & Stratton 299146

Line-Fuel (28" Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260871

Spring, Governor (For 2700 To 3300 R.p.m.)
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

216A

Briggs & Stratton 262767

Link-Mechanical Governor
(Superseded to 691841)

$9.49

$

In Stock, Qty 13

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 495611

Plate, Control Assy (Choke A Matic)
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 6

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94620

Screw, Tapping Hex
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878A

Briggs & Stratton 399916

Alternator Connecto (Regulated-16 Amp)

$12.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

1054

$4.49

$

Usually ships in 2-12 days

0
