2851 (UT-26307) - Green Machine Edger Attachment (1996-01) Edger Attachment Parts Diagram

Edger Attachment

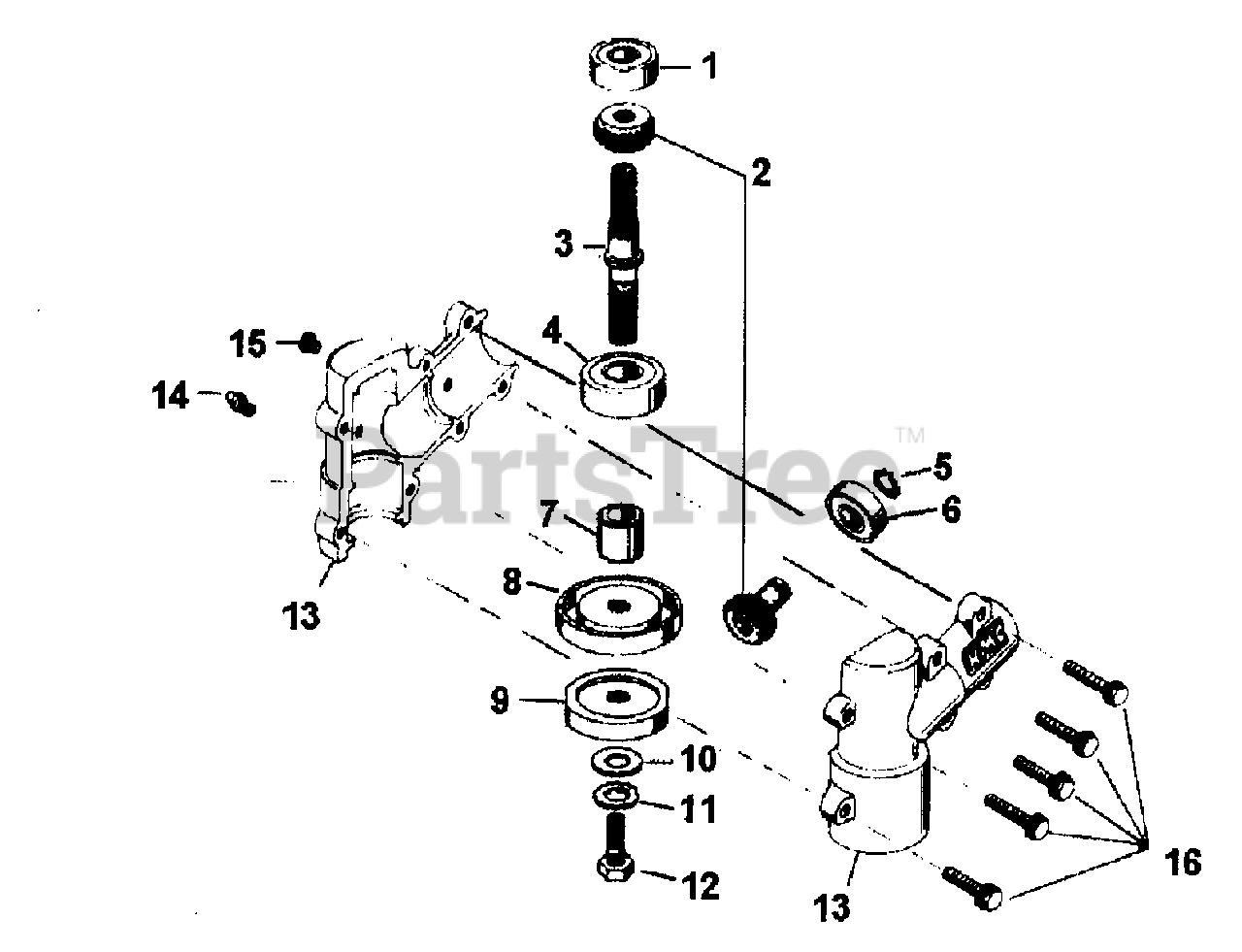

Edger Attachment Parts Diagram

  • Title

Homelite GM270303

GEARCASE ASSY, COMPLETE
(Superseded to UP05308)

$191.99

$

Usually ships in 3-7 days

0

1

Homelite GM070027

BEARING
(Superseded to UP05816)

$

$

Not available

2

Homelite GM190609

GEAR SET

$79.99

$

Usually ships in 3-7 days

0

3

Homelite GM226706

SHAFT, GEAR

$

$

Not available

4

Homelite GM070002

BEARING

$

$

Currently unavailable

5

Homelite GM060020

RING
(Superseded to 09151)

$

$

Not available

6

Homelite GM070026

BEARING
(Superseded to UP06386)

$

$

Not available

7

Homelite GM226705

COLLAR

$

$

Currently unavailable

8

Homelite GM300070

HOLDER A

$

$

Not available

9

Homelite GM300075

HOLDER B
(Superseded to UP06798)

$9.99

$

Usually ships in 3-7 days

0

10

Homelite GM041003

WASHER, FLAT

$

$

Not available

11

Homelite GM040007

WASHER, LOCK
(Superseded to UP06519)

$

$

Not available

12

Homelite GM300080

BOLT
(Superseded to UP08260)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

13

Homelite GM270306

HOUSING SET

$

$

Currently unavailable

14

Homelite GM286710

FITTING, ZERK

$

$

Not available

15

Homelite 82459

SCREW, SELF TAPPING

Note: Torque Specs: 35-55 In/Lbs; 4-5 Nm

$

$

Not available

16

Homelite GM011309

SCREW, SELF TAPPING
(Superseded to UP07929)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
